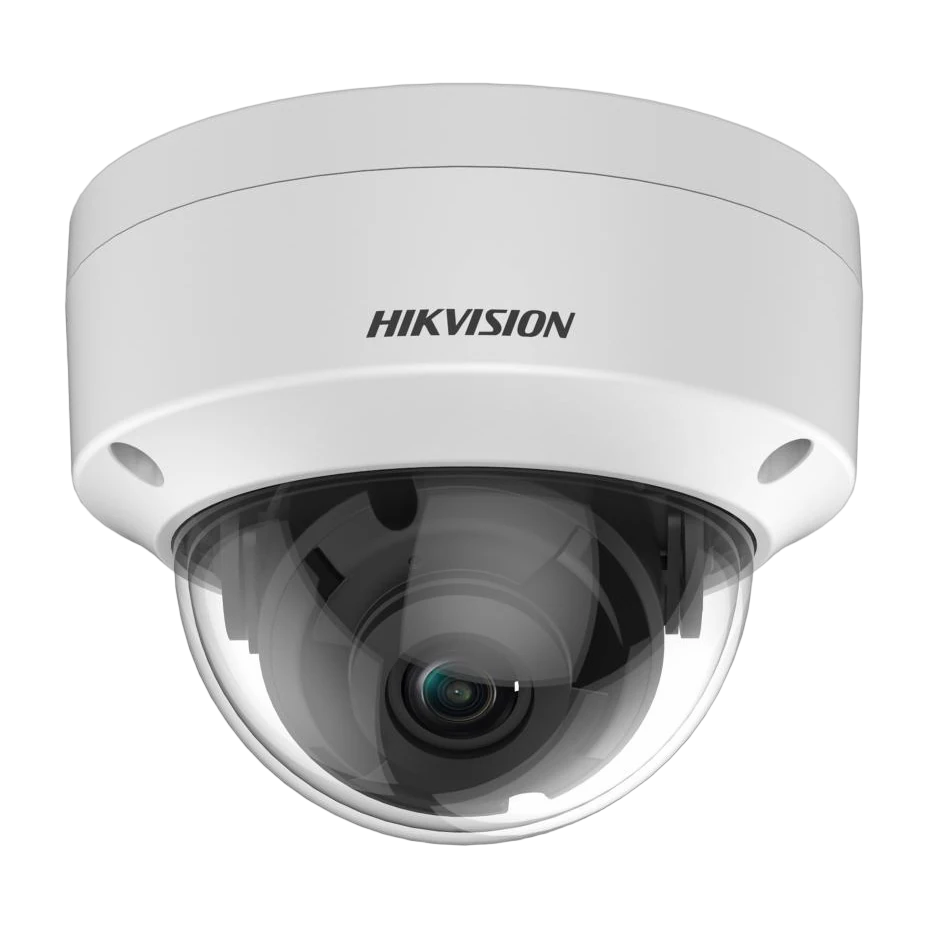

DS-2CE57H0T-VPITF(C) Hikvision Dome Analogue Camera

The Hikvision DS-2CE57H0T-VPITF(C) is a 5MP fixed vandal dome Turbo HD camera designed for reliable surveillance in challenging outdoor environments. It uses a 5MP CMOS image sensor delivering up to 2560 (H) × 1944 (V) resolution. For low-light performance, the camera features EXIR 2.0 advanced infrared technology with an IR distance of up to 20 m, providing illumination in complete darkness (0 Lux with IR). The camera supports Day/Night operation with ICR and offers Auto/Color/BW switching. Image quality controls include Digital WDR, DNR, smart IR, and adjustable brightness, sharpness, mirror, and Smart IR settings. The lens is fixed (available in 2.8 mm, 3.6 mm, or 6 mm variants), with the datasheet listing corresponding horizontal/vertical/diagonal fields of view.

For durability and weather protection, the housing is metal and is rated IP67 for water and dust resistance and IK10 for vandal protection. The camera provides switchable 4-in-1 analog outputs—TVI/AHD/CVI/CVBS—enabling compatibility with a wide range of Turbo HD and legacy systems. It operates on 12 VDC ±25% with a maximum power consumption of 4.3 W. With operating conditions from -40 °C to 60 °C and humidity up to 90% (non-condensation), it is suited for long-term outdoor installations.
