DS-2CE57U1T-VPITF Hikvision Dome Analogue Camera
Product Overview

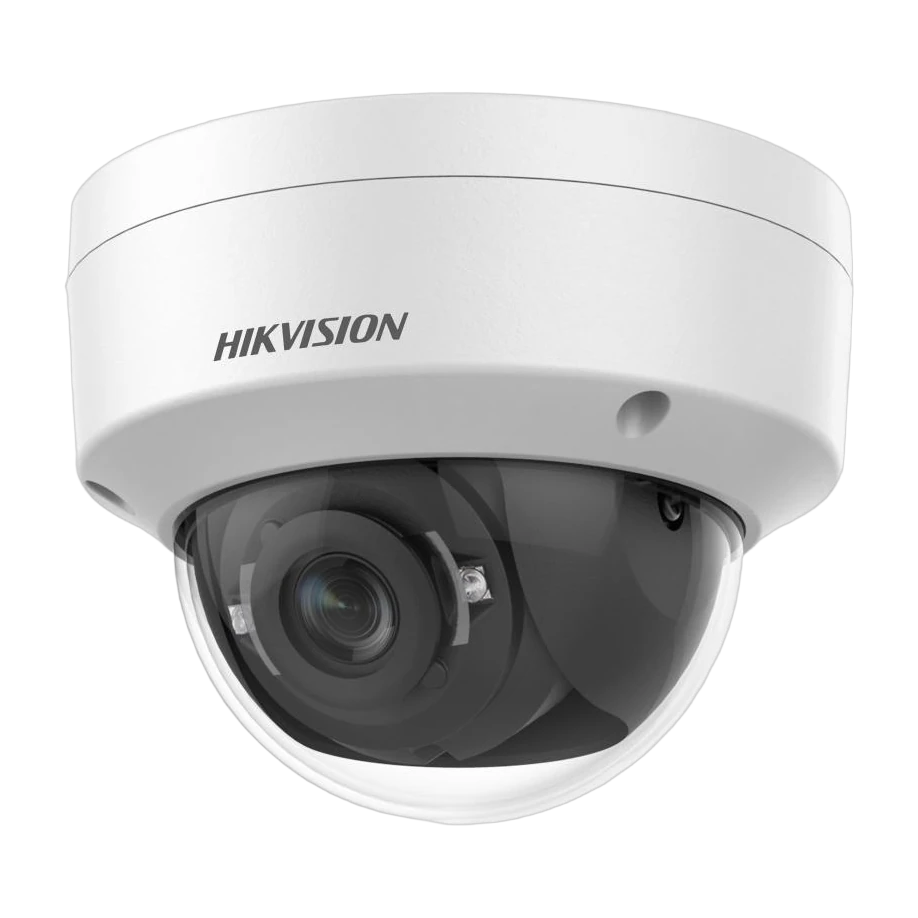

The Hikvision DS-2CE57U1T-VPITF is an 8MP dome Turbo HD analog camera designed for high-detail surveillance in outdoor and challenging environments. It uses an 8.29 megapixel progressive scan CMOS sensor, providing a maximum resolution of 3840 (H) × 2160 (V). For low-light performance, the camera features EXIR 2.0 advanced infrared technology with a stated IR supplement range of up to 30 m, delivering 0 Lux operation with IR enabled. A built-in IR cut filter supports Day & Night operation (Auto/Color/BW).
The camera is available in multiple fixed focal length lens options (2.8 mm, 3.6 mm, 6 mm), offering horizontal FOV values of 102.2° (2.8 mm), 79° (3.6 mm), and 50.8° (6 mm). It also includes digital WDR (digital WDR) alongside BLC/HLC image enhancement and 2D DNR for cleaner images under varying lighting conditions.
For flexible deployment, it provides a switchable video output supporting TVI/AHD/CVI/CVBS, plus 1 HD analog output. Physical protection is rated IP67 for water and dust resistance and IK10 for vandal resistance. The camera operates on 12 VDC (±25%) with a maximum power consumption of 5.3 W and is suitable for temperatures from -40 °C to 60 °C.
Key Features
- 8MP dome camera with 8.29 MP progressive scan CMOS sensor
- Max resolution 3840 × 2160
- EXIR 2.0 advanced infrared with up to 30 m IR range
- Zero Lux with IR; IR cut day/night filter (Auto/Color/BW)
- Weather resistant and vandal proof: IP67 and IK10
- 4-in-1 switchable analog output: TVI/AHD/CVI/CVBS
- Fixed focal length lens options: 2.8 / 3.6 / 6 mm
- Digital WDR (digital WDR), BLC/HLC, and 2D DNR
- Adjustable pan/tilt/rotate: Pan 0°–355°, Tilt 0°–75°, Rotate 0°–355°
- 12 VDC power (max 5.3 W)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
3840 (H) × 2160 (V) (8MP).
Up to 30 m IR distance.
Yes. It includes an IR cut filter with Day/Night Mode Auto/Color/BW.
Switchable TVI/AHD/CVI/CVBS, with 1 HD analog output.
Yes. It is rated IP67 (water/dust resistant) and IK10 (vandal proof).
12 VDC (±25%), max 5.3 W.
