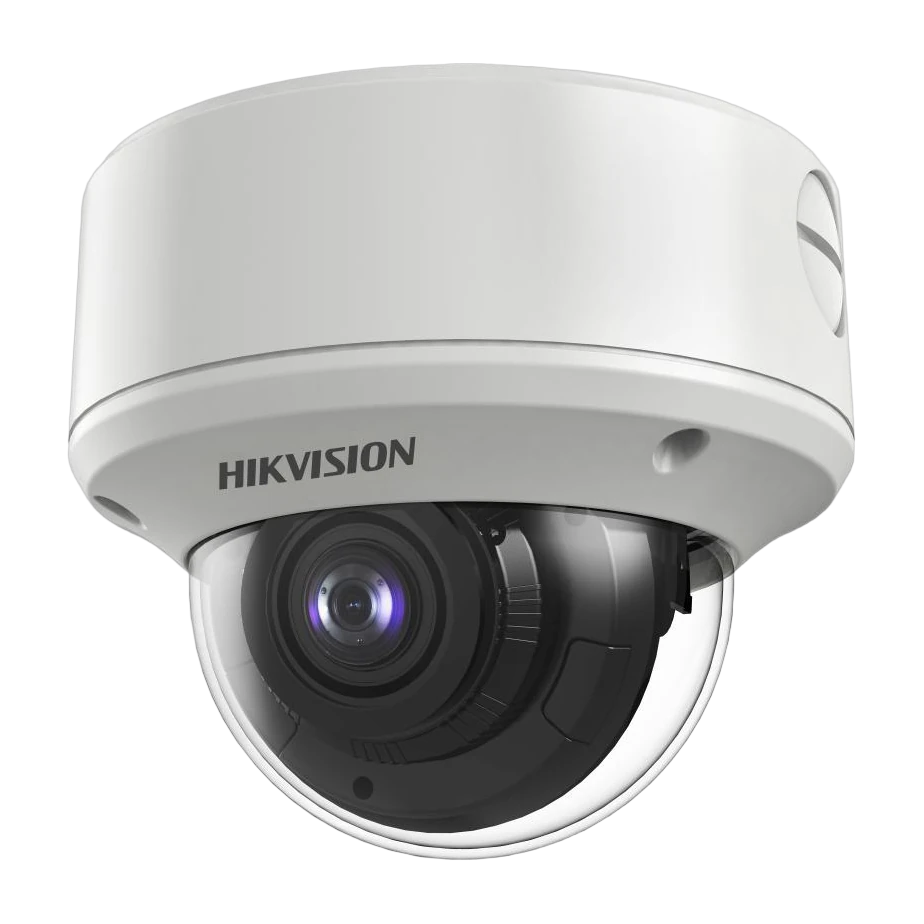

DS-2CE59U1T-AVPIT3ZF Hikvision Dome Analogue Camera
Product Overview
The Hikvision DS-2CE59U1T-AVPIT3ZF is an 8MP vandal-proof, motorized varifocal dome camera designed for high-resolution surveillance with flexible framing and strong outdoor durability. Powered by 9.6–14.4 VDC or 19.2–28.8 VAC and built with a metal enclosure, it delivers up to 3840 (H) × 2160 (V) resolution using a progressive scan 8.29 MP CMOS sensor. The lens is motorized and automatically focuses during zooming in or out, helping you dial in coverage without manual refocusing. For wide coverage control, the horizontal FOV spans approximately 108.1° to 45.6°.
For low-light monitoring, the camera features EXIR 2.0 advanced infrared technology with an IR illumination range up to 60 m. It supports day/night operation with an IR cut filter and offers Auto/Color/BW switching modes. Image quality enhancements include digital WDR, BLC/HLC, and 2D DNR, alongside adjustable settings such as brightness, sharpness, AGC, and mirror.
The DS-2CE59U1T-AVPIT3ZF is also highly installation-friendly, offering a 4-in-1 analog video output that is switchable between TVI/AHD/CVI/CVBS (plus 1 HD analog output). Built for demanding environments, it is IP67 weather and dust resistant and vandal proof to IK10, making it suitable for exterior perimeter protection, entrances, and other high-risk locations.
Key Features
- 8 MP dome camera (8.29 megapixel progressive scan CMOS)
- Motorized varifocal lens with automatic focus when zooming in/out
- EXIR 2.0 advanced infrared technology with up to 60 m IR distance
- Day & night with IR cut filter; Auto/Color/BW modes
- Digital WDR
- BLC/HLC image enhancement
- 2D DNR noise reduction
- 4-in-1 switchable TVI/AHD/CVI/CVBS (1 HD analog output)
- Weather and dust resistant IP67 and vandal proof IK10
- Pan/Tilt/Rotate adjustment: Pan 0°–355°, Tilt 0°–75°, Rotate 0°–355°
- Operating temperature: -40 °C to 60 °C
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 3840 (H) × 2160 (V).
Yes. The lens focuses automatically when zooming in or out.
It uses EXIR 2.0 advanced infrared technology.
The IR supplement light range is up to 60 m.
Yes. It is IP67 water and dust resistant.
It supports 4-in-1 switchable TVI/AHD/CVI/CVBS.
