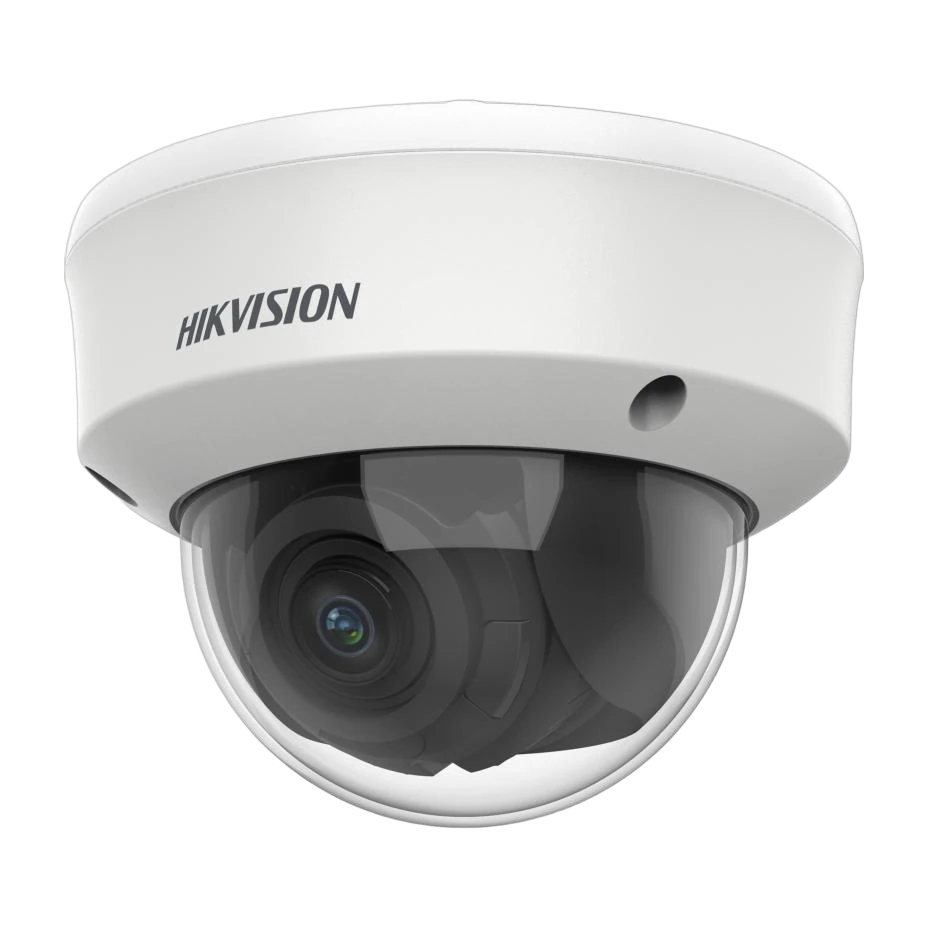

DS-2CE5AD0T-VPIT3F(C) Hikvision Dome Analogue Camera
Product Overview
The Hikvision DS-2CE5AD0T-VPIT3F(C) is a 2MP vandal-proof varifocal dome Turbo HD camera designed for reliable day and night monitoring in demanding outdoor environments. It captures 1920×1080 resolution video and supports multiple analogue output formats through a single switchable port, including TVI / AHD / CVI / CVBS, making it flexible for different DVR systems.
The camera uses a 2.7 mm to 13.5 mm varifocal lens to deliver adjustable field of view, enabling installers to fine-tune coverage without changing hardware. For challenging lighting scenes, it includes digital WDR (Wide Dynamic Range) and day/night operation with ICR. Auto/Color/BW modes help optimize image appearance across varying illumination conditions.
Night performance is enhanced with IR illumination, providing up to 40 m IR distance for bright night imaging. It also supports Smart IR, helping maintain image quality as targets move through different ranges. Additional imaging controls include AGC, 2D DNR (noise reduction), and AE features such as DWDR, BLC, HLC, and Global.
For durability, the camera is rated IP67 for water and dust resistance and IK10 for vandal resistance, making it suitable for secure installations such as parking areas, entrances, and perimeter monitoring. Power is 12 VDC with maximum consumption of 5 W, operating from -40°C to 60°C.
Key Features
- 2MP (1920×1080) imaging
- 2.7 mm to 13.5 mm varifocal lens
- Up to 40 m IR distance with Smart IR
- One port with switchable TVI/AHD/CVI/CVBS outputs
- Digital WDR for challenging lighting
- Day/night operation with ICR
- Digital noise reduction (2D DNR)
- IP67 water & dust resistance and IK10 vandal resistance
- Metal main body with plastic cover
- Pan 0° to 355°, Tilt 0° to 75°
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The camera supports 1920×1080 resolution (2 MP), depending on the signal system.
It uses a 2.7 mm to 13.5 mm varifocal lens with horizontal FOV 100° to 30° and vertical FOV 52° to 17° (diagonal 116° to 34.5°).
Yes. It has IR illumination with up to 40 m IR distance for night imaging.
The camera offers a switchable video output: TVI / AHD / CVI / CVBS.
Yes. It is rated IP67 for water and dust resistance and IK10 for vandal resistance.
Power is 12 VDC ±25% with max consumption of 5 W, and it operates from -40°C to 60°C (90% humidity or less, non-condensing).
