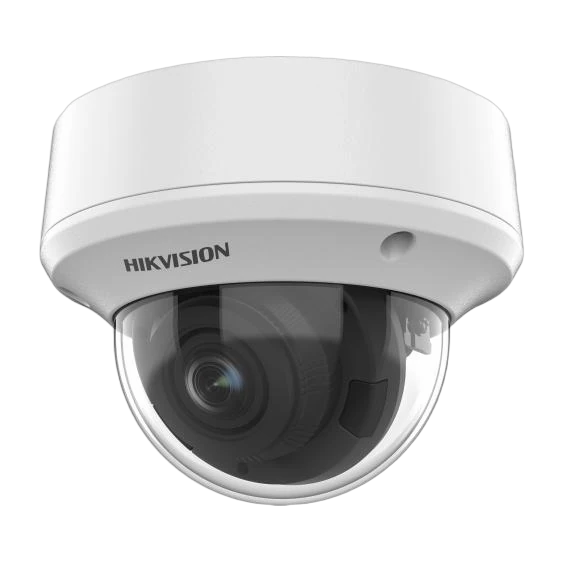

DS-2CE5AH0T-VPIT3ZE(C) Hikvision Dome Analogue Camera
Product Overview
The DS-2CE5AH0T-VPIT3ZE(C) is a Hikvision Turbo HD vandal-proof dome analogue camera designed for reliable 24/7 surveillance in harsh environments. It delivers 5 MP imaging with a resolution of 2560 × 1944, supporting multiple frame rates including 5M @ 20 fps and 1080p options up to 30 fps (PAL/NTSC dependent). The camera features a 2.7 mm to 13.5 mm motorized varifocal lens, providing flexible framing and field-of-view adjustment for changing scene requirements.
For night performance, the camera uses an IR cut filter with day/night capability and provides IR illumination up to 40 m for bright monochrome night imaging. Minimum illumination is specified as 0.01 Lux with AGC on (at F1.6) and 0 Lux when using IR.
The housing is built to resist tampering and weather: it is rated IP67 for water and dust resistance and IK10 for vandal resistance. Wide Dynamic Range is supported via digital WDR. Additional image features include Smart IR, sharpness control, 2D DNR (noise reduction), and selectable day/night modes (Auto/Color/BW).
With analog HD output (1 HD analog output), PoC (Power over Coax) operation at 12 VDC (±15%) is supported, and the unit consumes a maximum of 7.4 W. Pan, tilt, and rotation angle adjustments enable fine positioning after installation.
Key Features
- 5 MP CMOS image sensor
- 2560 × 1944 resolution
- Turbo HD / HD analog output (1 HD analog output)
- 2.7 mm to 13.5 mm motorized varifocal lens
- Field of view: horizontal 95° to 26°, vertical 72° to 20°, diagonal 126° to 33°
- Digital WDR (Wide Dynamic Range)
- Day/Night modes: Auto/Color/BW (Black and White)
- IR illumination up to 40 m; Min. illumination 0.01 Lux (F1.6, AGC ON) / 0 Lux with IR
- IR cut filter; Smart IR support
- 2D DNR (Noise Reduction)
- Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
- IP67 water/dust resistance and IK10 vandal resistance
- Metal material construction
- PoC power via coax supported; 12 VDC ±15%; max 7.4 W
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
2560 × 1944 (5 MP).
A 2.7 mm to 13.5 mm motorized varifocal lens.
Up to 40 m.
Yes. Day/Night Mode is Auto/Color/BW (Black and White).
IP67 (water and dust resistant) and IK10 (vandal resistant).
1 HD analog output.
