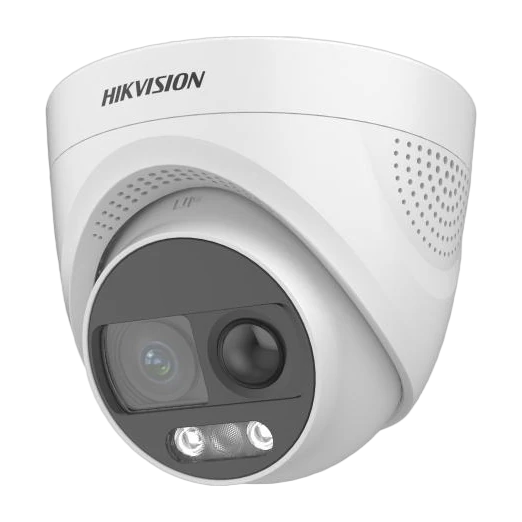

DS-2CE72KF3T-PIRXO Hikvision Turret Analogue Camera

SKU: DS-2CE72KF3T-PIRXO Category:
8MP
Resolution
ColorVu
Night Vision
20m
Night Vision Range
analogue camera
Device Type

Product Overview

The Hikvision DS-2CE72KF3T-PIRXO is a 3K ColorVu PIR siren fixed turret (DS-2CE series) analog camera designed for 24/7 color surveillance. With a 3K CMOS sensor offering up to 2960 × 1665 resolution, it delivers high-detail images for monitoring entrances, driveways, and perimeter areas. For challenging lighting conditions, it supports true 130 dB WDR to help maintain clear visibility in strong backlight scenes. Image quality is further enhanced using 3D DNR for cleaner, sharper footage.

Built-in white light illumination provides bright night imaging with a supplement light range of up to 20 m, and Smart Supplement Light support helps maintain consistent exposure. The camera includes passive infrared (PIR) detection to sense human body presence at a PIR range of 11 m (110° angle), and can trigger an alarm using an active strobe light and audio warning to deter intruders.

For installation and durability, the unit is rated IP67 for water and dust resistance and is constructed with a metal front cover. It also includes a built-in speaker for high quality audio, supporting secure, local alarm functions. The camera provides 1 HD analog video output and supports adjustable lens options with fixed 2.8 mm or 3.6 mm focal lengths (depending on the model configuration), making it suitable for fixed-field monitoring applications.

Key Features

  • 3K CMOS sensor, max resolution 2960 × 1665
  • 24/7 color imaging (Day & Night 24/7 Color Imaging)
  • 130 dB true WDR for clear images against strong backlight
  • 3D DNR/2D DNR for reduced noise and sharper images
  • Fixed focal lens (2.8 mm or 3.6 mm) with wide viewing fields
  • Built-in white light illuminator up to 20 m for bright night imaging
  • Smart Supplement Light support
  • PIR detects human body presence (range 11 m, angle 110°)
  • Active strobe light and audio alarm to warn intruders
  • Built-in speaker for high quality audio
  • Water and dust resistant IP67
  • HD analog output: 1 output (video output)
  • Supports privacy masks (4 programmable privacy masks) and motion detection (4 programmable areas)

Watch Product Videos

Watch real demos, setup guides, night-vision tests, and feature highlights for this model.

Downloads

Access datasheets, manuals, and user guides for this product.

File
Action
Data Sheet PDF

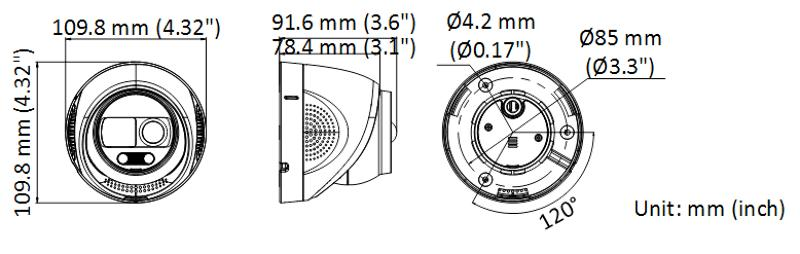

Dimensions PNG

Where to Find This Product

View trusted supplier listings, product references, and availability status for this model.

Dynamic CCTV Code: DS-2CE72KF3T-PIRXO
Available
ADI Code: DS-2CE72KF3T-PIRXO
Available
