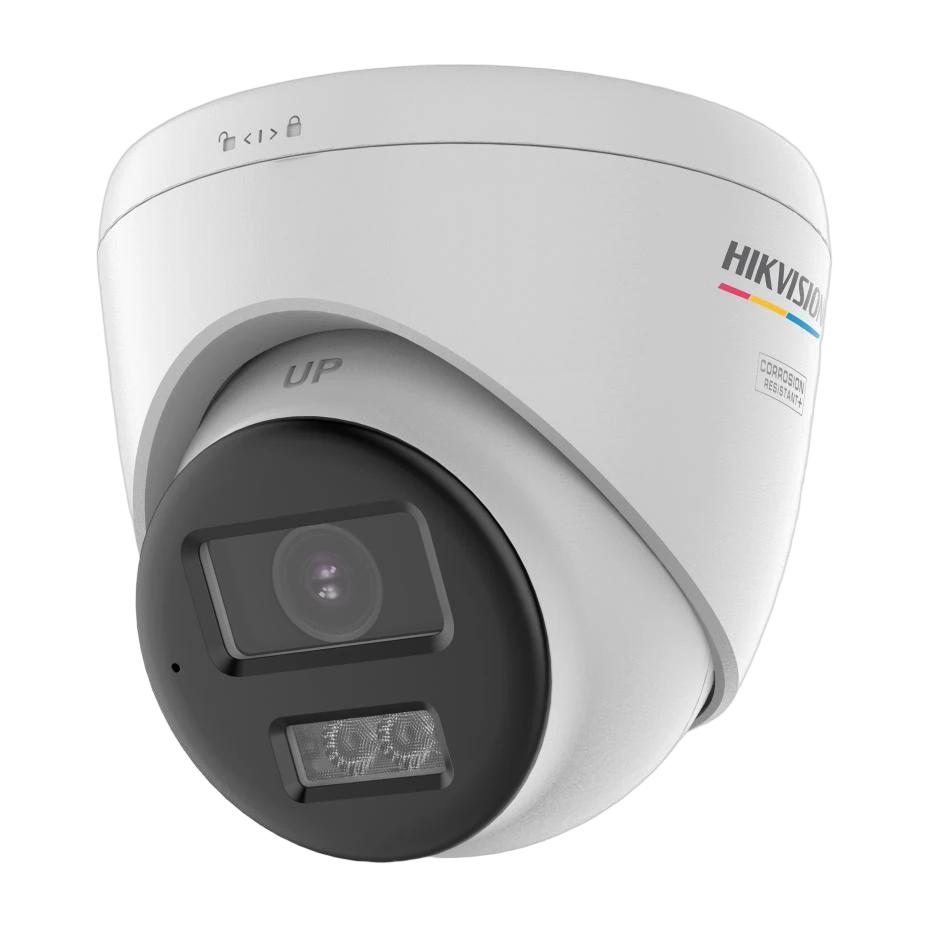

DS-2CE72UF3T-LSYE Hikvision Turret Analogue Camera
Product Overview
The Hikvision DS-2CE72UF3T-LSYE is a 4K fixed turret Turbo HD ColorVu camera designed for high-detail 24/7 monitoring with bright, natural-looking night imaging. It delivers a maximum resolution of 3840 (H) × 2160 (V) using a 4K CMOS sensor, supporting clear color performance with a wide aperture of F1.0. For challenging scenes, the camera incorporates true 130 dB WDR to maintain image clarity against strong backlight.
To improve nighttime visibility, the camera uses a Smart-Hybrid light system combining IR illumination and white light. The datasheet specifies up to 40 m IR range and up to 40 m white light range for bright night capture. A built-in microphone provides audio collection, with high-quality audio over coaxial cable.
Image quality is enhanced using 3D DNR noise reduction for clean and sharp images. Additional capabilities include configurable image parameters, BLC/HLC and global/WDR enhancement modes, and face AE/HLS options (as listed). Motion detection supports 4 programmable motion areas and privacy masking provides 4 programmable polygon privacy masks.
Built for demanding environments, the DS-2CE72UF3T-LSYE features IP67 water and dust resistance and NEMA 4X anti-corrosion protection (NEMA 250-2018), supporting reliable outdoor operation across a wide temperature range of -40 °C to 60 °C.
Key Features
- 4K (3840 × 2160) resolution with 4K CMOS sensor
- 24/7 color imaging with F1.0 aperture
- Smart-Hybrid light: Smart, IR, and white light
- True 130 dB WDR for clear imaging in strong backlight
- 3D DNR noise reduction for clean, sharp images
- Illumination up to 40 m IR and up to 40 m white light
- Built-in microphone and audio over coaxial (audio)
- Water and dust resistant IP67
- Anti-corrosion protection: NEMA 4X (NEMA 250-2018)
- 4 programmable motion areas
- 4 programmable polygon privacy masks
- Focal length options: 2.8 mm or 3.6 mm fixed lens
- Wide operating temperature: -40 °C to 60 °C
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
It supports up to 3840 (H) × 2160 (V) (4K).
Yes. The datasheet states 24/7 color imaging with an F1.0 aperture.
The camera features true WDR technology with ≥130 dB.
IR is up to 40 m and white light is up to 40 m.
Yes. It has a built-in microphone and audio over coaxial cable.
It is IP67 rated and has NEMA 4X anti-corrosion protection (NEMA 250-2018).
