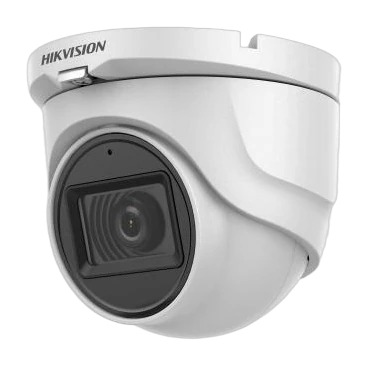

DS-2CE76D0T-ITMFS Hikvision Turret Analogue Camera
Product Overview
The Hikvision DS-2CE76D0T-ITMFS is a 2 MP coaxial audio Turbo HD camera designed for discreet on-site monitoring. It features a built-in microphone that transmits audio over the same coaxial cable as the video, helping enhance safety without additional complex cabling. The camera supports EXIR 2.0 advanced infrared technology with an IR distance of up to 30 m, providing night-time visibility while maintaining a compact dome form factor.
For image capture, the camera uses a 2 MP CMOS sensor with maximum resolution of 1920 (H) × 1080 (V). It operates in day/night modes using an ICR mechanism and supports automatic or color/black-and-white switching. Settings include Digital WDR (digital wide dynamic range) and image enhancement to help improve performance in challenging lighting conditions. The lens is available in fixed focal lengths of 2.8 mm, 3.6 mm, or 6 mm (M12 mount), giving different field-of-view options for various installation needs.
The DS-2CE76D0T-ITMFS is built for demanding environments with a metal body and IP67 water and dust resistance rating. It is rated for operating temperatures from -40 °C to 60 °C, making it suitable for outdoor installations. Multiple analogue video outputs are supported via a switchable interface: TVI/AHD/CVI/CVBS, offering flexible integration with compatible systems.
Key Features
- 2 MP coaxial audio camera
- Built-in microphone with audio transmitted over coaxial cable
- EXIR 2.0 advanced infrared technology with up to 30 m IR distance
- Day & night ICR
- Digital WDR
- Switchable TVI/AHD/CVI/CVBS video output
- Weather-resistant metal body with IP67 protection
- Operating temperature: -40 °C to 60 °C
- 12 VDC power supply (±25%)
- Lens options: 2.8 mm / 3.6 mm / 6 mm fixed focal length (M12)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
It has a built-in microphone and transmits audio over the coaxial cable.
EXIR 2.0 infrared technology with an IR range up to 30 m.
Max resolution is 1920 (H) × 1080 (V) (2 MP).
Switchable TVI/AHD/CVI/CVBS via the video output switch.
Yes. It is water and dust resistant with IP67 protection.
Fixed lenses are available in 2.8 mm, 3.6 mm, and 6 mm (M12 mount).
