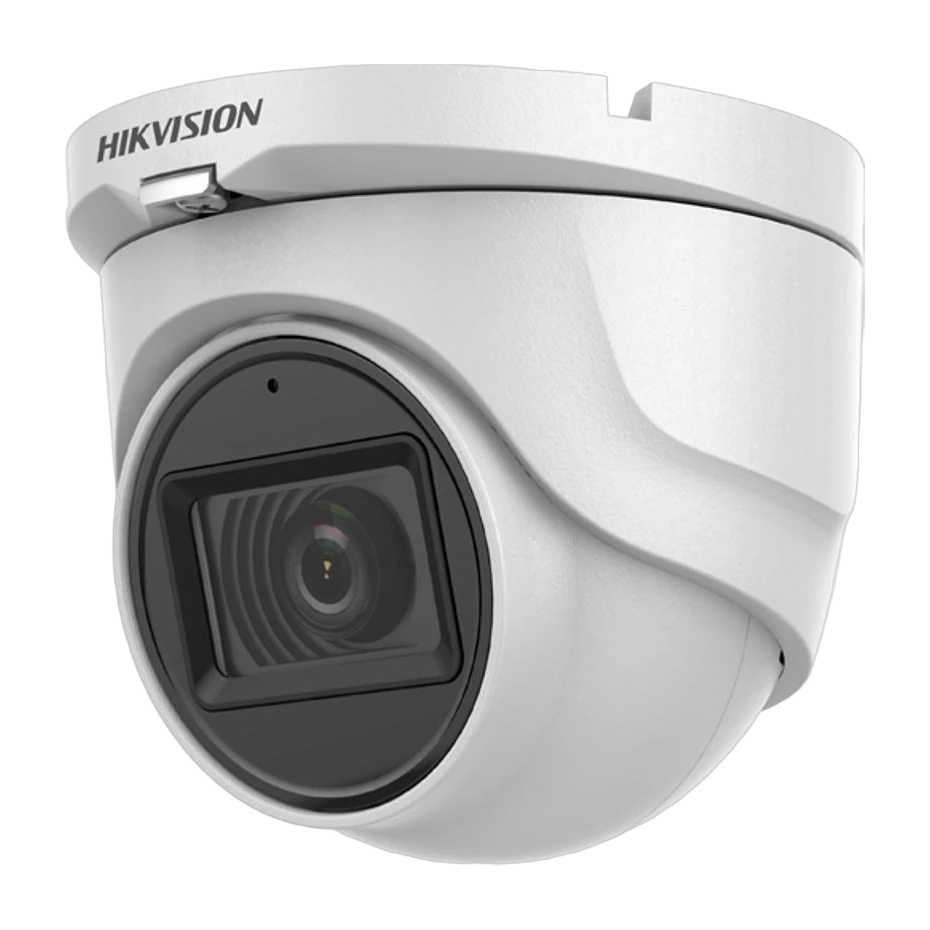

DS-2CE76H0T-ITMFS Hikvision Turret Analogue Camera
Product Overview
The Hikvision DS-2CE76H0T-ITMFS is a 5MP Turbo HD analogue audio camera designed for high-quality surveillance with day/night functionality. It uses a 5MP CMOS image sensor and delivers up to 2560 × 1944 maximum resolution. The camera supports Digital WDR to help maintain image visibility in high-contrast lighting conditions. For low-light performance, it features Smart IR illumination with an IR range up to 30 m, while switching Day/Night operation through ICR for automatic color or black-and-white modes.
The camera is built with fixed focal lens options (2.8 mm, 3.6 mm, or 6 mm), providing different field-of-view angles to match varied installation requirements. Image parameters include adjustable brightness and sharpness, mirroring support, and Smart IR control. Noise is reduced using 2D DNR, and exposure gain is supported via AGC.
For system integration, the device offers a switchable 4-in-1 video output supporting TVI/AHD/CVI/CVBS formats, giving flexibility across Turbo HD DVR/coaxial setups. The camera also includes Audio over coaxial cable with a built-in microphone for audio capture alongside video.
Constructed in metal and rated IP67 for weather and dust resistance, the DS-2CE76H0T-ITMFS is suitable for outdoor installations, operating in temperatures from -40° C to 60° C (humidity 90% or less, no condensation).
Key Features
- 5MP (2560 × 1944) CMOS sensor
- Digital WDR (D-WDR)
- Fixed lens options: 2.8 mm / 3.6 mm / 6 mm
- Smart IR up to 30 m
- Built-in microphone with audio over coaxial cable
- 4-in-1 switchable video output: TVI/AHD/CVI/CVBS
- Day/Night ICR with Auto/Color/BW modes
- 2D DNR noise reduction
- AGC support
- Metal body, IP67 weather resistance
- Operating temperature: -40° C to 60° C
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
Up to 2560 (H) × 1944 (V) (5MP).
Yes. It has Smart IR illumination.
Up to 30 m.
2.8 mm, 3.6 mm, or 6 mm fixed focal lenses.
Switchable 4-in-1 output: TVI/AHD/CVI/CVBS.
Yes. It is rated IP67 and operates from -40° C to 60° C (humidity 90% or less, no condensation).
