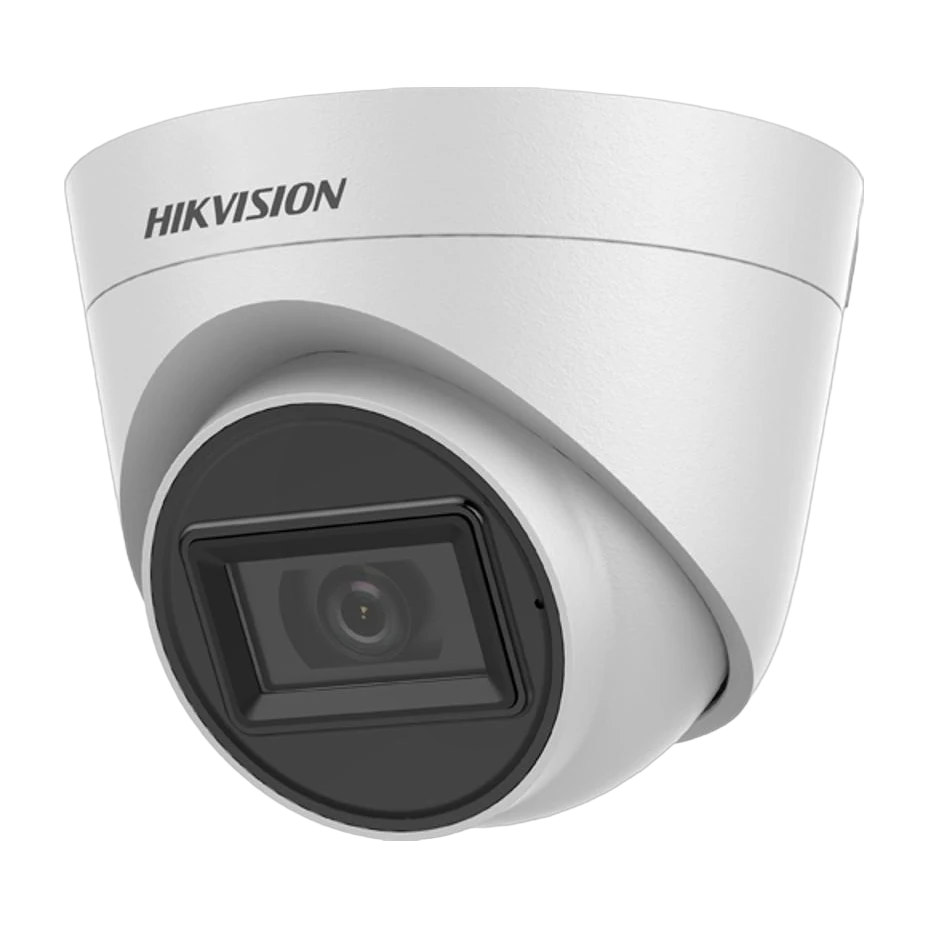

DS-2CE78H0T-IT3FS Hikvision Turret Analogue Camera
Product Overview
The Hikvision DS-2CE78H0T-IT3FS is a 5 MP Turbo HD dome-style audio camera built for reliable day/night surveillance with switchable analog video output. It delivers a maximum resolution of 2560 × 1944, supported by a digital WDR function to help maintain image quality under challenging lighting conditions. The camera features fixed-focal lenses available in 2.8 mm, 3.6 mm, and 6 mm options, enabling flexible field-of-view selection for different installation distances.
For low-light performance, the camera supports ICR day/night operation with automatic switching between color and black-and-white modes. Illumination is specified as 0.01 Lux with AGC on (at F2.0) and 0 Lux with IR, while Smart IR provides up to 40 m IR distance for consistent night coverage.
An additional benefit is audio support: the camera includes a built-in microphone with “audio over coaxial cable” capability. For installers, the 4 in 1 video output is switchable among TVI, AHD, CVI, and CVBS, simplifying system integration.
The DS-2CE78H0T-IT3FS is housed in a rugged enclosure rated IP67 for weather and dust resistance, and is designed to operate across a wide temperature range (-40°C to 60°C). It runs on 12 VDC and has a maximum power consumption of 3.7 W.
Key Features
- 5 MP (2560 × 1944) CMOS image sensor
- Digital WDR
- Fixed focal lens options: 2.8 mm / 3.6 mm / 6 mm
- Smart IR up to 40 m IR distance
- Built-in mic with audio over coaxial cable
- 4 in 1 switchable video output: TVI/AHD/CVI/CVBS
- Day/Night ICR (Auto/Color/BW modes)
- IP67 weatherproof rating
- Operating temperature: -40°C to 60°C
- 12 VDC ±25% power supply
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 2560 × 1944 (5 MP).
Yes. It supports Digital WDR.
Smart IR provides up to 40 m IR distance.
The camera has switchable output: TVI, AHD, CVI, and CVBS.
Yes. It has a built-in microphone and supports audio over coaxial cable.
The camera is rated IP67.
