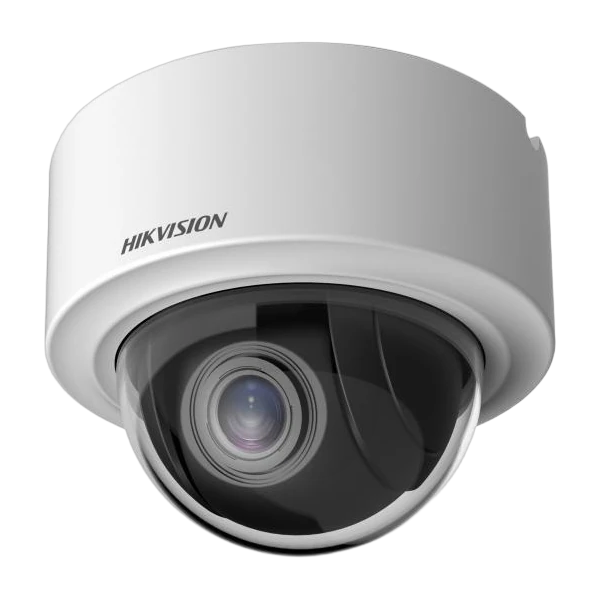

DS-2DE3404W-DE(T5) Hikvision PTZ Dome IP Camera
Product Overview
Hikvision DS-2DE3404W-DE(T5) is a 4 MP network mini PTZ dome camera designed for easy installation, adjustment and maintenance. Powered by PoE or 12 VDC, it supports remote monitoring and event-driven recording for improved outdoor security. The camera uses a 1/2.8″ progressive scan CMOS sensor to deliver 4 MP real-time resolution and includes 120 dB WDR for clear imaging against strong back lighting.
With pan and tilt control plus 4× optical zoom (16× digital), the DS-2DE3404W-DE(T5) helps you cover zones of interest in expansive areas by moving the camera and tightening focus on subjects. It also supports advanced day/night operation with an IR cut filter for more consistent performance across lighting conditions.
The camera includes smart detection features such as intrusion detection, line crossing detection, region entrance/exiting detection, motion detection, and exception handling including object removal and unattended baggage detection. Key events and objects can be recorded to support further forensic needs.
For durability, the DS-2DE3404W-DE(T5) is rated IP66 and includes surge/lightning protection. It supports multiple video streams, H.265/H.264 compression, up to 20 simultaneous live-view channels, and network storage with NAS (NFS/SMB/CIFS). Built-in memory card support (up to 256 GB via microSD) provides flexible recording options.
Key Features
- 4 MP real-time resolution with 1/2.8″ progressive scan CMOS sensor
- 120 dB WDR for clear imaging in strong backlight conditions
- Mini PTZ dome with pan/tilt monitoring of zones of interest
- 4× optical zoom; 16× digital zoom
- Day/Night operation with IR cut filter
- Smart event detections: line crossing, intrusion detection, region entrance/exiting, object removal, unattended baggage
- Motion detection, video tampering alarm, and alarm input/output exception handling
- PoE (802.3af) or 12 VDC power support
- IP66 water and dust resistance
- H.265+/H.265/H.264 video compression; supports multi-stream encoding
- NAS (NFS/SMB/CIFS) network storage and microSD card slot (up to 256 GB)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The camera supports up to 2560 × 1440 resolution (4 MP).
Yes. It supports 120 dB WDR.
It has 4× optical zoom and 16× digital zoom.
Pan movement range is 350°, and tilt movement range is 0° to 90°.
It supports 12 VDC and PoE (802.3af).
The camera is rated IP66.
