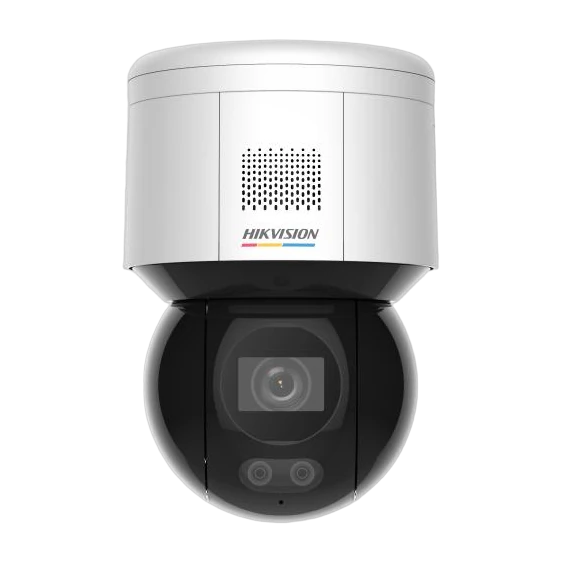

DS-2DE3A400BW-DE/W(T5) Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DE3A400BW-DE/W(T5) is a 4MP network PTZ (pan-tilt-zoom) camera designed for versatile indoor and outdoor surveillance. With a 1/1.8″ progressive scan CMOS sensor and up to 2560 × 1440 resolution, it supports up to 30 fps at 4MP in 60 Hz operation. The camera is suitable for environments such as malls, stores, parks, factories, scenic areas, and entrances/exits.
AcuSense technology with deep learning improves alarm quality by focusing on human and vehicle target classification. The system supports smart alerts and event triggers such as line crossing and intrusion, and it also includes face capture capability designed to detect and select the best face from up to 5 faces simultaneously.
For nighttime identification, the camera features a white light illuminator with a stated supplement light distance up to 30 m and 24/7 colorful imaging. Its optical design provides a 4 mm focal length with an F1.0 aperture and a wide viewing angle. Advanced imaging functions include 120 dB WDR, 3D DNR, HLC, and digital defog to help maintain image clarity across challenging lighting conditions.
The DS-2DE3A400BW-DE/W(T5) offers extensive PTZ control features including 350° pan movement, 0° to 90° tilt range, 300 presets, 3D positioning, scheduled tasks (including preset patrol and dome reboot/adjust), and a park action for automated monitoring. It supports PoE and has IP66 weather protection for outdoor use.
Key Features
- 4MP (up to 2560 × 1440) network PTZ camera
- AcuSense deep learning: human and vehicle target classification alarms
- Face capture: up to 5 faces detected and best face selection
- Linked audible and visual alarm with built-in microphone and speaker
- White light supplement illumination up to 30 m for 24/7 colorful imaging
- 120 dB WDR, 3D DNR, HLC, and digital defog
- PTZ: 350° pan, 0° to 90° tilt; configurable pan/tilt speeds
- 300 presets, 3D positioning, preset freezing, and scheduled tasks (preset/patrol, dome reboot/adjust, aux output)
- IP66 protection and 6000 V lightning protection, surge and voltage transient protection
- PoE (802.3at) support and built-in microSD/SDHC/SDXC slot up to 512 GB
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
It supports up to 2560 × 1440; at 60 Hz the main stream is up to 30 fps (2560 × 1440).
Yes. The camera supports 24/7 colorful imaging and uses white light, with supplement light distance up to 30 m.
It provides accurate human and vehicle target classification and alarm, and supports face capture using deep learning.
It detects up to 5 faces simultaneously and supports selecting and outputting the best face picture.
Pan range is 350° and tilt is 0° to 90°. It supports 300 presets.
Yes. It has IP66 protection and includes lightning protection, surge protection, and voltage transient protection.
