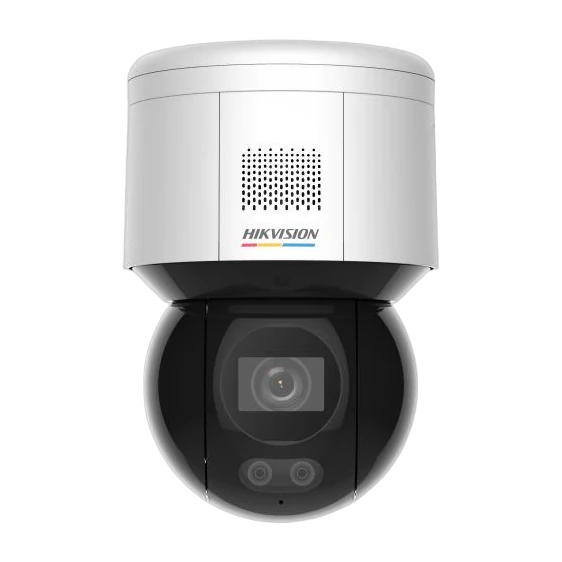

DS-2DE3A400BW-DE(T5) Hikvision PTZ Dome IP Camera

SKU: DS-2DE3A400BW-DE Category:
4MP
Resolution
ColorVu
Night Vision
30m
Night Vision Range
IP Camera
Device Type

Product Overview

The Hikvision DS-2DE3A400BW-DE(T5) is a 4MP network PTZ camera designed for a wide range of indoor and outdoor applications including malls, stores, parks, factories, and entrances/exits. Built on deep learning, it uses Hikvision AcuSense technology to focus on human and vehicle targets, improving alarm efficiency and effectiveness. The camera supports face capture with automatic selection of the best shot, detecting and capturing up to 5 faces simultaneously.

For low-light performance, it offers 24/7 colorful imaging and an integrated white light illuminator with a distance up to 30 meters, enabling color video even in darkness. Imaging quality features include 120 dB WDR, 3D DNR, and HLC, plus digital defog for clearer scenes in adverse conditions.

PTZ capabilities include 350° pan movement, 0° to 90° tilt, up to 300 presets, and proportional pan for flexible tracking. Advanced video settings support multiple streams and ROI with fixed regions. Networking is comprehensive with features such as NAS storage, broad protocol support, simultaneous live view up to 20 channels, and security options including HTTPS encryption and 802.1X authenticated access.

Built-in audio provides linked audible and visual alarms, featuring a microphone and speaker, and the camera supports alarm input/output and scheduled tasks including preset and patrol scan.

Key Features

  • 4 MP network PTZ camera for indoor and outdoor scenes (malls, stores, parks, factories, scenic areas, entrances/exits)
  • AcuSense deep learning classification focused on human and vehicle targets
  • Face capture: detects and captures up to 5 faces simultaneously with automatic best-shot selection
  • Linked audible and visual alarm with built-in microphone and speaker
  • Max resolution up to 2560 × 1440 at up to 30 fps
  • 24/7 colorful imaging with white light support (up to 30 m white light distance)
  • 120 dB WDR, 3D DNR, HLC, and digital defog
  • PTZ: 350° pan, 0° to 90° tilt, up to 300 presets, proportional pan
  • IP66 weather resistance and PoE (802.3at)
  • Compression: H.265+/H.265/H.264+ (main), H.265/H.264/MJPEG (sub/third), with SVC and ROI

Watch Product Videos

Watch real demos, setup guides, night-vision tests, and feature highlights for this model.

Downloads

Access datasheets, manuals, and user guides for this product.

File
Action
Data Sheet PDF

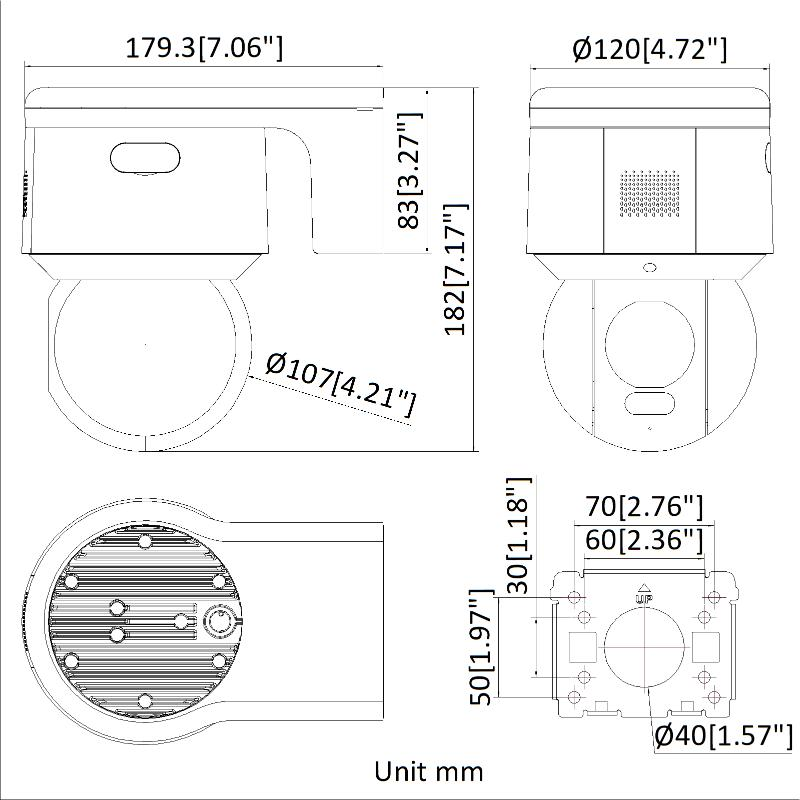

Dimensions PNG

Where to Find This Product

View trusted supplier listings, product references, and availability status for this model.

Dynamic CCTV Code: DS-2DE3A400BW-DE
Available
ADI Code: DS-2DE3A400BW-DE
Available
