Product Overview

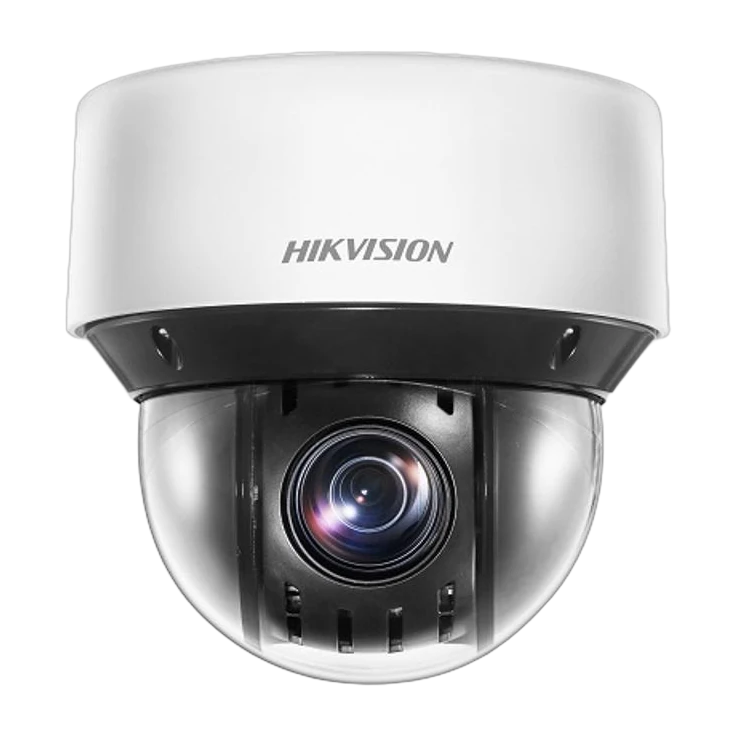

The Hikvision DS-2DE4A225IWG-E is a 2 MP network IR PTZ camera designed for wide-area, high-definition monitoring. It uses a 1/2.8″ progressive scan CMOS sensor and delivers up to 1920 × 1080 resolution with support for high frame rates up to 60 fps (under certain settings). With a 25× optical zoom lens (4.8 to 120 mm), the camera provides closer viewing of subjects across expansive scenes such as roads, railways, rivers, forests, airports, ports, parks, scenic spots, stations and large venues. For low-light performance, it features Powered-by-DarkFighter technology and an IR illuminator with a range of up to 50 m, helping maintain scene visibility at night. The camera also includes 120 dB WDR technology for clear imaging against strong back lighting. PTZ control enables pan and tilt monitoring of zones of interest, with extensive preset and scanning capabilities including 300 presets, patrol scans and pattern scans. Advanced deep learning functions support human and vehicle target classification, and face capture capability is included (up to 5 faces simultaneously). Built for outdoor installations, the DS-2DE4A225IWG-E offers IP66 weather and dust resistance, supports PoE (802.3at), and includes audio (1 in / 1 out) along with 2 alarm inputs and 2 alarm outputs for flexible surveillance integration.
Key Features
- 2 MP (up to 1920 × 1080) resolution and up to 60 fps (under certain settings)
- 1/2.8″ progressive scan CMOS sensor
- 25× optical zoom (4.8 to 120 mm)
- Powered-by-DarkFighter technology for excellent low-light performance
- 120 dB WDR for clear imaging in strong backlight
- IR illumination up to 50 m (850 nm)
- Pan 0° to 360° and tilt -5° to 90°
- 300 presets
- 8 patrols (up to 32 presets per patrol) and pattern scan support
- Deep learning: human and vehicle target classification
- Face capture: detects up to 5 faces simultaneously and outputs the best face picture
- Weather resistance: IP66
- PoE (802.3at) and 12 VDC power support
- Video compression: H.265+/H.265/H.264+ / H.264 with ROI (8 fixed regions)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowFrequently Asked Questions
It supports up to 2 MP resolution with a maximum resolution of 1920 × 1080.
The camera has 25× optical zoom (4.8 to 120 mm).
The IR illuminator provides an IR distance up to 50 m.
Yes. It supports 120 dB WDR.
Yes. It is water and dust resistant with an IP66 rating.
Yes. It focuses on human and vehicle target classification based on deep learning and includes face capture (up to 5 faces simultaneously).
