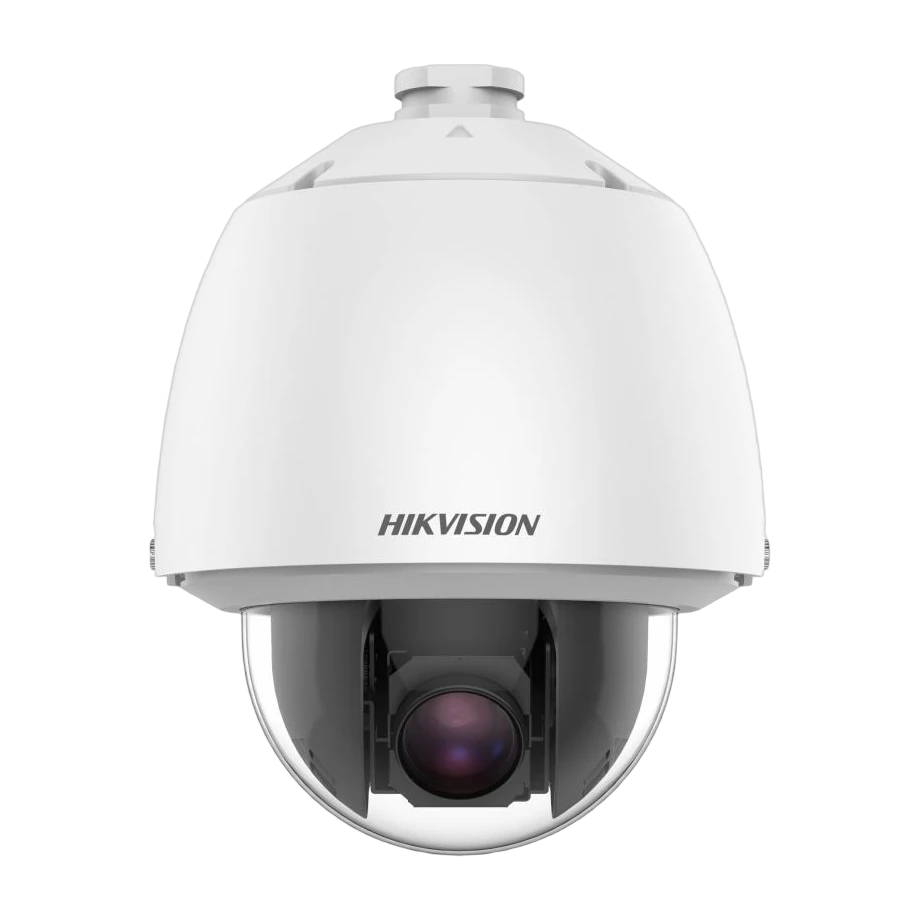

DS-2DE5225W-AE(T5) Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DE5225W-AE(T5) Network Speed Dome is a high-definition 2MP PTZ IP camera designed for long-range coverage and close-up detail across large outdoor areas. Featuring a 1/2.8-inch progressive scan CMOS sensor, it delivers crisp Full HD (1920 × 1080) images and strong performance in low-light conditions, powered by DarkFighter technology. The 25× optical zoom (with 16× digital zoom) helps bring distant subjects into clear view, making it well suited to applications such as roads, railways, airports, rivers, squares, parks, scenic areas, and other wide perimeter or site monitoring locations.
For challenging lighting scenarios, the camera includes Wide Dynamic Range (WDR 120 dB) plus HLC and BLC, alongside 3D DNR and digital defog to help improve visibility during backlight, glare, and mist conditions. Advanced imaging controls include regional exposure and regional focus. Connectivity and video delivery are supported via H.265+/H.265 compression for efficient bandwidth usage, with multiple streams available.
Built to withstand demanding environments, the dome is rated IP66 for water and dust resistance and IK10 for vandal resistance. It supports 24 VAC power and PoE (802.3at), and provides extensive PTZ capabilities including 300 presets, patrol and pattern scans, and scheduled tasks. With strong network security options and compatibility with Hikvision client software, this speed dome offers flexible, reliable operation for professional surveillance deployments.
Key Features
- 1/2.8-inch progressive scan CMOS sensor
- 2MP max resolution (1920 × 1080)
- Powered-by-DarkFighter technology for low-light performance
- 25× optical zoom, 16× digital zoom
- Wide Dynamic Range (WDR) 120 dB
- HLC and BLC
- 3D DNR
- Defog (digital)
- Regional exposure and regional focus
- Efficient H.265+/H.265 compression technology
- Multiple video streams (main/sub/third) with up to 25/30 fps depending on region
- Water and dust resistant (IP66) and vandal resistant (IK10)
- 24 VAC & PoE (802.3at) power support
- PTZ: 360° pan, tilt -5° to 90° with auto flip
- 300 presets; 8 patrols; 4 pattern scans
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 1920 × 1080 (2MP).
The camera provides 25× optical zoom (with optional 16× digital zoom).
Yes. It includes powered-by-DarkFighter technology for excellent low-light performance.
It supports WDR (120 dB), HLC, BLC, 3D DNR, and digital defog, plus regional exposure and regional focus.
It supports 24 VAC and PoE (802.3at).
The camera is rated IP66 for water/dust resistance and IK10 for vandal resistance.
