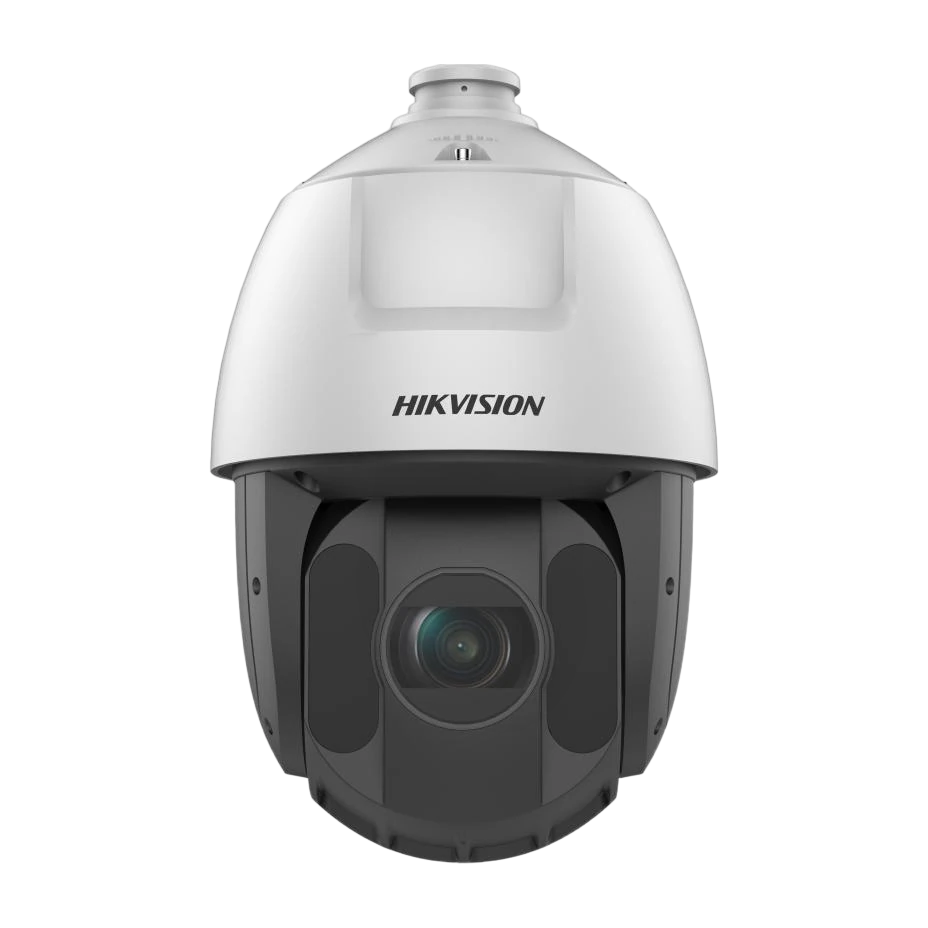

DS-2DE5425IW-AE(T5) Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DE5425IW-AE(T5) is a 4MP network IR speed dome PTZ camera designed for high-detail monitoring across wide areas. It uses a 1/2.8-inch progressive scan CMOS sensor to deliver up to 2560 × 1440 resolution. With a powerful 25× optical zoom lens (plus 16× digital zoom), the camera supports close-up viewing for applications such as roads, railways, airports, rivers, squares, parks, scenic spots, and large venues.
For smart detection, the camera focuses on human and vehicle targets classification using deep learning, helping improve the relevance of alerts and tracking. It also provides excellent night performance with Hikvision DarkFighter technology and IR illumination with an IR range up to 150 m, supporting expansive night scenes.
The DS-2DE5425IW-AE(T5) includes core imaging enhancements such as WDR (120 dB), HLC and BLC, 3D DNR, defog, and regional exposure/regular focus options for challenging lighting conditions. Video is efficiently compressed using H.265+/H.265 to reduce bandwidth while maintaining clarity. PTZ capabilities include pan 360°, tilt -15° to 90° (auto flip), configurable pan/tilt speeds, and extensive control functions like presets (300), patrol scans, pattern scans, and scheduled tasks. Power options include 24 VAC and PoE (802.3at), and the dome is rated IP66 for outdoor installation.
Key Features
- 1/2.8-inch progressive scan CMOS, 4MP (max 2560 × 1440)
- 25× optical zoom and 16× digital zoom
- Deep learning: human and vehicle target classification
- Powered-by-DarkFighter technology for low-light performance
- IR illumination with range up to 150 m
- WDR 120 dB, HLC, BLC, 3D DNR, defog
- Regional exposure and regional focus
- H.265+/H.265 compression
- PTZ: 360° pan; -15° to 90° tilt (auto flip); 300 presets
- IR cut filter with day/night support
- PoE (802.3at) and 24 VAC power options
- IP66 protection and TVS lightning/surge protection
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
It supports a maximum resolution of 2560 × 1440 (4MP).
The camera provides 25× optical zoom (with optional 25×; also supports 16× digital zoom).
Yes. It focuses on human and vehicle targets classification based on deep learning.
The IR distance is up to 150 m.
WDR is 120 dB.
It supports 24 VAC and PoE (802.3at).
