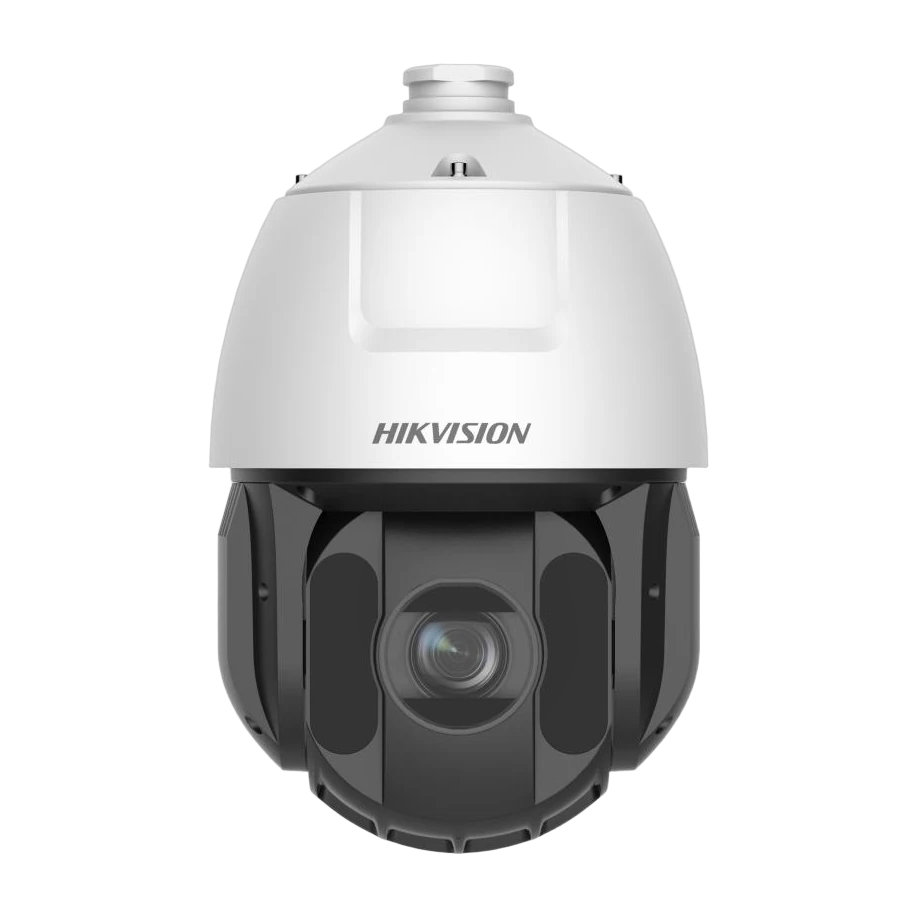

DS-2DE5425IWG-4G Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DE5425IWG-4G is a 4MP network IR speed dome PTZ camera designed for long-range monitoring with expansive night visibility. The camera features a 1/2.8″ progressive scan CMOS sensor with a maximum resolution of 2560 × 1440, delivering clear detail in both day and night scenes. For low-light imaging, it supports Color imaging down to 0.05 Lux and black-and-white operation to 0.01 Lux, with zero lux capability when using the built-in IR illumination.
With a powerful 25× optical zoom and 16× digital zoom, the dome provides wide-to-tele coverage, supported by precise PTZ control, presets, and scanning modes. The IR supplement light provides illumination up to 150 m, enabling effective long-distance night viewing. To improve reliability in harsh weather, the camera includes a built-in heating glass for defog performance and is rated IP66 for water and dust resistance. It also supports expandable onboard capabilities with built-in eMMC storage up to 256 GB.
Designed for power efficiency, it supports both performance mode and low power/sleep modes, with 3 W in low power and 0.3 W in sleep mode. Additional highlights include 360° pan, tilt from -15° to 90° with auto flip, and support for scheduled tasks such as preset, pattern scan, patrol scan, and dome reboot.
Key Features
- 4MP (2560 × 1440) network IR speed dome PTZ
- 1/2.8″ progressive scan CMOS sensor
- 25× optical zoom, 16× digital zoom
- Starlight/low-light performance: 0.05 Lux (color) and 0.01 Lux (B/W); 0 Lux with IR
- IR supplement light with up to 150 m illumination distance
- Built-in heating glass for effective defog
- Water and dust resistant: IP66
- Built-in eMMC storage up to 256 GB
- PTZ: 360° pan; tilt -15° to 90° (auto flip)
- 300 presets; 8 patrols (up to 32 presets each); 4 pattern scans
- Supports scheduled tasks (preset/pattern/patrol/auto/tilt/random/frame/panorama) and dome functions
- Power modes: 3 W in low power, 0.3 W in sleep mode; max 20 W
- 12 V 1 A reverse power supply; 12 VDC power
- Wi-Fi AP for short-distance debugging (AP mode only on Channel 11)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 2560 × 1440 (4MP).
The IR supplement light range is up to 150 m.
Yes. It has a built-in heating glass for effective defog.
It is rated IP66 for water and dust resistance.
It supports 25× optical zoom (plus 16× digital zoom).
It includes built-in eMMC storage up to 256 GB and supports microSD/microSDHC/microSDXC up to 256 GB.
