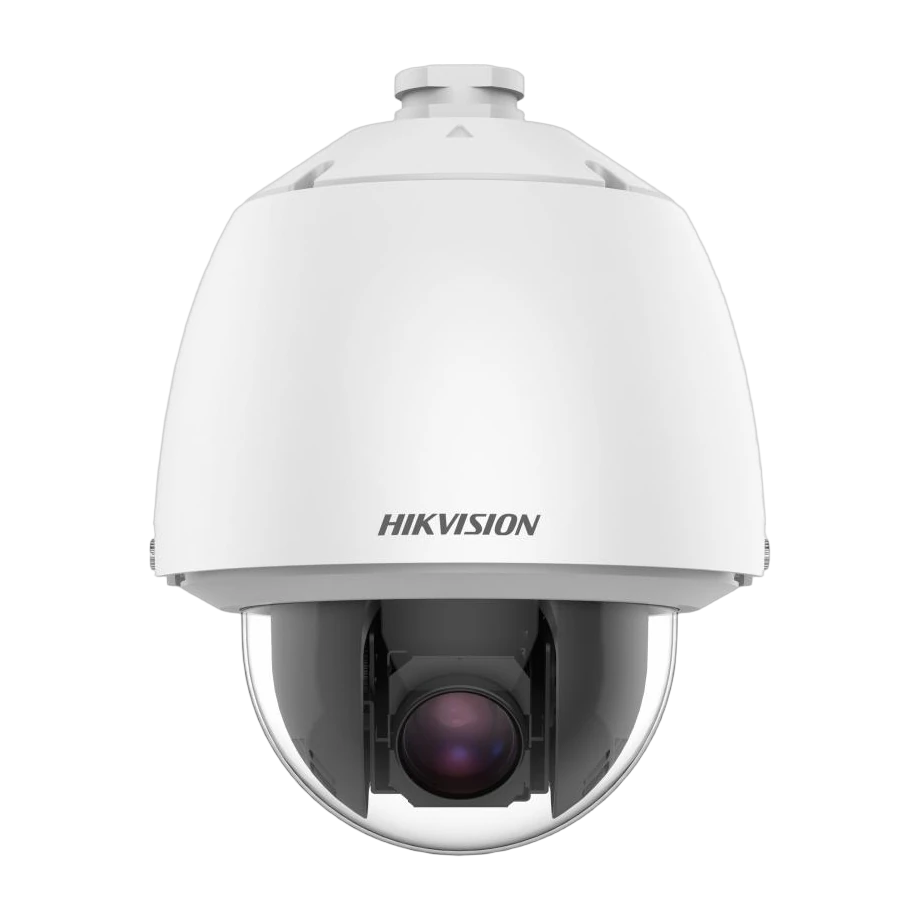

DS-2DE5432WG1-E Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DE5432WG1-E is a 4 MP powered PTZ network speed dome designed for wide-area monitoring where long-distance detail is required. It uses a 1/2.8″ progressive scan CMOS sensor and delivers a maximum resolution of 2560 × 1440 (4 MP). With a 32× optical zoom lens (and 16× digital zoom), the dome can capture clear close-up views across expansive scenes such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues.
Built for challenging lighting conditions, the camera supports WDR (120 dB), HLC and BLC, along with 3D DNR and digital defog. It also features Hikvision HIK AI-ISP for excellent noise reduction and includes regional exposure and regional focus to help maintain detail in selected areas. For motion-focused applications, the PTZ supports up to 300 presets, multiple patrol and pattern scan functions, and 3D positioning.
Connectivity and compatibility are oriented toward modern surveillance systems: it supports PoE (802.3at) as well as 36 VDC and 24 VAC power. The camera also supports H.265+/H.265/H.264 compression, multiple streaming profiles, and up to 20 channels of simultaneous live view. Network storage options include NAS (NFS/SMB/CIFS) with auto network replenishment (ANR). For security and deployment flexibility, it is IP66 weather rated and IK10 vandal resistant, with lightning and surge protection.
Key Features
- 4 MP (max. 2560 × 1440) progressive scan CMOS sensor
- 32× optical zoom (with 16× digital zoom) for long-range detail
- Powered by DarkFighter Acusense technology (DarkFighter)
- HIK AI-ISP for excellent noise reduction
- High focus speed with self-learning focus technology
- WDR 120 dB, HLC, BLC, 3D DNR, digital defog
- Regional exposure and regional focus
- PTZ: 360° pan and tilt -5° to 90° (auto flip), configurable pan/tilt speeds
- Up to 300 presets; patrol scan, pattern scan, and auto scan supported
- Scheduled tasks including various PTZ scan modes and auxiliary output
- Proportional pan and 3D positioning
- Video compression: H.265+/H.265/H.264 (main), with additional sub/third stream options
- Multiple streams with ROI (8 fixed regions per stream) and SVC support
- Audio support with line in/out and alarm I/O (2 inputs, 1 output)
- Smart events include line crossing, intrusion, region entrance/exit, unattended baggage, object removal, audio exception
- Weather and vandal resistance: IP66 and IK10
- TVS 6000V lightning protection and surge/voltage transient protection
- Supports linkage with NVR for AcuSeek/AcuSearch compatibility
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 2560 × 1440.
It has 32× optical zoom and 16× digital zoom.
It supports 300 presets.
Yes. It supports WDR with a value of 120 dB.
It supports 36 VDC, 24 VAC, and PoE (802.3at).
The camera is rated IP66 for water/dust resistance and IK10 for vandal resistance.
