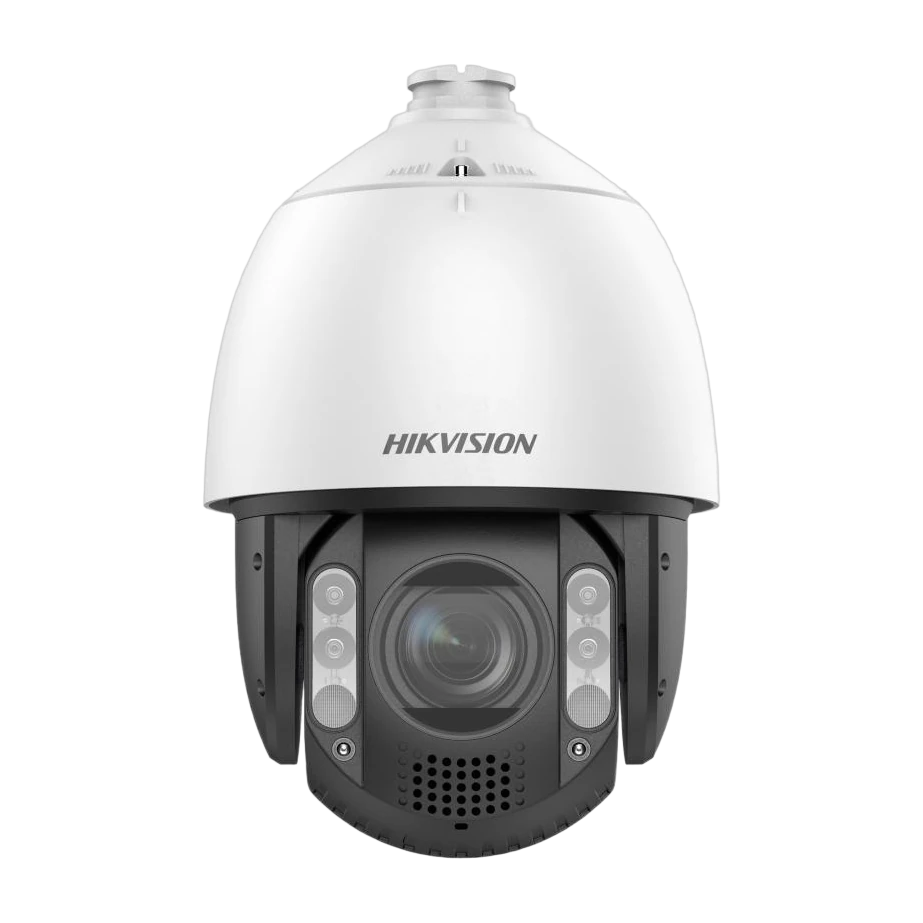

DS-2DE7A220MCG-EB Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DE7A220MCG-EB is a 2 MP (1920 × 1080) network speed dome PTZ camera designed for clear monitoring across expansive outdoor areas. Equipped with a 1/1.8″ progressive scan CMOS sensor and a powerful 20× optical zoom lens (with 16× digital zoom), it delivers close-up detail over long distances. For low-light performance, the camera supports ColorVu technology and provides expansive night viewing with up to 150 m IR distance and up to 100 m white light.
The dome includes audio-visual alarm capabilities, including a white flashing light and audible warning that can be triggered by events. Using deep learning-based functionality, Hikvision AcuSense focuses on human and vehicle target classification to improve alarm efficiency and effectiveness. Face capture is also supported, detecting and capturing up to 5 faces simultaneously and outputting the best face picture for each scene.
PTZ performance includes full 360° pan movement and -15° to 90° tilt (with auto flip), plus 300 presets and patrol/pattern scan options. For video and system flexibility, it supports multiple streams and H.265+/H.265/H.264 compression. Network features include ONVIF support, scalable live viewing, and NAS (NFS/SMB/CIFS) recording. Built for harsh environments, the camera offers IP67 weather resistance and IK10 impact protection.
Key Features
- 2 MP max resolution (1920 × 1080)
- 1/1.8″ progressive scan CMOS sensor
- 20× optical zoom (6.7 mm to 134 mm) and 16× digital zoom
- ColorVu support for improved night imaging
- IR illuminator range up to 150 m and white light up to 100 m
- Audio visual alarm with white flashing light and audible warning
- Deep learning (AcuSense) human and vehicle target classification
- Face capture: up to 5 faces simultaneously
- PTZ: 360° pan; -15° to 90° tilt (auto flip)
- 300 presets; patrol scan (up to 8 patrols) and pattern scan (4 patterns)
- 3D positioning and PTZ status display
- H.265+/H.265/H.264 compression support
- Built-in speaker (effective distance up to 30 m)
- IP67 and IK10 protection; TVS lightning protection
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The camera supports a maximum resolution of 1920 × 1080 (2 MP).
The datasheet lists an IR distance of up to 150 m.
Yes. The white light supplement range is listed as up to 100 m.
It provides 20× optical zoom and 16× digital zoom.
It focuses on human and vehicle targets classification for alarms.
The face capture function can detect and capture up to 5 faces simultaneously.
