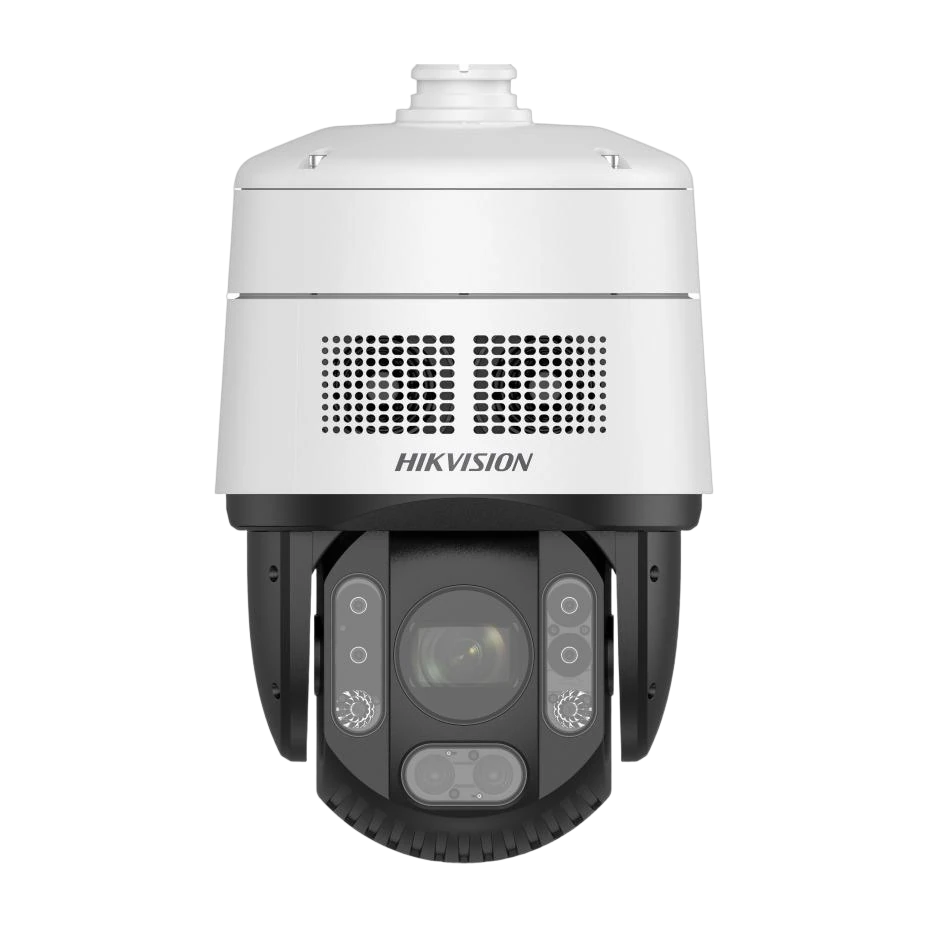

DS-2DE7A232IWG-EB/SL Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DE7A232IWG-EB/SL is a 2MP IP PTZ speed dome designed for long-range, high-detail monitoring across wide areas such as roads, railways, airports, squares, parks, and scenic venues. Built around a 1/2.8-inch progressive scan CMOS sensor, it delivers up to 1920×1080 resolution and supports high frame rates (up to 60 fps depending on settings). The powered-by-DarkFighter IR performance enhances low-light imaging for reliable day and night capture.
With a powerful 32× optical zoom (and 16× digital zoom), the dome can bring distant subjects into clear view. For nighttime illumination, it includes IR with an illumination range up to 200 meters. To further deter unwanted activity, the camera integrates a strobe light with white-light flashing effective up to 100 meters.
Smart detection is driven by deep learning, focusing on human and vehicle classification alarms to improve alarm efficiency and effectiveness for front- and back-end systems. The PTZ offers 360° pan rotation, tilt from -15° to 90° with auto flip, 300 presets, and multiple patrol/pattern scanning modes for automated coverage. Video is available with advanced compression options including H.265+/H.265/H.264+/H.264, and the camera supports multi-stream recording, NAS storage, and ONVIF integration.
Key Features
- 1/2.8-inch progressive scan CMOS sensor
- 2MP max resolution (1920 × 1080) up to 60 fps (depending on settings)
- Powered-by-DarkFighter low-light performance
- 32× optical zoom and 16× digital zoom
- IR illumination up to 200 m (850 nm)
- Human and vehicle target classification based on deep learning (AcuSense)
- Strobe light white flashing up to 100 m deterrence
- PTZ: 360° pan, tilt -15° to 90° (auto flip)
- 300 presets, patrol scan (8 patrols), pattern scan (4 patterns)
- Video compression: H.265+/H.265/H.264+/H.264; multi-stream support
- Audio: 1 in / 1 out, plus 2 inputs / 1 output for alarm
- Ingress protection IP67 and impact resistance IK10
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
It supports a max resolution of 1920 × 1080 (2MP).
The IR supplement light range is up to 200 m.
It offers 32× optical zoom (16× digital zoom).
Yes. It uses deep learning to focus on human and vehicle target classification alarms (AcuSense).
It supports 300 presets.
Power is 36 VDC ± 25% with max 42 W.
