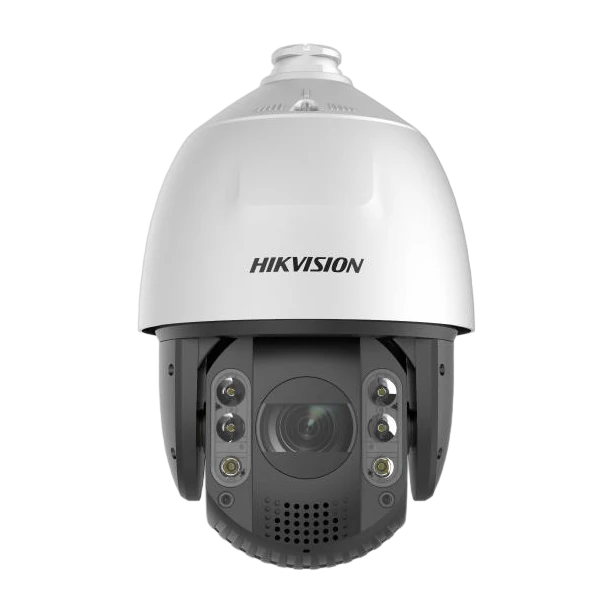

DS-2DE7A232IWG1-E Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DE7A232IWG1-E is a 2MP Acusense network speed dome PTZ camera designed for long-range, high-detail surveillance across wide outdoor areas. It uses a 1/2.8″ progressive scan CMOS sensor and delivers up to 1920 × 1080 resolution. A powerful 32× optical zoom (with 16× digital zoom) enables close-up views over expansive scenes, making it suitable for environments such as roads, rivers, railways, airports, squares, parks, scenic spots, and venues.
For low-light performance, the camera features IR illumination with a supplement light range of up to 200 meters, supported by DarkFighter technology. The dome also includes an audio capability with a built-in arrayed dual-microphone and a built-in speaker, plus support for linking compatible Hikvision network speakers and microphones.
Hikvision AcuSense deep learning improves alarm efficiency by focusing on human and vehicle targets classification. It supports smart events including line crossing detection, intrusion detection, and region entrance/exit detection, along with facial capture (up to 5 faces) and regional people counting (up to 8 regions).
With H.265+/H.265 compression support, multi-stream capability, and broad network/protocol support (including ONVIF), the DS-2DE7A232IWG1-E is built for reliable integration with NVRs and monitoring systems. The unit is rated IP67 and IK10 for tough outdoor installation.
Key Features
- 2MP (1920 × 1080) resolution with 1/2.8″ progressive scan CMOS sensor
- 32× optical zoom and 16× digital zoom; focal length 4.8 to 153.6 mm
- DarkFighter IR illumination with IR distance up to 200 m
- Hikvision AcuSense deep learning: human and vehicle target classification alarms
- AI-ISP for excellent noise reduction
- High focus speed with self-learning focus technology
- PTZ: 360° pan, -15° to 90° tilt (auto flip), 300 presets
- Smart events: line crossing, intrusion, region entrance, region exiting
- Audio: built-in arrayed dual-microphone (up to 8 m) and built-in speaker
- Audio visual alarm: white flashing light and audible warning
- Deep learning: face capture (up to 5 faces), regional people counting (up to 8 regions)
- Video compression: H.265+/H.265/H.264+ / H.264 (main stream)
- Network storage support: NAS (NFS, SMB/CIFS) with ANR
- Outdoor protection: IP67, IK10; TVS 6000 V lightning protection
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
1920 × 1080 (2MP).
Up to 200 m IR distance.
32× optical zoom and 16× digital zoom.
Yes. Hikvision AcuSense deep learning focuses on human and vehicle targets for classification alarm.
Face capture detects up to 5 faces simultaneously; regional people counting supports up to 8 detection regions.
Main stream supports H.265+/H.265/H.264+/H.264; sub-stream supports H.265/H.264/MJPEG.
