DS-2DF6C225IWG1-EL(W) Hikvision PTZ Dome IP Camera
Product Overview

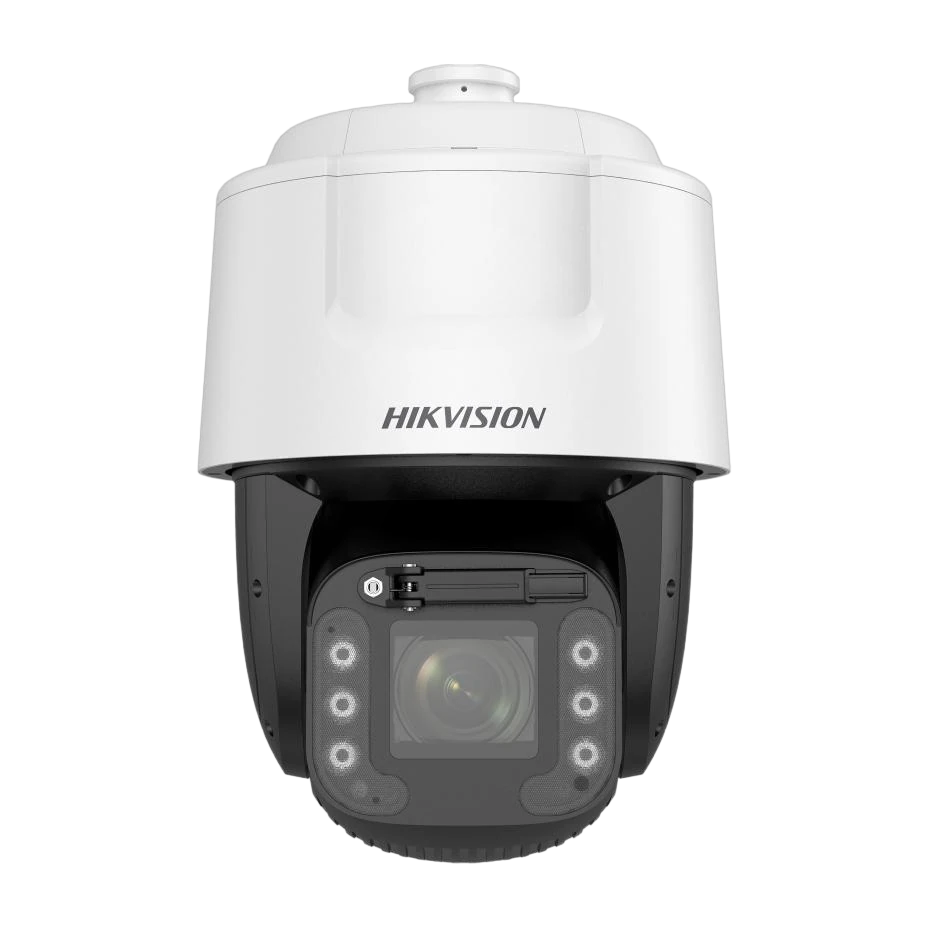

The Hikvision DS-2DF6C225IWG1-EL(W) is a 2MP network PTZ speed dome designed for long-range monitoring over expansive outdoor areas. Built around a 1/2.8″ progressive scan CMOS sensor, it delivers up to 1920 × 1080 resolution and provides 25× optical zoom with an additional 16× digital zoom for detailed views at distance. For low-light scenes, the camera features powered-by-DarkFighter 2.0 technology and an IR illuminator with a maximum IR distance of up to 250 m. It also uses 120 dB AWDR technology for clearer imaging against strong backlight.
Designed for demanding installations, the dome supports a wide PTZ movement range with pan 360° continuous and tilt from -20° to 90° (auto flip). It includes up to 300 presets and supports multiple patrol/pattern scan and scheduled tasks. The camera supports face capture to detect, capture, grade, and select faces in motion, alongside perimeter protection and multi-target detection for humans, faces, and vehicles.
Connectivity and security are geared toward modern IP systems: it supports IPv4/IPv6, HTTPS, 802.1x authentication, and standard Hikvision client software including HikCentral, iVMS-4200, and Hik-Connect. With rugged protection rated IP67 and IK10 (excluding glass window), plus options like a heater, wiper support, and built-in memory card slot (up to 256 GB), it is suitable for transport corridors, ports, airports, parks, stations, and other large venues.
Key Features
- 1/2.8″ progressive scan CMOS sensor
- 2MP (max 1920 × 1080) resolution
- Powered-by-DarkFighter 2.0 for excellent low-light performance
- 120 dB AWDR for clear imaging in strong backlight
- 25× optical zoom and 16× digital zoom
- IR illuminator with up to 250 m IR distance
- Water and dust resistant IP67 and vandal proof IK10 (excluding glass window)
- Supports face capture (detect, capture, grade, select faces in motion)
- PTZ: 360° pan, -20° to 90° tilt (auto flip), 300 presets
- Face/perimeter protection: line crossing, region entrance/exit, intrusion detection
- Multi-target detection: human body, face, and vehicle (simultaneous detection/capture)
- Deep learning function and smart tracking (manual/auto tracking)
- Built-in gyroscope for EIS performance
- Alarm I/O: 7 inputs, 2 outputs; audio: 1 line in / 1 line out
- Network: up to 20 channels simultaneous live view; supports ONVIF Profile S/G/T/M
- Security: HTTPS encryption, 802.1x, watermark, IP address filter, TLS 1.3, host authentication (MAC)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
Up to 1920 × 1080.
25× optical zoom and 16× digital zoom.
Powered-by-DarkFighter 2.0 technology with an IR illuminator.
Up to 250 m.
IP67 (water/dust resistant) and IK10 (vandal proof, excluding glass window).
Yes. It supports face capture (detect, capture, grade, and select faces in motion) and perimeter protection.
