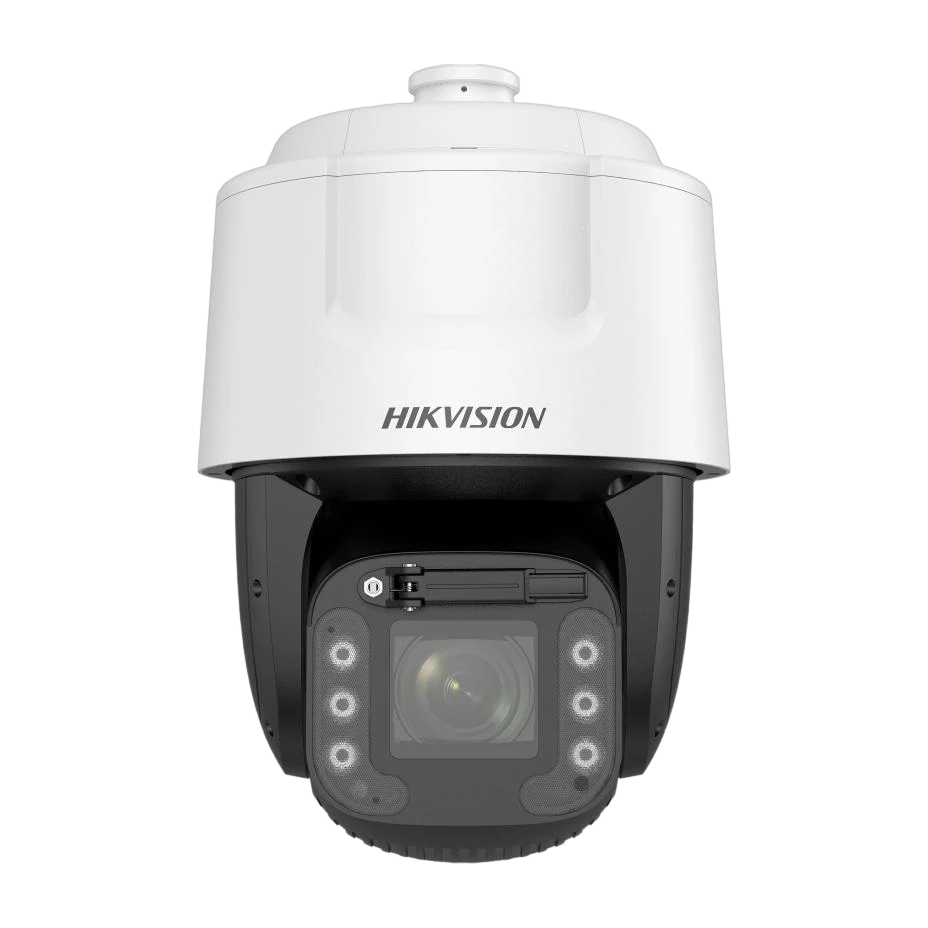

DS-2DF6C445IWG1-EL(W) Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DF6C445IWG1-EL(W) is a 4MP Ultra Series network PTZ (speed dome) camera designed for high-detail monitoring across wide outdoor areas. Using a 1/2.8″ progressive scan CMOS sensor and a 45× optical zoom lens (plus 16× digital zoom), it delivers high-resolution viewing from broad scene coverage down to close-up identification. For challenging lighting conditions, the camera supports powered-by-DarkFighter 2.0 technology for excellent low-light performance and uses 120 dB AWDR to help produce clear imaging against strong back light. Night viewing is supported by IR illumination with an up to 250 m IR distance, enabling long-range monitoring after dark.
Built for demanding environments, the speed dome is rated IP67 for water/dust resistance and IK10 for vandal resistance (excluding the glass window). PTZ performance includes 360° pan movement and -20° to 90° tilt with auto flip, with configurable pan/tilt speeds and extensive preset, patrol, and pattern scan capabilities. The camera also supports face capture to detect, capture, grade, and select faces in motion.
For system integration, the device supports multiple video streams and modern compression options including H.265+/H.265 and H.264/H.264+. Network features include NAS/ANR storage support, common IP protocols, encrypted security options, and compatibility with HikCentral, iVMS-4200, and Hik-Connect. Audio support and alarm I/O are also provided for event-based monitoring.
Key Features
- 1/2.8″ progressive scan CMOS sensor
- 4MP resolution (Max. 2688 × 1520)
- Powered-by-DarkFighter 2.0 low-light performance
- 120 dB AWDR for clear imaging against strong back light
- 45× optical zoom and 16× digital zoom
- IR night illumination up to 250 m
- Water and dust resistant IP67
- Vandal proof IK10 (excluding glass window)
- Supports face capture (detect, capture, grade, select faces in motion)
- 360° pan; -20° to 90° tilt with auto flip
- Up to 300 presets
- Up to 8 patrols (up to 32 presets per patrol)
- H.265+/H.265/H.264+/H.264 video compression
- Built-in gyroscope for EIS image stabilization
- Privacy mask up to 24 masks
- Alarm: 7 inputs, 2 outputs; RS-485
- On-board MicroSD support up to 256 GB
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
It uses a 1/2.8" progressive scan CMOS sensor and supports a maximum resolution of 2688 × 1520.
The IR supplement light supports an IR distance of up to 250 m.
It provides 45× optical zoom (PTZ channel) and 16× digital zoom.
Yes. It supports face capture to detect, capture, grade, and select faces in motion.
It is rated IP67 (water and dust resistant) and IK10 (vandal proof), excluding the glass window.
It supports H.265+/H.265/H.264+/H.264 for the main stream (and H.265/H.264/MJPEG options for other streams as listed in the datasheet).
