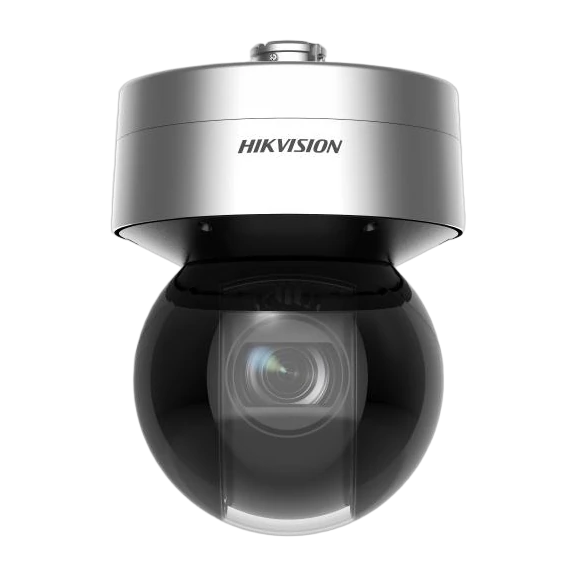

DS-2DF7A825IXG-EL(Y) Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DF7A825IXG-EL(Y) 7A Series 8MP PTZ network speed dome delivers high-detail monitoring across large outdoor areas with a powerful 25× optical zoom lens. Built around a 1/1.8″ progressive scan CMOS sensor, it supports up to 3840 × 2160 (8MP) max resolution for crisp image capture. For low-light conditions, the camera uses DarkFighter 2.0 technology and an IR illuminator with a supplement light range of up to 300 m, enabling clearer surveillance at night.
Performance highlights include excellent backlight handling with 140 dB AWDR and support for rapid focus. The speed dome is engineered for stability and image clarity thanks to built-in gyroscope support and smart Pan-Tilt correction. PTZ operation is optimized with 300 presets, patrol scan support, 3D positioning, and preset freezing.
For intelligent security needs, the device includes deep learning functions such as face capture (up to 30 faces simultaneously), perimeter protection (line crossing, region entry/exit, intrusion detection), multi-target detection (human/face/vehicle), and face comparison with libraries. Road traffic capabilities cover license plate recognition and vehicle attribute detection, including driving direction and counting, in supported checkpoint scenarios.
The DS-2DF7A825IXG-EL(Y) is designed for demanding installations with IP67 weather resistance, IK10 vandal resistance, and options for enhanced anti-corrosion protection.
Key Features
- 1/1.8″ progressive scan CMOS
- 8MP max resolution (3840 × 2160)
- 25× optical zoom and 16× digital zoom
- DarkFighter 2.0 for excellent low-light performance
- 140 dB AWDR for clear imaging against strong back light
- Up to 300 m IR illuminator range
- Rapid focus support
- Smart Pan-Tilt Correction
- Built-in gyroscope for stable image output (EIS enhancement)
- PTZ: 360° pan, -20° to 90° tilt (auto flip)
- Up to 300 presets; 8 patrols (up to 32 presets each)
- 3D positioning and preset freezing
- Deep learning: face capture up to 30 faces simultaneously
- Perimeter protection: line crossing and region entry/exit/intrusion detection
- Road traffic: license plate recognition, vehicle attributes, counting (checkpoint scenario supported)
- Water and dust resistant IP67, vandal proof IK10
- Anti-corrosion protection (NEMA 4X for -Y model, optional per datasheet)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
3840 × 2160 (8MP).
25× optical zoom (with 16× digital zoom).
DarkFighter 2.0 technology and IR illuminator distance up to 300 m.
Yes, 140 dB AWDR.
300 presets, plus 8 patrols (up to 32 presets per patrol).
IP67 water and dust resistance and IK10 vandal resistance.
