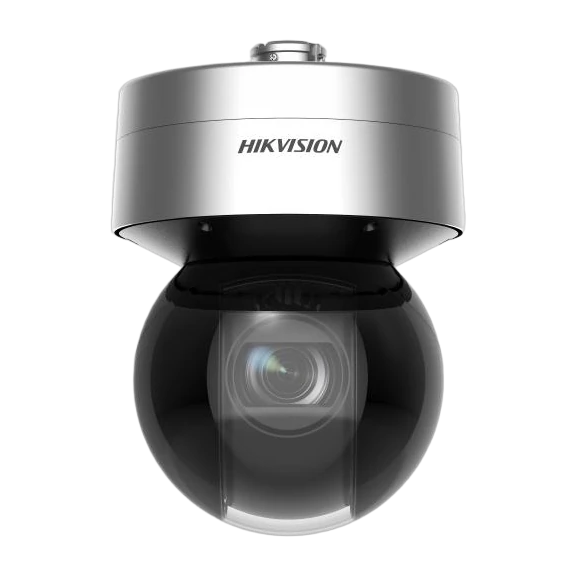

DS-2DF7A836IXG-EL(Y) Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DF7A836IXG-EL(Y) is a high-definition 8MP IP network speed dome designed for long-range surveillance across large outdoor areas. Using a 1/1.8″ progressive scan CMOS sensor, it delivers up to 3840 × 2160 maximum resolution with strong low-light performance supported by DarkFighter 2.0 and IR illumination. With a 36× optical zoom lens (plus 16× digital zoom), the dome can capture detailed close-up views while covering expansive scenes such as roads, railways, airports, ports, parks, and large venues.
For challenging lighting conditions, the camera supports 140 dB AWDR (Wide Dynamic Range) to maintain image clarity against strong backlight. PTZ performance includes fast focus, rapid scanning capabilities, smart pan-tilt correction, and built-in gyroscope stabilisation to support steady image output. The dome offers flexible control features such as up to 300 presets, 8 patrols, 3D positioning, and scheduled tasks including preset/patrol scan and dome reboot/adjust.
Built for tough environments, it is rated IP67 (water and dust resistant) and IK10 (vandal proof), with optional corrosion resistance (NEMA 4X, -Y variant). It also includes privacy masking and multiple image enhancement functions (BLC, HLC, 3D DNR), along with advanced event capabilities including deep learning face capture, perimeter protection, and road traffic/vehicle detection (checkpoint scenario).
Key Features
- 1/1.8″ progressive scan CMOS sensor (8MP max resolution 3840 × 2160)
- 36× optical zoom and 16× digital zoom
- DarkFighter 2.0 low-light performance
- 140 dB AWDR for clear imaging against strong backlight
- Up to 300 m IR illumination distance
- Rapid focus; auto/semi-auto/manual focus with rapid focus option
- Smart Pan-Tilt Correction
- Built-in gyroscope for stable image output and improved EIS
- PTZ: 360° pan, -20° to 90° tilt (auto flip), up to 700°/s pan max
- Up to 300 presets; 8 patrols (up to 32 presets each patrol)
- 3D positioning; preset freezing; PTZ status display
- Video codecs: H.265+/H.265/H.264+/H.264 and multi-stream support
- Deep learning: Face capture (up to 30 faces), perimeter protection
- Road traffic & vehicle detection with LPR (checkpoint scenario license plate recognition)
- Weather and vandal resistance: IP67, IK10; optional NEMA 4X (-Y)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The camera supports a maximum resolution of 3840 × 2160 (8MP).
It supports 36× optical zoom (plus 16× digital zoom).
Yes. It uses DarkFighter 2.0 technology.
The IR distance is up to 300 m.
It supports 140 dB WDR.
It is rated IP67 (water and dust resistant) and IK10 (vandal proof). It also offers optional corrosion resistance (NEMA 4X for the -Y variant).
