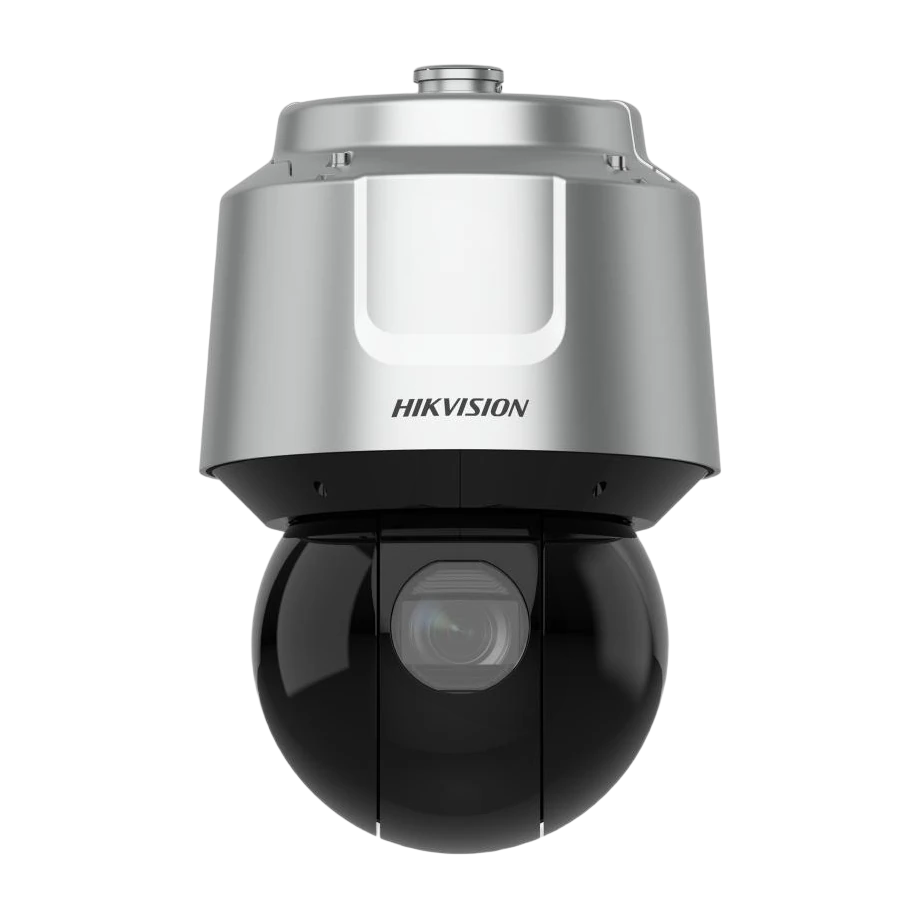

DS-2DF8A442IXG1-ELY Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DF8A442IXG1-ELY is a 4MP Ultra-series IP PTZ speed dome designed for long-range monitoring with exceptional low-light performance. It uses a 1/1.8″ progressive scan CMOS sensor and supports up to 2688 × 1520 maximum resolution. For day and night imaging, the camera incorporates DarkFighter technology and an IR cut filter, delivering 0 Lux performance with IR illumination for true zero-light viewing.
With 42× optical zoom (plus 16× digital zoom), the dome can cover expansive scenes while still enabling close-up detail. For nighttime use, it provides an IR supplement light range of up to 500 m, supported by smart illumination for more consistent exposure.
The PTZ system offers 360° pan and tilt from -20° to 90° (with auto flip) along with smart pan-tilt correction to improve tracking accuracy. The dome includes advanced preset, patrol, pattern scan, and scheduled tasks, plus 3D positioning, preset freezing, and power-off memory.
For intelligent analytics, the camera supports Deep Learning features including face detection/capture and road traffic vehicle detection (including LPR capability in checkpoint scenario). It supports multiple detection workflows such as line crossing and intrusion detection, and provides face capture with grading and selection for moving targets.
Built for challenging environments, the unit is water and dust resistant (IP67) and vandal proof (IK10), with lightning/surge and voltage transient protection. It also supports on-board microSD storage (up to 1 TB) and extensive network/security capabilities.
Key Features
- 1/1.8″ progressive scan CMOS sensor
- 4MP high quality imaging, max resolution 2688 × 1520
- DarkFighter technology for excellent low-light performance
- 0 Lux with IR; IR cut filter for day/night
- 42× optical zoom, 16× digital zoom
- Up to 500 m IR distance with smart supplement light
- PTZ: 360° pan; tilt -20° to 90° (auto flip)
- Smart Pan-Tilt Correction
- 300 presets; 8 patrols (up to 32 presets per patrol); pattern/patrol scan features
- 3D positioning and preset freezing
- Scheduled tasks including dome reboot/adjust and aux output
- H.265+/H.265/H.264 video compression
- Supports face capture: detect, track, capture, grade, and select faces in motion
- Road traffic/vehicle detection; LPR (license plate recognition) in checkpoint scenario
- Perimeter protection: line crossing/region entrance/intrusion/region exiting detection
- Face comparison with encrypted face libraries
- IP67, IK10 vandal and weather resistant; anti-corrosion moderate protection (model suffix ELY)
- On-board storage support: MicroSD up to 1 TB; 7 inputs / 2 outputs; 1 line in / 1 line out
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 2688 × 1520 (4MP).
The IR distance is up to 500 m.
It supports 42× optical zoom and 16× digital zoom.
Pan is 360°, and tilt is -20° to 90° (auto flip).
Yes. It supports face capture (detect/track/capture/grade/select) and face comparison with face libraries and encryption.
It is IP67 rated and vandal proof (IK10).
