DS-2DF8C260I5XG1-ELW Hikvision PTZ Dome IP Camera
Product Overview

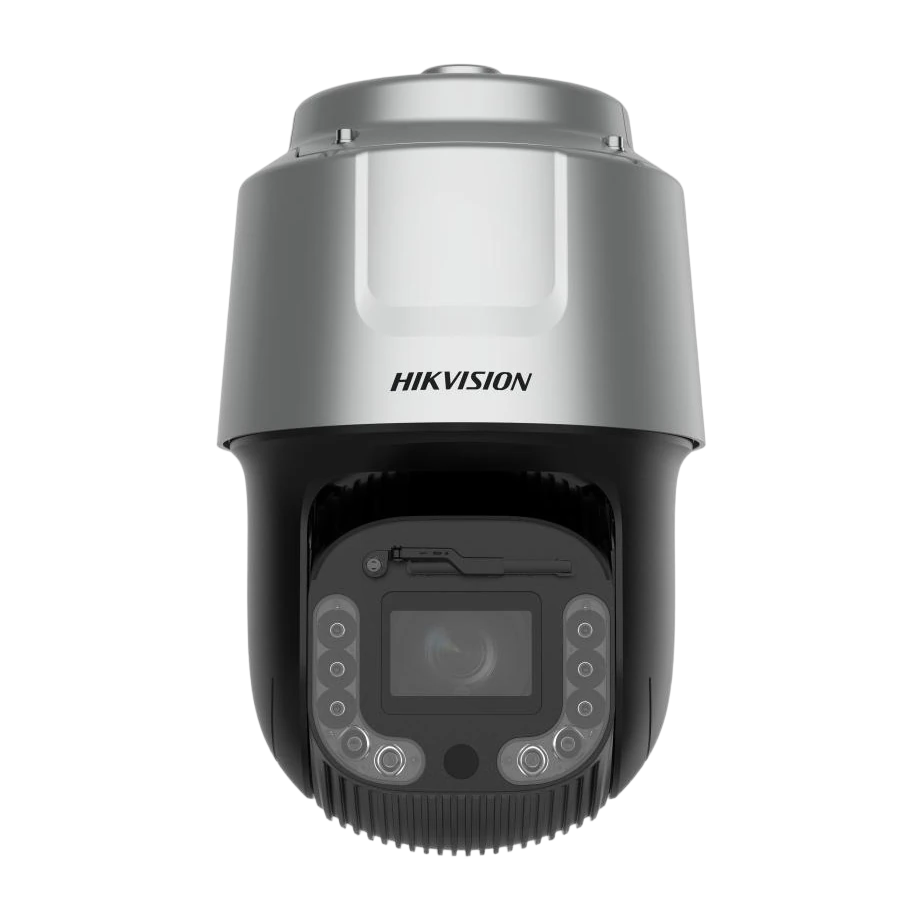

The Hikvision DS-2DF8C260I5XG1-ELW is a 2MP Ultra-series IP Speed Dome PTZ network camera designed for long-range monitoring with exceptional low-light performance. It uses a 1/1.2″ progressive scan CMOS sensor and delivers up to 1920 × 1080 resolution. For night operation, it leverages DarkFighter 2.0 technology and provides a laser illuminator with a stated range of up to 500 m, supporting clear detail in very low illumination (0.0001 Lux in B/W with AGC ON, and 0 Lux with the laser). The lens offers 60× optical zoom with 16× digital zoom, giving wide-to-tele flexibility for observing expansive areas and then zooming in for close-up views. Imaging performance is enhanced by 150 dB AWDR, helping maintain clarity against strong backlight conditions.
Built for outdoor deployments, the dome is rated IP67 for water and dust resistance and IK10 for vandal resistance (excluding the glass window). It supports intelligent features including face capture (detect, capture, grade, and select faces in motion), perimeter-related deep learning functions (line crossing and intrusion), and road traffic detection such as vehicles and motorcycles in checkpoint scenarios. The camera also includes PTZ control features like 3D positioning, 300 presets, and smart pan-tilt correction to improve tracking accuracy during movement.
Key Features
- 1/1.2″ progressive scan CMOS, 2MP (max 1920 × 1080)
- DarkFighter 2.0 low-light performance
- Laser illuminator supplement light with range up to 500 m
- 150 dB AWDR for clear imaging against strong backlight
- 60× optical zoom and 16× digital zoom
- Smart Pan-Tilt Correction
- IP67 weather and dust resistance; IK10 vandal resistance (excluding glass window)
- Supports face capture: detect, track, capture, grade, and select best face in motion (up to 30 faces simultaneously)
- Face comparison with face libraries (up to 10 libraries; up to 30000 faces per library)
- Road traffic / vehicle detection with LPR (checkpoint scenario), vehicle attributes and counting
- Deep learning: line crossing / intrusion / region entrance-exit detection
- PTZ: 360° pan, -20° to 90° tilt (auto flip), 300 presets
- High frame rate main stream (monitoring mode): up to 100 fps @ 50 Hz or 120 fps @ 60 Hz
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
It supports a maximum resolution of 1920 × 1080.
The laser distance is up to 500 m.
It offers 60× optical zoom and 16× digital zoom.
Yes. It supports 150 dB WDR (150 dB AWDR in the overview).
Yes. It detects up to 30 faces simultaneously and supports capturing, grading, and selecting faces in motion.
It is rated IP67 for water and dust resistance and IK10 for vandal proof (excluding the glass window).
