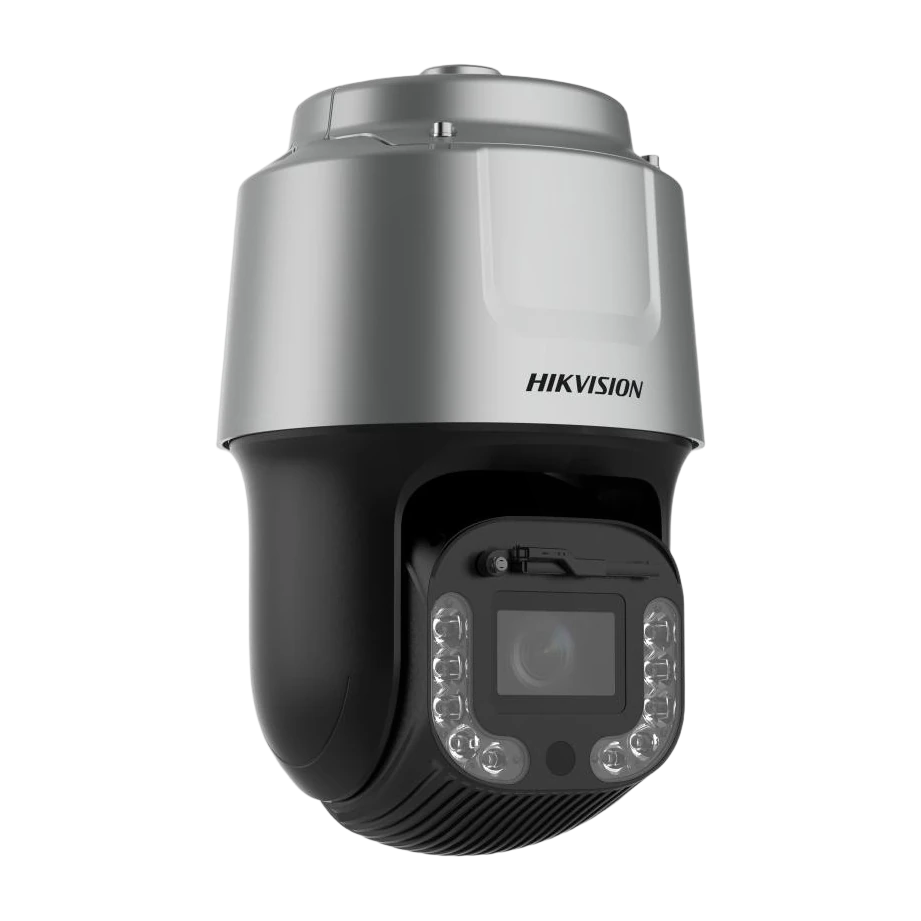

DS-2DF8C842IXG1-ELWY Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DF8C842IXG1-ELWY 8MP 42× DarkFighter 2.0 IR Network Speed Dome is designed for high-definition long-range surveillance over expansive outdoor areas. Featuring a 1/1.2″ progressive scan CMOS sensor and up to 3840 × 2160 resolution, it delivers detailed imagery in both day and low-light conditions. DarkFighter 2.0 technology enhances performance in very low illumination, while 140 dB AWDR helps produce clear imaging in challenging backlight scenarios.
Equipped with a 7.5 mm to 315 mm lens (42× optical zoom) and 16× digital zoom, the speed dome supports close-up views from a distance with adjustable PTZ control. For night monitoring, it includes IR with an illumination range up to 500 m and supports smart IR supplementation. Built for tough environments, it is water and dust resistant (IP67) and vandal resistant (IK10, excluding the glass window).
Advanced smart functions support face capture (detect, track, capture, grade, and select faces in motion) as well as road traffic detection for vehicle and license plate-related scenarios in checkpoint use. Motion-oriented deep learning features include perimeter protection (line crossing, intrusion, and region entrance/exiting detection) and multi-target type detection for humans, faces, and vehicles. Additional capabilities such as smart pan-tilt correction and optical defog further improve reliability for outdoor deployments.
Key Features
- 1/1.2″ progressive scan CMOS sensor
- 8 MP max resolution (3840 × 2160)
- DarkFighter 2.0 low-light performance
- 140 dB AWDR for clear imaging in strong backlight
- 42× optical zoom (7.5 mm to 315 mm) and 16× digital zoom
- IR supplement light with up to 500 m IR distance
- Smart IR (Smart Supplement Light)
- Optical defog
- IP67 (water/dust resistant) and IK10 (vandal resistant, excluding glass window)
- Vandal-proof Alarm: No
- PTZ: 360° pan, -20° to 90° tilt (auto flip) with Smart Pan-Tilt Correction
- 300 presets, 8 patrols, and pattern scan support
- Face capture: up to 30 faces simultaneously; detects/tracks/captures/grading/selects best face in motion
- Road traffic: vehicle and motorcycle license plate recognition (checkpoint scenario)
- Vehicle attribute detection and vehicle/non-vehicle counting
- Deep learning perimeter protection (line crossing, intrusion, region entrance/exiting)
- On-board microSD card slot up to 256 GB
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The maximum resolution is 3840 × 2160 (8 MP).
It supports 42× optical zoom and 16× digital zoom.
The IR distance is up to 500 m.
It uses DarkFighter 2.0 for low-light performance and 140 dB AWDR for clear imaging against strong backlight.
It is IP67-rated and IK10-rated (excluding the glass window).
Yes. It supports face capture (detect/capture/grade/select) and supports road traffic detection including license plate recognition in a checkpoint scenario.
