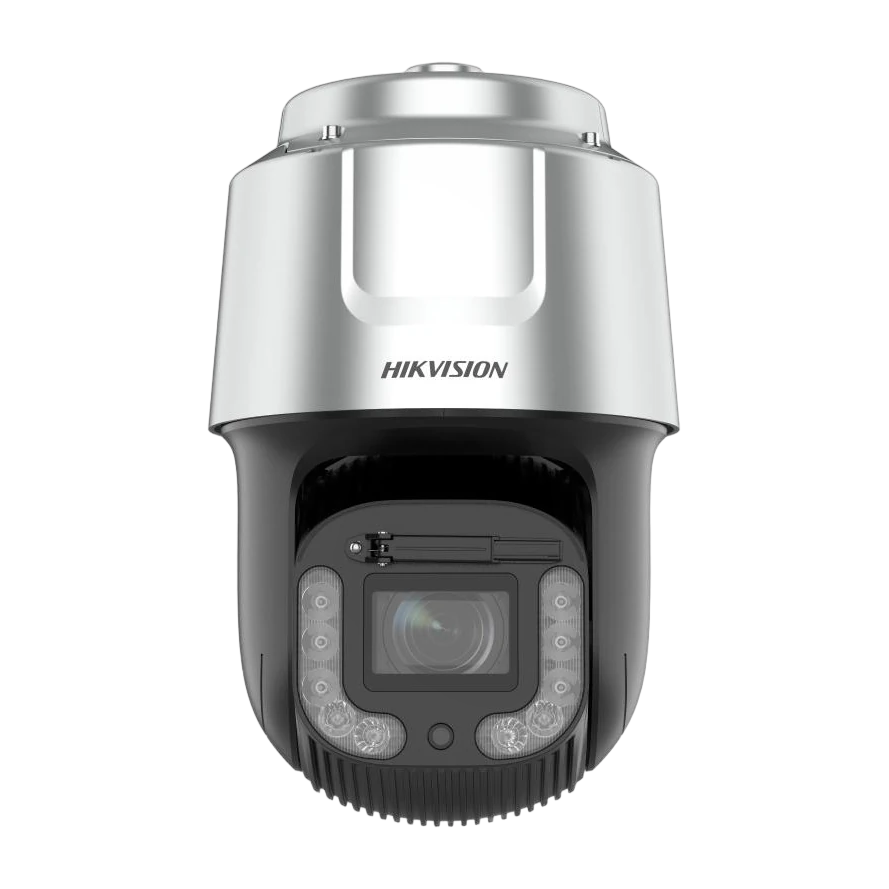

DS-2DF8C842IXG2/LM-ELWY Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DeepinView X DS-2DF8C842IXG2/LM-ELWY is an 8MP network PTZ speed dome built for long-range monitoring and clear imaging in challenging lighting. Featuring a 1/1.2″ progressive scan CMOS sensor and up to 3840 × 2160 maximum resolution, the camera delivers high-detail video suitable for perimeter and wide-area surveillance. For low-light performance, it uses DarkFighter 2.0 technology and an IR illuminator with a supplement light range of up to 400 m, enabling detailed night visibility.
Optical reach is provided by a 42× optical zoom lens (with 16× digital zoom), while advanced optical and imaging technologies such as 140 dB AWDR and optical defog help maintain clarity under strong backlight and adverse weather or haze conditions. PTZ mechanics include smart pan-tilt correction for improved pointing accuracy, 360° pan movement and -20° to 90° tilt with auto flip, and 300 presets for fast deployment.
For intelligent protection, the camera integrates a dedicated large-scale AI model for perimeter protection and supports scenario-aware object detection with real-time capture/recognition or scheduled detection modes. It also supports deep learning features including multi-target-type detection and face comparison, alongside road traffic and vehicle detection capabilities (e.g., license plate recognition in checkpoint scenarios). The DS-2DF8C842IXG2/LM-ELWY is rated IP67 and IK10 (excluding glass window), with strong cybersecurity features and support for modern network streaming, storage, and event/alarm workflows.
Key Features
- 1/1.2″ progressive scan CMOS sensor, up to 8MP (3840 × 2160)
- 42× optical zoom, 16× digital zoom
- DarkFighter 2.0 low-light performance
- Up to 400 m IR supplement light distance; smart IR supplement light
- 140 dB AWDR (wide dynamic range) and optical defog
- Smart Pan-Tilt Correction and 3D positioning
- IP67 water/dust resistance and IK10 vandal resistance (excluding glass window)
- AI perimeter protection: dedicated large-scale AI model; reduces false alarms by 90% vs conventional AI cameras
- Perimeter/VCA detections: line crossing, intrusion, region entrance, region exiting
- Scenario-aware object detection (scene category recognition and 360° capture/labeling)
- Deep learning: multi-target-type detection (human/face/vehicle) and face comparison (up to 10 face libraries; up to 30,000 faces per library)
- Road traffic/vehicle detection with license plate recognition (checkpoint scenario), vehicle attributes, and counting
- PTZ capabilities: 300 presets, 8 patrols, pattern scan support, power-off memory, park actions
- Network security: TPM 2.0 (FIPS 140-2 level 2), HTTPS, 802.1X, watermark, TLS 1.3 and additional protections
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
3840 × 2160 (8MP).
Up to 400 m.
42× optical zoom (with 16× digital zoom).
Yes. It supports 140 dB AWDR and optical defog.
Yes. It is rated IP67 for water/dust resistance and IK10 for vandal proof (excluding glass window).
A dedicated large-scale AI model for perimeter protection, supporting detections such as line crossing, intrusion, region entrance and region exiting, with reduced false alarms.
