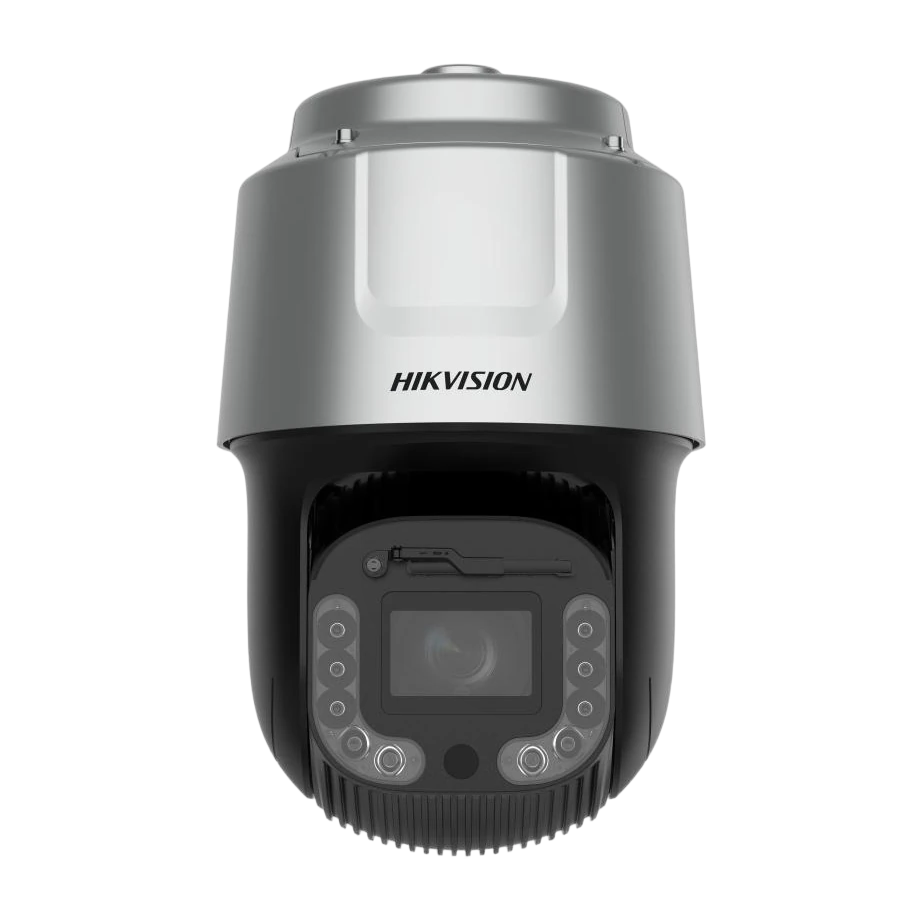

DS-2DF8C848I5XG1-ELW Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DF8C848I5XG1-ELW is an IP 8MP DarkFighter 2.0 IR network speed dome PTZ designed for long-range, high-clarity monitoring in challenging low-light conditions. It uses a 1/1.2-inch progressive scan CMOS sensor with 8MP maximum resolution (3840 × 2160) and supports smooth high-frame-rate streaming (up to 120 fps in supported monitoring modes). For night performance, the camera combines DarkFighter 2.0 low-light imaging with a laser illuminator offering a supplement light range of up to 500 m, while still providing 0 Lux with IR.
For challenging lighting, it features 140 dB AWDR and optical defog, along with OIS (optical image stabilization) and smart pan-tilt correction to reduce image shake and improve positioning accuracy. The dome offers 48× optical zoom (plus 16× digital zoom) with auto/semi-auto/manual/rapid focus modes, and extensive PTZ control including 300 presets, 8 patrol scans, and 4 pattern scans.
Built for demanding environments, the unit is rated IP67 and IK10 (excluding glass window), supports smart face capture (detect/capture/grading/selecting faces in motion), and includes road traffic detection capabilities such as vehicle and motorcycle license plate recognition (checkpoint scenario). It also supports advanced AI multi-target detection for humans, faces, and vehicles, with face comparison against encrypted libraries.
Key Features
- 1/1.2-inch progressive scan CMOS, 8MP max resolution (3840 × 2160)
- DarkFighter 2.0 for excellent low-light performance
- 140 dB AWDR for clear imaging against strong back light
- 48× optical zoom and 16× digital zoom
- Laser illuminator with supplement light range up to 500 m
- Face capture: detect, capture, grade, and select faces in motion
- Road traffic detection including license plate recognition (vehicles and motorcycles in checkpoint scenario)
- Smart Pan-Tilt Correction
- OIS (optical image stabilization) and optical defog
- Water/dust resistant IP67 and vandal resistant IK10 (excluding glass window)
- PTZ: 300 presets; 8 patrols; 4 pattern scans; pan 360°; tilt -20° to 90° (auto flip)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 3840 × 2160 (8MP).
Yes. It uses DarkFighter 2.0 technology for excellent low-light performance.
The laser illuminator range is up to 500 m.
It supports 48× optical zoom and 16× digital zoom.
Yes. It supports face capture (detect/capture/grade/select faces in motion) and face comparison with face libraries.
Yes. It supports road traffic detection, including license plate recognition of vehicles and motorcycles in a checkpoint scenario.
