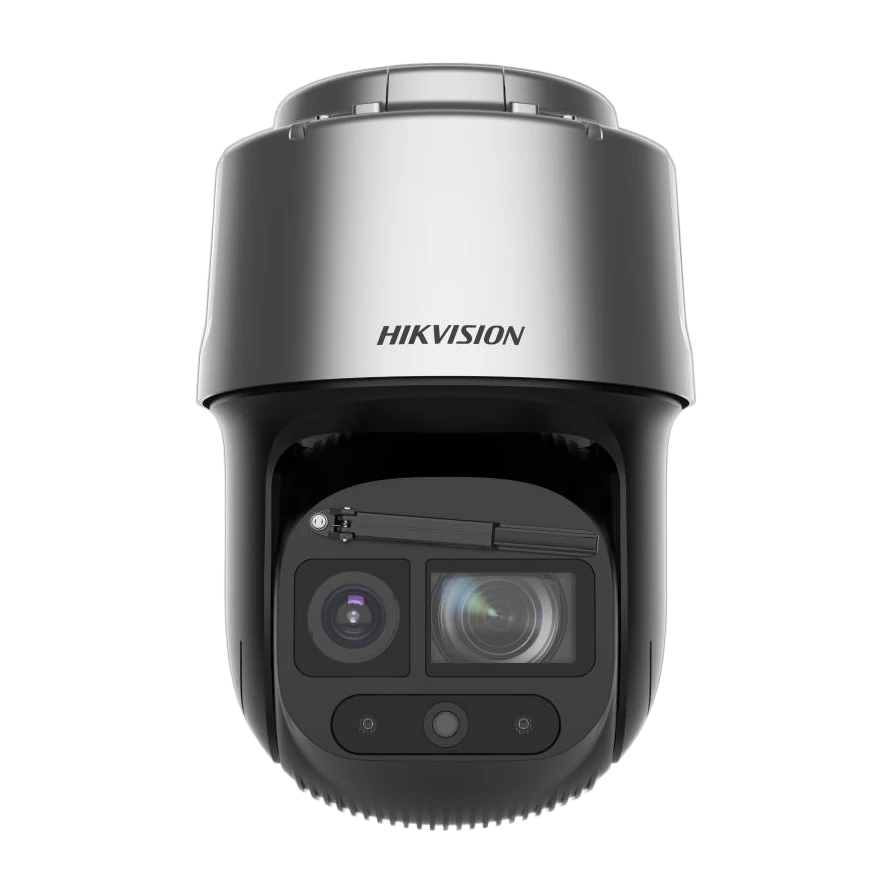

DS-2DF9C453LXG1-LW Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DF9C453LXG1-LW is a 4MP IP PTZ speed dome designed for long-range monitoring and reliable imaging in challenging low-light conditions. It uses a 1/1.2″ progressive scan CMOS sensor to deliver a maximum resolution of 2688 × 1520, with fast shutter speeds from 1/1 s to 1/30,000 s. For night performance, the camera leverages DarkFighter 2.0 technology and an IR cut filter with day/night switching, delivering excellent visibility in very low illumination.
Featuring a powerful 53× optical zoom lens (6.6 mm to 350 mm) and up to 16× digital zoom, the dome supports close-up views over expansive scenes. Its laser supplement light provides illumination up to 800 m, and Smart Supplement Light is supported for improved consistency across changing conditions. For challenging lighting environments, it includes 150 dB AWDR technology to enhance clarity against strong backlight. Image stabilization (OIS) and optical defog further support video quality in outdoor installations.
Advanced smart functions include face capture (detect, capture, grade and select faces in motion) and deep-learning perimeter protection such as line crossing and intrusion detection. Road traffic features support vehicle detection and license plate recognition (LPR) in checkpoint scenarios, along with vehicle attributes and counting. Built for harsh environments, the dome is rated IP67 and vandal resistant IK10 (excluding glass window).
Key Features
- 4MP 1/1.2″ progressive scan CMOS sensor
- 53× optical zoom (6.6 mm to 350 mm) and 16× digital zoom
- DarkFighter 2.0 technology for excellent low-light performance
- 150 dB AWDR for clear imaging against strong backlight
- Laser supplement light up to 800 m with Smart Supplement Light
- Rain-sensing auto wiper
- Face capture: detect, capture, grade and select faces in motion
- Supports road traffic to detect vehicles
- Road traffic detection with LPR (checkpoint scenario only), vehicle attributes and counting
- Smart Pan-Tilt Correction
- IP67 and IK10 vandal proof (excluding glass window)
- H.265+/H.265/H.264 video compression with up to 8 fixed ROI regions
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 2688 × 1520.
It provides 53× optical zoom and 16× digital zoom.
Yes. It uses DarkFighter 2.0 technology and supports day/night operation with an IR cut filter and 0 Lux with light.
The laser distance is up to 800 m.
Yes. It supports face capture to detect, capture, grade, and select faces in motion.
It is IP67 water and dust resistant and IK10 vandal proof (excluding glass window).
