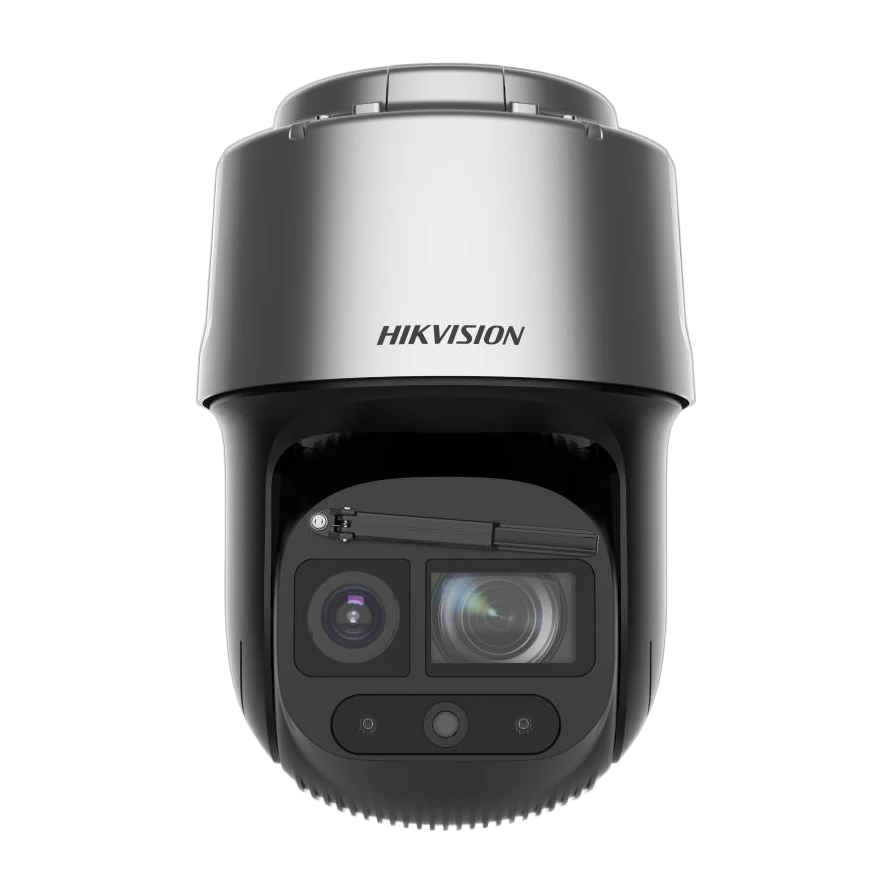

DS-2DF9C848LXG1-LW Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DF9C848LXG1-LW is an 8MP IP PTZ laser network speed dome designed for long-range, low-light surveillance and high-detail target capture. Built around a 1/1.2-inch progressive scan CMOS sensor, it delivers up to 3840 × 2160 resolution and benefits from DarkFighter 2.0 technology for excellent performance in extremely low illumination. For challenging lighting conditions, it includes 140 dB AWDR to help maintain clear imaging against strong backlight and supports optical defog and OIS (optical image stabilization).
With a powerful 48x optical zoom (plus 16x digital zoom), the dome can cover expansive areas while still enabling close-up viewing of distant targets. The laser illuminator provides smart supplemental light with a laser distance of up to 800 m, making it suitable for perimeter and wide-area monitoring where people, faces, and vehicles may need to be distinguished. Motorized PTZ operation includes 360° pan, -20° to 90° tilt (auto flip), smart pan-tilt correction, 300 presets, and multiple patrol and pattern scan modes, with power-off memory for reliable recovery.
Advanced analytics support face capture (detect/capture/grade/select up to 30 faces in motion), face comparison with encrypted libraries, and road traffic detection for vehicles (with license plate recognition in checkpoint scenarios). The camera also features rain-sensing auto wiper, heater, and robust protection rated IP67 and IK10 (excluding glass window), with comprehensive network security features including TPM 2.0 (FIPS 140-2 level 2).
Key Features
- 1/1.2-inch progressive scan CMOS sensor
- 8MP max resolution (3840 × 2160)
- DarkFighter 2.0 low-light performance
- 140 dB AWDR for strong backlight compensation
- 48x optical zoom and 16x digital zoom
- Laser supplement light up to 800 m with Smart Supplement Light
- Rain-sensing auto wiper
- Smart Pan-Tilt Correction
- Face capture: detects up to 30 faces simultaneously; supports tracking/capture/grading/selection in motion
- Face comparison: up to 10 face libraries with 30,000 faces per library (150,000 total); supports face library encryption
- Road traffic/vehicle detection with LPR (checkpoint scenario) and vehicle attribute detection
- PTZ: 360° pan; -20° to 90° tilt (auto flip); 300 presets
- OIS optical image stabilization; optical defog
- Water and dust resistant IP67 and vandal proof IK10 (excluding glass window)
- TPM 2.0 (FIPS 140-2 level 2) and multiple cybersecurity protections
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The camera supports up to 3840 × 2160 (8MP) resolution.
It provides 48x optical zoom (with 16x digital zoom).
The datasheet specifies DarkFighter 2.0 technology for excellent low-light performance.
The laser distance is specified as up to 800 m.
Yes. It supports face capture (up to 30 faces simultaneously) and face comparison with up to 10 face libraries and 150,000 faces total.
It is rated IP67 for water/dust resistance and IK10 for vandal proof protection (excluding glass window).
