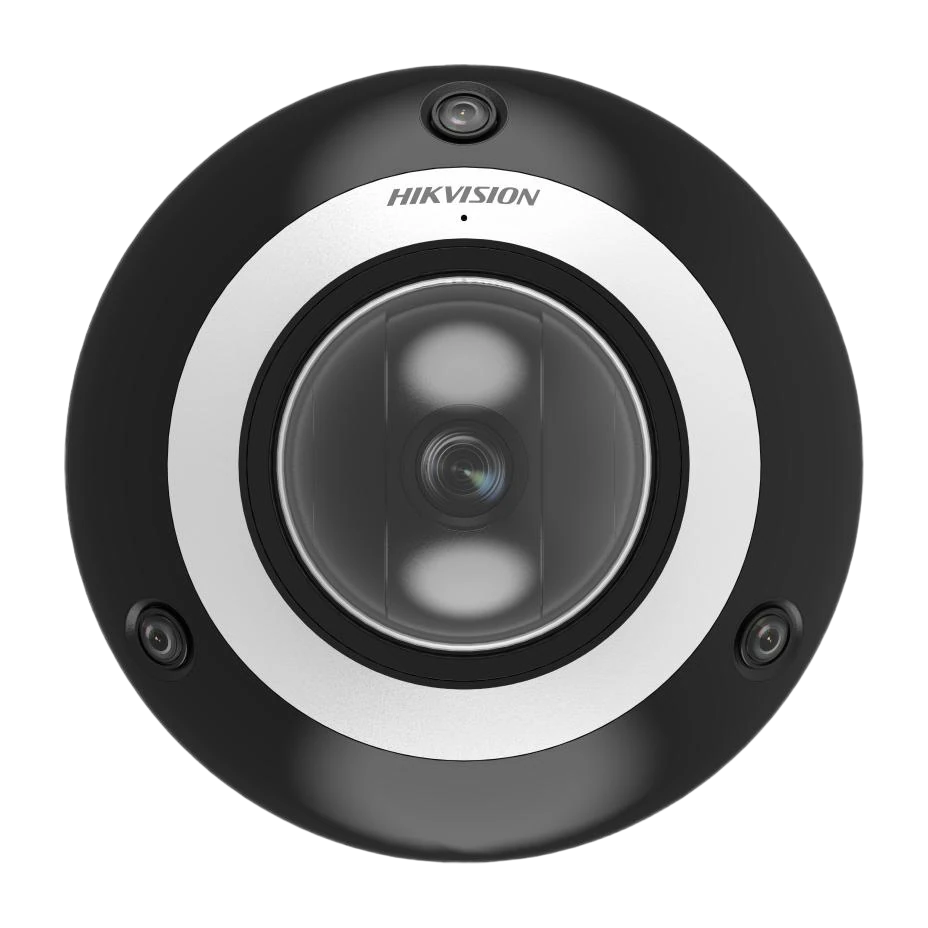

DS-2DP3D404IWG1-E/36 Hikvision Fisheye IP Camera
Product Overview
The Hikvision DS-2DP3D404IWG1-E/36 is a mini panoramic IR network speed dome designed to capture wide areas with strong detail for surveillance applications. It combines a 1/2.8″ progressive scan CMOS panoramic channel with an additional 1/3″ progressive scan CMOS PTZ channel, supporting a maximum panoramic resolution of 1920 × 1080 and a PTZ resolution up to 2560 × 1440. With 4× optical zoom (PTZ) plus 16× digital zoom, the dome enables situational awareness across expansive scenes while still allowing clear close-up monitoring.
For challenging lighting conditions, the camera features powered-by-DarkFighter technology and strong low-light performance, with IR illumination providing visibility up to 20 m. Image enhancement options include WDR (120 dB), HLC, BLC, 3D DNR, digital defog, and regional exposure/focus capabilities for more accurate targets in variable environments.
Video handling includes H.265 and H.264 compression, plus support for SVC and multiple streams. The device supports up to 20 simultaneous live view channels and ONVIF profiles (S/G/T). Built-in audio includes a microphone and speaker, and it also supports onboard Micro SD/SDHC/SDXC storage up to 512 GB. For events, it offers motion detection and smart analytics such as line crossing, intrusion, and region entrance/exiting detection, with linkage actions including FTP/NAS upload, email, alarm output triggers, and recording.
Key Features
- Mini PanoVu network speed dome with panoramic + PTZ channels
- 1/2.8″ progressive scan CMOS (panoramic channel) and 1/3″ progressive scan CMOS (PTZ channel)
- 4MP-class imaging with max panoramic 1920 × 1080 and PTZ 2560 × 1440
- 4× optical zoom and 16× digital zoom (PTZ channel)
- Powered-by-DarkFighter low-light technology
- IR supplemental light range up to 20 m
- WDR 120 dB, HLC, BLC, 3D DNR, digital defog
- Regional exposure and regional focus (PTZ channel)
- 16× digital zoom (PTZ channel)
- Support for 12V DC power
- Video compression: H.265 / H.264 / MJPEG; SVC supported
- Max 300 presets and 0° to 340° pan / 0° to 90° tilt
- Privacy masking with 24 programmable polygon masks (panoramic and PTZ)
- Smart events: line crossing, intrusion, region entrance, region exiting, audio exception
- Audio: built-in microphone and speaker; line in/out supported
- On-board storage: Micro SD/SDHC/SDXC up to 512 GB
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
Max panoramic channel resolution is 1920 × 1080, and PTZ channel max resolution is 2560 × 1440.
Yes. The PTZ channel supports 4× optical zoom and 16× digital zoom.
IR distance is up to 20 m.
The camera uses powered-by-DarkFighter technology.
It supports WDR 120 dB, plus HLC, BLC, 3D DNR, and digital defog.
It includes motion detection and smart events such as line crossing detection, intrusion detection, and region entrance/exiting detection (and audio exception detection).
