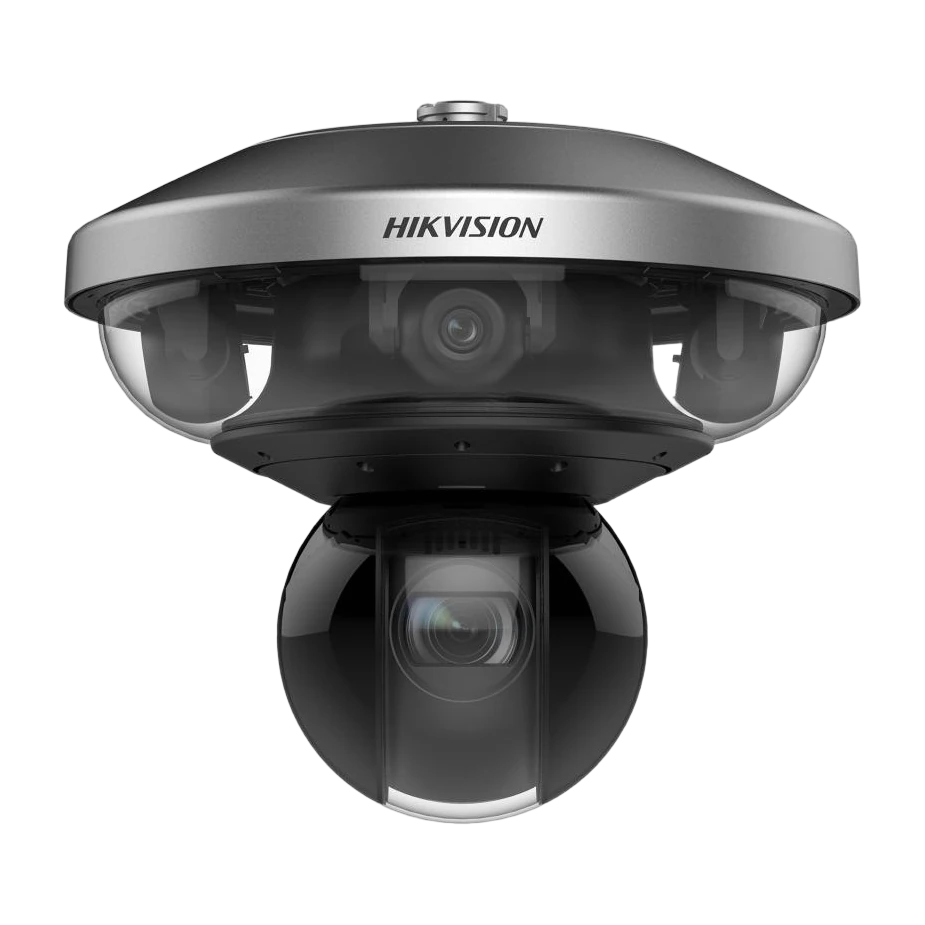

DS-2DP7D436IXG1-LEF(Y)/416 Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DP7D436IXG1-LEF(Y)/416 is a high-performance IP PTZ dome camera designed for wide-area monitoring with strong low-light performance. It combines a 4MP panoramic channel and a 4MP PTZ channel to capture a large field of view while still supporting detailed zoom inspection. With a 4-lens panoramic configuration covering up to 360° and a motorized PTZ mechanism, the camera helps ensure no blind-area monitoring across the full surrounding view.
For day and night imaging, the camera supports 24/7 color imaging and excellent low-light capability. It uses IR supplemental lighting with a range of up to 300 m, and features wide dynamic range (WDR) for challenging lighting conditions—120 dB for panoramic and 150 dB for the PTZ channel. The optics include 36× optical zoom plus 16× digital zoom, enabling long-distance observation and flexible frame composition.
Designed for demanding environments, the unit is rated IP67 for water and dust resistance and IK10 for vandal resistance. It also supports deep learning functions, including multi-target human body and face detection in the PTZ channel, enhancing situational awareness. Additional capabilities include 300 presets, patrol and pattern scan support, 3D positioning, and a range of scheduled tasks and linkage options for event-based recording and alerts.
Key Features
- Dual-channel design: 4MP panoramic channel and 4MP PTZ channel (2688 × 1520 each)
- 4-lens panoramic coverage up to 360° field of view with adjustable monitoring tilt angle
- Motorized pan/tilt/rotation in 4 panoramic lenses for flexible adjustment
- 24/7 colorful imaging with excellent low-light performance
- IR supplemental lighting, range up to 300 m
- WDR: 120 dB (panoramic) and 150 dB (PTZ)
- 36× optical zoom and 16× digital zoom
- Deep learning: PTZ supports simultaneous human body and face detection/capture
- Supports perimeter protection: line crossing, intrusion, region entrance and region exiting detection
- Panoramic/advanced PTZ functions: 300 presets, 8 patrols, 4 pattern scans
- 3D positioning and preset freezing
- Environmental protection: IP67 and IK10
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The panoramic channel and the PTZ channel both support a max resolution of 2688 × 1520 (4 MP).
Yes. It uses 4 adjustable lenses in one camera cover up to 360° field of view for panoramic monitoring.
It supports 36× optical zoom and 16× digital zoom.
It uses WDR technology: 120 dB for the panoramic channel and 150 dB for the PTZ channel.
It uses IR supplemental lighting with a range of up to 300 m.
Yes. It is rated IP67 (water/dust resistant) and IK10 (vandal resistant).
