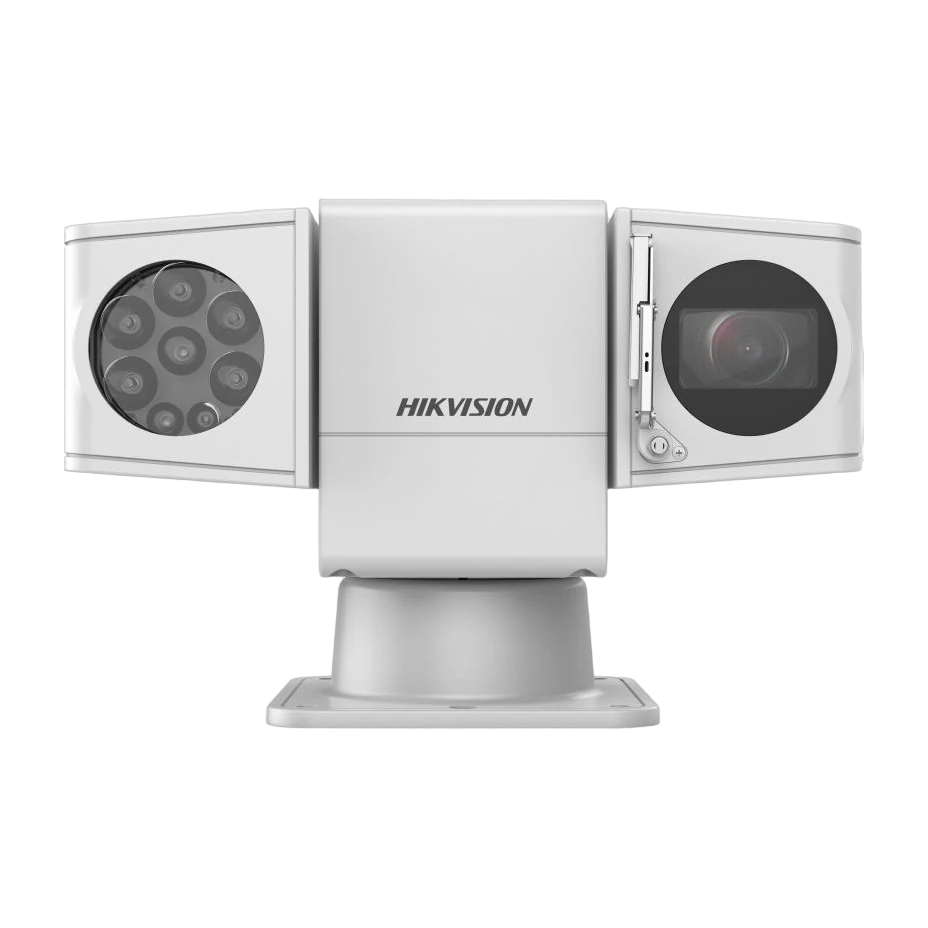

DS-2DY5440IXG-E Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DY5440IXG-E is a 4MP PTZ network positioning system designed for long-range surveillance with a high-performance 1/1.8-inch progressive scan CMOS sensor. It supports up to 2560 × 1440 resolution at 30 fps and offers a powerful 40× optical zoom (plus 16× digital zoom) with proportional zoom for smooth, accurate framing.
For demanding lighting conditions, the camera features DarkFighter IR technology with a minimum illumination specification down to 0.005 Lux (color, F1.2, AGC ON) and 0.001 Lux (B/W, F1.2, AGC ON), reaching 0 Lux with IR. The IR illuminator provides supplement light up to 250 m with Smart IR for adaptive IR output.
Image quality is enhanced by True WDR, Defog, and EIS (electronic image stabilization), along with BLC/HLC and 3D DNR for clearer detail. Video compression options include H.265+/H.265/H.264 for the main stream and SVC support, with multi-stream recording capability (main/sub/third streams).
The PTZ system supports 360° endless pan and tilt from +90° to -90° with auto flip, configurable pan speeds up to 150°/s and tilt speeds up to 80°/s. Advanced functions include 3D positioning, 300 presets, patrol and pattern scan capabilities, scheduled tasks, and face capture (up to 10 faces) with smart tracking. The unit is outdoor-rated (IP66), includes a wiper, supports power-off memory, and uses Hi-PoE/PoE (802.3bt) up to 60 W.
Key Features
- 1/1.8-inch progressive scan CMOS sensor
- Max resolution 2560 × 1440 at 30 fps (4MP)
- 40× optical zoom, 16× digital zoom
- DarkFighter IR with minimum illumination: 0 Lux with IR
- IR supplement light range up to 250 m
- True WDR, Defog, and EIS (electronic image stabilization)
- Smart IR
- H.265+/H.265/H.264 video compression with SVC support
- ROI: 8 fixed regions per stream
- 360° endless pan; tilt +90° to -90° with auto flip
- Configurable pan speed up to 150°/s; tilt speed up to 80°/s
- 300 presets; patrol scan and pattern scan; preset freezing
- 3D positioning
- Face capture (up to 10 faces) and smart tracking
- Outdoor durability: IP66; wiper; surge/lightning protection
- Power-off memory
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
Up to 2560 × 1440 at 30 fps.
40× optical zoom (plus 16× digital zoom).
Up to 250 m.
Yes. It supports Smart IR and True WDR.
Pan: 360° endless. Tilt: from +90° to -90° (auto flip).
IP66 protection; outdoor operating temperature: -40°C to 70°C.
