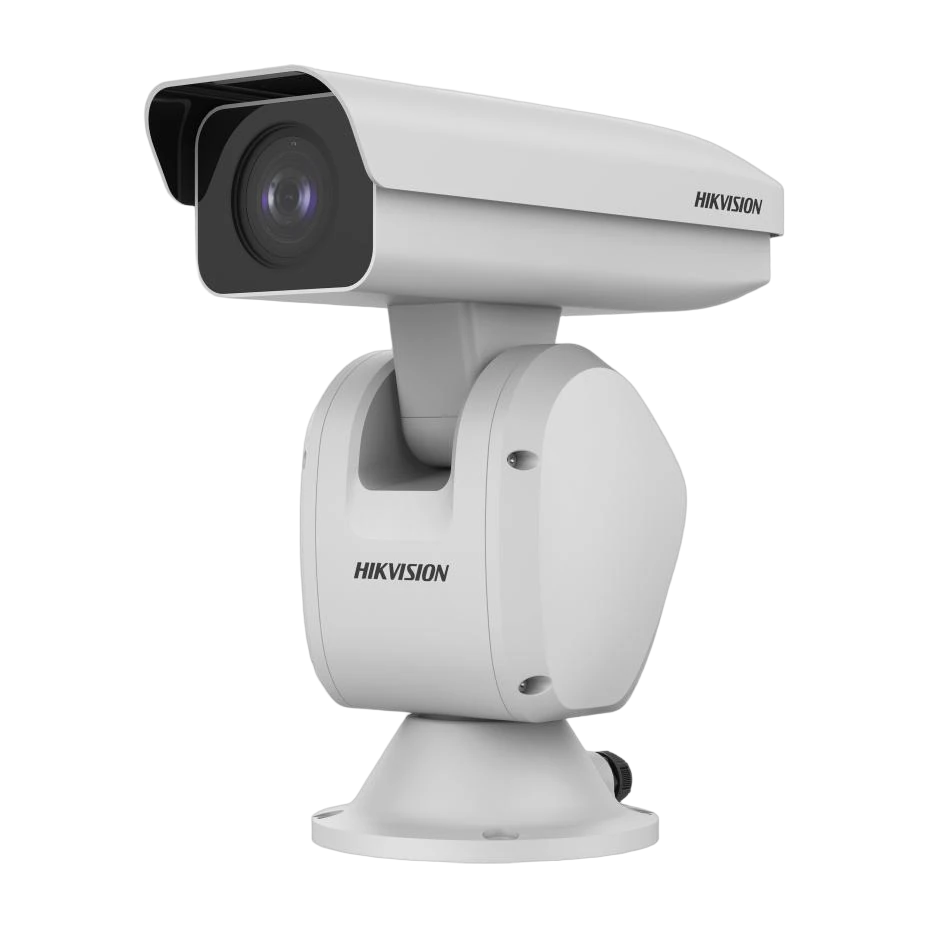

DS-2DY7236IX-A(T5) Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DY7236IX-A(T5) is a 7-inch, 2MP network PTZ (pan-tilt-zoom) camera designed for long-range perimeter and area monitoring. It uses a 1/1.8″ progressive scan CMOS sensor to deliver up to 1920×1080 resolution at 30 fps. For challenging lighting conditions, the camera supports 120 dB WDR along with HLC, BLC, 3D DNR, Defog, and regional exposure/focus features to improve image clarity across varying scenes.
For extreme reach, the PTZ lens offers 36× optical zoom with 16× digital zoom, and an IR illuminator supplementing up to 150 m for night-time visibility. Day/night operation supports switching modes including auto and schedule. Video compression efficiency is supported via H.265+/H.265, helping reduce bandwidth while maintaining detail.
A wide set of PTZ functions is included such as 360° endless pan, auto flip tilt, 300 presets, and multiple scan modes (patrol scan, pattern scan, auto scan, tilt scan, random scan, frame scan and panorama scan). Smart features include DORI-based detection/recognition distances, face capture (up to 10 faces simultaneously), and smart event functions like line crossing and intrusion detection. The camera is built for outdoor installation with IP66 protection and is available as model DS-2DY7236IX-A(T5).
Key Features
- 7-inch 2MP PTZ network positioning system
- 1/1.8″ progressive scan CMOS sensor
- Up to 1920×1080 @ 30 fps
- 36× optical zoom, 16× digital zoom
- Min. illumination: Color 0.005 Lux (F1.6, AGC ON); B/W 0.001 Lux (F1.6, AGC ON); 0 Lux with IR
- 120 dB WDR with HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus
- IR supplement light range up to 150 m (smart supplement light supported)
- H.265+/H.265 video compression support
- Pan 360° endless; Tilt from +40° to -90° (auto flip)
- 300 presets; 8 patrols; 4 pattern scans
- 3D positioning, PTZ status display
- Face capture: detect up to 10 faces simultaneously
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
Up to 1920×1080 at 30 fps.
36× optical zoom (with 16× digital zoom).
Up to 150 m IR distance.
Yes, it supports 120 dB WDR.
300 presets.
Yes. It can detect up to 10 faces at the same time and output the best face picture.
