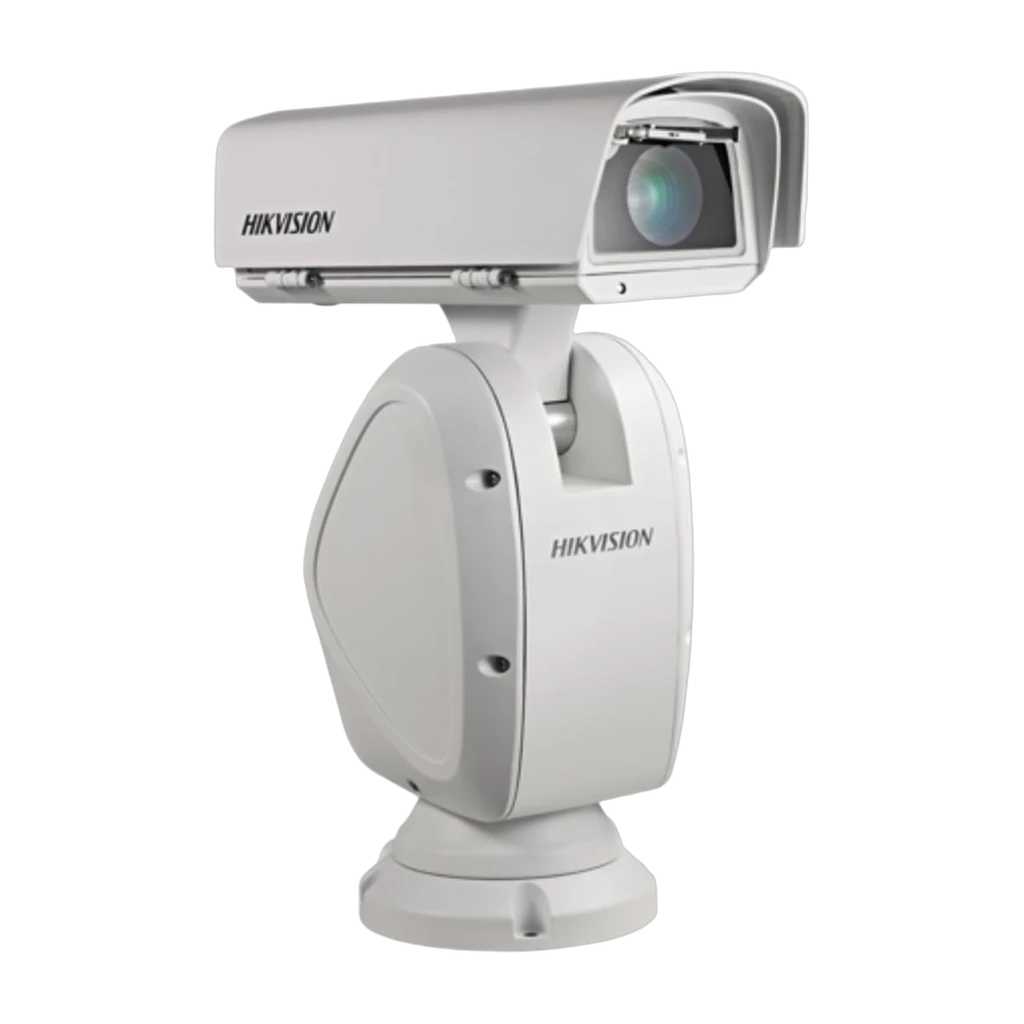

DS-2DY9250X-A(T5) Hikvision PTZ Dome IP Camera

The Hikvision DS-2DY9250X-A(T5) is a 2MP PTZ (pan-tilt-zoom) network positioning system designed for long-range surveillance with detailed full HD capture. It features a 1/1.8″ progressive scan CMOS sensor delivering up to 1920×1080 resolution. For low-light performance, the datasheet specifies minimum illumination of 0.005 Lux in color (F1.2, AGC ON) and 0.001 Lux in black-and-white (F1.2, AGC ON), supporting day/night operation via ICR.

With powerful optical zoom, the camera provides 50× optical zoom and 16× digital zoom, while PTZ movement supports 360° pan and a tilt range of +40° to -90°. Advanced image processing includes 140 dB WDR for high-contrast scenes, along with 3D DNR, HLC, and BLC. Electronic Image Stabilization (EIS) is supported using a built-in gyroscope.

For weather resilience, it includes a rain-sensing auto wiper to help maintain image clarity in wet conditions. Audio and smart analytics are supported through face capture (up to 30 faces simultaneously) plus smart events such as intrusion detection, line crossing, region entrance/exiting, unattended baggage, and object removal. The camera supports H.265+/H.265 video compression for efficient bandwidth usage. Network compatibility includes multi-protocol support, up to 20 channels simultaneous live view, and secure access controls. Power is 24 VAC and the unit is rated IP66 with lightning and surge protection.
