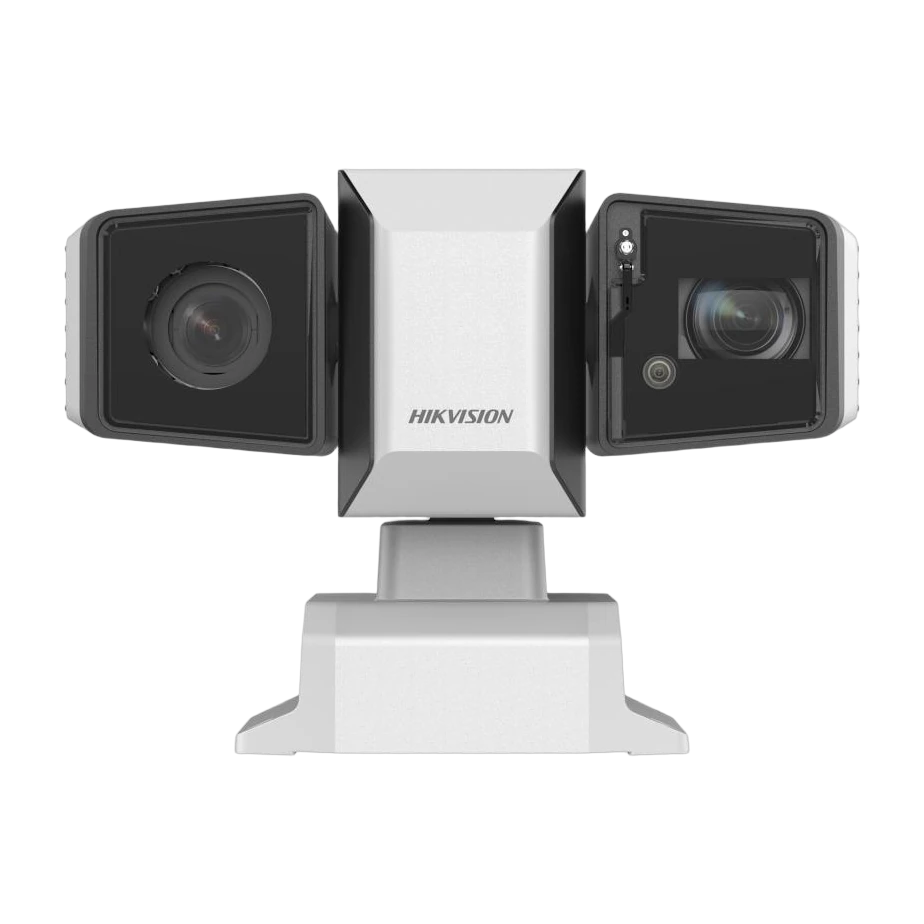

DS-2DY9C260LXG-LWY/12 Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2DY9C260LXG-LWY/12 is a 2MP PTZ (network) laser positioning camera designed for long-range surveillance with high detail. It uses a 1/1.2″ progressive scan CMOS for the PTZ channel and supports up to 1920 × 1080 resolution. For coverage flexibility, the camera offers 60× optical zoom with 16× digital zoom, enabling wide-area monitoring while still capturing fine details when zoomed in.
Built for challenging lighting, the camera features DarkFighter 2.0 low-light performance and 150 dB AWDR technology to help maintain clear images against strong back light. Image stabilization includes a built-in gyroscope for stable output (PTZ channel uses OIS), improving smoothness during movement. Optical defog and multiple image enhancements are supported, including BLC/HLC and 3D DNR.
For night operation, the camera supports an IR laser illuminator (default off) with an IR laser range up to 1000 m, plus Smart Supplement Light. PTZ capabilities include -90° to 90° tilt, 360° pan, 3D positioning, and extensive preset/pattern/patrol scanning functions. It also includes VR Panorama support and Smart Pan-Tilt Correction to simplify PTZ operation.
With ONVIF and Hikvision iVMS-4200 compatibility, the DS-2DY9C260LXG-LWY/12 is suitable for perimeter and large-area applications requiring reliable positioning and strong low-light performance.
Key Features
- 2MP PTZ network positioning system (up to 1920 × 1080)
- 1/1.2″ progressive scan CMOS for PTZ channel
- 60× optical zoom, 16× digital zoom
- DarkFighter 2.0 low-light performance
- 150 dB AWDR for clear imaging against strong back light
- Built-in gyroscope for stable image output
- OIS (PTZ channel) image stabilization; EIS (panoramic channel)
- VR Panorama / VR-Assisted Live View (360° virtual reality panorama map)
- Smart Pan-Tilt Correction
- IR laser illuminator (default: off) with range up to 1000 m
- Smart Supplement Light: Yes
- PTZ movement: -90° to 90° tilt, 360° pan; configurable pan speed up to 100°/s
- 3D positioning: Yes
- Presets: 300; patrol scan: 8; pattern scan: 4
- Defog: Optical defog
- Wiper: Yes
- Protection rating: IP67; IK10 (except lens)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
Up to 1920 × 1080 resolution for the PTZ channel.
60× optical zoom and 16× digital zoom.
DarkFighter 2.0.
Yes. It has an IR laser with a range up to 1000 m and supports Smart Supplement Light.
Pan: 360°. Tilt: -90° to 90°.
Yes. It has IP67 protection and IK10 (except lens) ratings, and includes wiper support.
