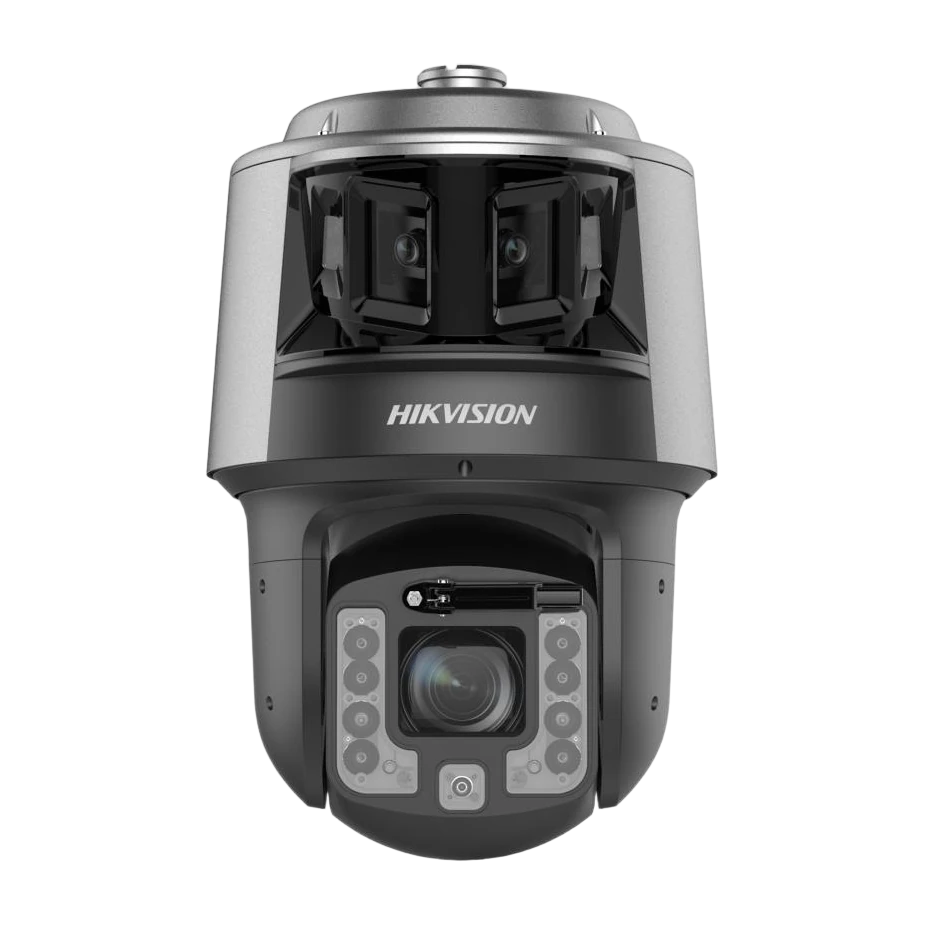

DS-2SF7C425MXG2/LM-ELWY/26 Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2SF7C425MXG2/LM-ELWY/26 is a DeepinViewX TandemVu 7C Series network PTZ speed dome designed for long-range perimeter and scene protection. It combines a panoramic channel with a PTZ channel to capture a large area with fine detail, supporting 6 MP panoramic resolution and 4 MP PTZ resolution for flexible monitoring. For low-light performance, the camera features 24/7 color imaging using Hikvision DarkFighter technology, delivering strong visibility even in dark environments. Smart low-light lighting is provided via bullet and IR/white light supplement modes, with hybrid light support up to 60 m (white light) and an IR range up to 400 m for the PTZ channel.
The dome offers advanced PTZ functionality including 25× optical zoom and 16× digital zoom, with smart pan-tilt correction to improve positioning accuracy. It supports 300 presets and patrol/pattern scan operations, along with 3D positioning and PTZ status display. Deep learning functions are built in for multiple target types including human, face, and vehicle detection, as well as perimeter protection and scenario-aware object detection. Connectivity and usability are supported through standard Hikvision APIs, multi-stream H.265/H.264 compression, and simultaneous live view up to 20 channels. With IP67 vandal-resistant (IK10 excluding glass window) construction, the camera is suitable for demanding outdoor security installations.
Key Features
- Dedicated large scale AI model for perimeter protection
- Panoramic channel: 6 MP resolution; PTZ channel: 4 MP resolution
- 24/7 colorful imaging and excellent low-light performance with DarkFighter technology
- Hybrid night view with up to 60 m hybrid light distance (white light) and 400 m IR distance (PTZ)
- PTZ zoom: 25× optical and 16× digital
- Bullet channel tilt adjustable from 12° to 24°
- Vandal resistant and weatherproof: IP67 and IK10 (excluding glass window)
- Deep learning functions
- Smart Pan-Tilt Correction
- 300 presets; 8 patrols; pattern scan support
- Face detection and face comparison (face libraries support)
- Road traffic and vehicle detection with license plate recognition (checkpoint scenario)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The datasheet specifies an IR distance of up to 400 m for the PTZ channel.
The PTZ channel supports 25× optical zoom and 16× digital zoom.
Yes. It supports 24/7 colorful imaging with DarkFighter technology.
It is rated IP67 for water/dust resistance and IK10 for vandal resistance (excluding the glass window).
The PTZ supports 300 presets.
Yes. It supports face capture (up to 30 faces simultaneously) and face comparison with up to 10 face libraries and up to 150,000 faces total.
