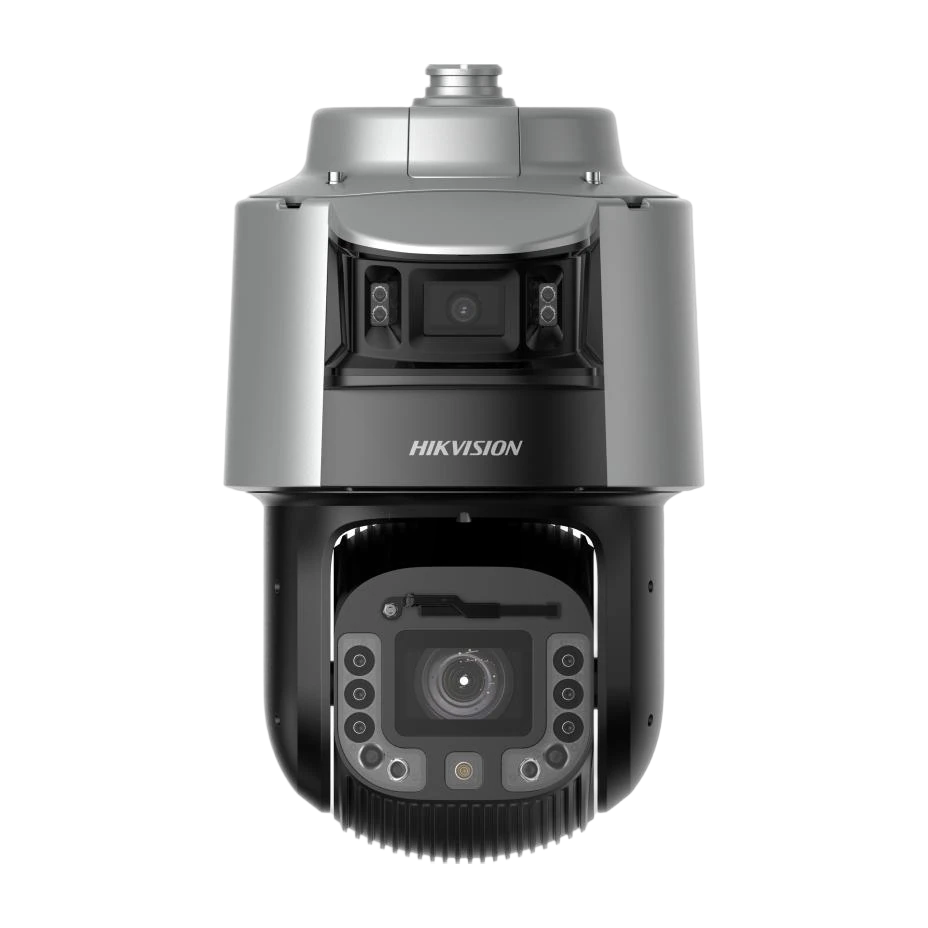

DS-2SF8C442MXG1-EL(W)(Y)/14 Hikvision PTZ Dome IP Camera
Product Overview
The Hikvision DS-2SF8C442MXG1-EL(W)(Y)/14 is a high-performance TandemVu 8C Series 4MP 42X PTZ speed dome designed for wide-area surveillance with detailed imaging. It features a dual-channel approach: a 4MP bullet channel and a 4MP PTZ channel, both capable of high-resolution capture up to 2688 × 1520. For all-day monitoring, the device supports 24/7 colorful imaging with DarkFighter 2.0 technology, delivering excellent low-light performance.
For long-distance viewing, the PTZ channel offers 42× optical zoom and 16× digital zoom, with lens focal length of 6 to 252 mm. The system provides extensive coverage through pan rotation up to 360° and tilt ranging from -20° to 90° (bullet channel tilt adjustable from 7° to 17°). Night visibility is enhanced by smart supplementary lighting, supporting white light up to 30 m and IR up to 300 m.
The dome is built for harsh environments with an IP67 weather rating and IK10 vandal resistance (excluding the glass window), plus features such as WDR and defog for improved image quality. It also supports deep learning functions including perimeter protection and face capture/recognition, and offers multiple streams, advanced video compression (H.265/H.265+), audio alarm capabilities, and robust networking/security features (ONVIF and TPM 2.0).
Key Features
- TandemVu 8C Series 4 MP 42X DarkFighter Network Speed Dome
- 4MP resolution for both bullet channel and PTZ channel (max 2688 × 1520)
- 42× optical zoom and 16× digital zoom (PTZ channel)
- 24/7 colorful imaging and excellent low-light performance with DarkFighter 2.0
- Smart Supplement Light: white light up to 30 m and IR up to 300 m
- Wide dynamic range: 120 dB (bullet) / 150 dB (PTZ)
- Water and dust resistant IP67 and vandal resistant IK10 (excluding glass window)
- Deep learning support (Perimeter Protection and Face Capture/Comparison)
- Face capture: up to 30 faces simultaneously; uploads face images with background and closed-up face pictures
- Audio visual alarm: white light flashing and audible warning triggered by events
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
It uses DarkFighter 2.0 technology and supports color imaging in low light.
The datasheet specifies white light range up to 30 m.
The datasheet specifies IR range up to 300 m.
The PTZ channel provides 42× optical zoom (plus 16× digital zoom).
Yes. It has IP67 water and dust resistance and IK10 vandal resistance (excluding the glass window).
Yes. It supports face capture (up to 30 faces simultaneously) and face comparison with encrypted face libraries.
