DS-2XS6K01-C36S80 Hikvision Box IP Camera
Product Overview

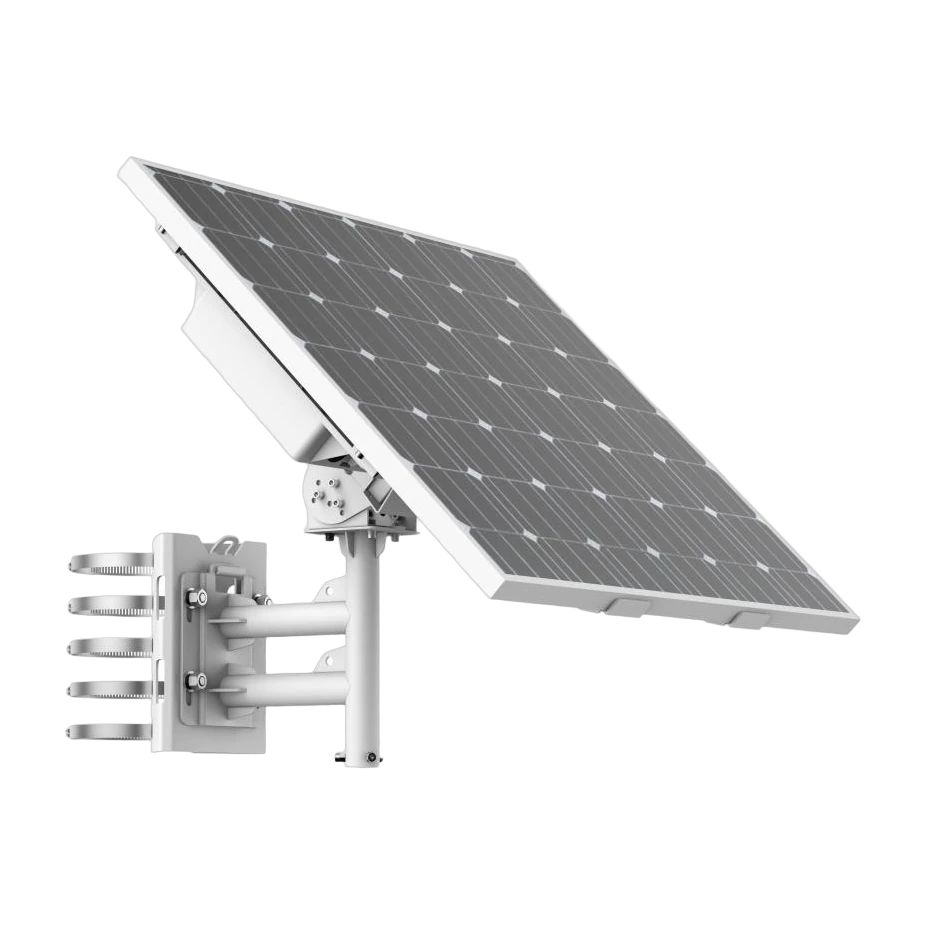

The Hikvision DS-2XS6K01-C36S80 Solar Power Kit is designed to provide a complete solar power solution for compatible Hikvision solar-powered security camera systems. It features an 80 W photovoltaic panel paired with a 360 Wh chargeable lithium battery (90 Wh per battery module). The system supports advanced battery management functions including battery display, protection for high/low temperatures, charge/discharge protection, low-battery sleep protection, and remote wakeup.
For installation flexibility, the kit includes an RS-485 interface (half duplex) intended to connect to a Hikvision Solar Power 4G Network Camera Kit. Power output is rated at 9 to 12.6 VDC with a maximum of 30 W using two Ø 5.5 mm coaxial power plugs.
Built for outdoor deployment, the kit is water and dust resistant with an IP66 protection rating, and it is rated for wind resistance up to a 12-level standard, supporting wind speeds up to 40 m/s. The battery charging/discharging operating temperature ranges are listed from -20 °C to 45 °C for charging and -20 °C to 60 °C for discharging. The battery is specified for more than 500 cycles, supporting reliable long-term operation.

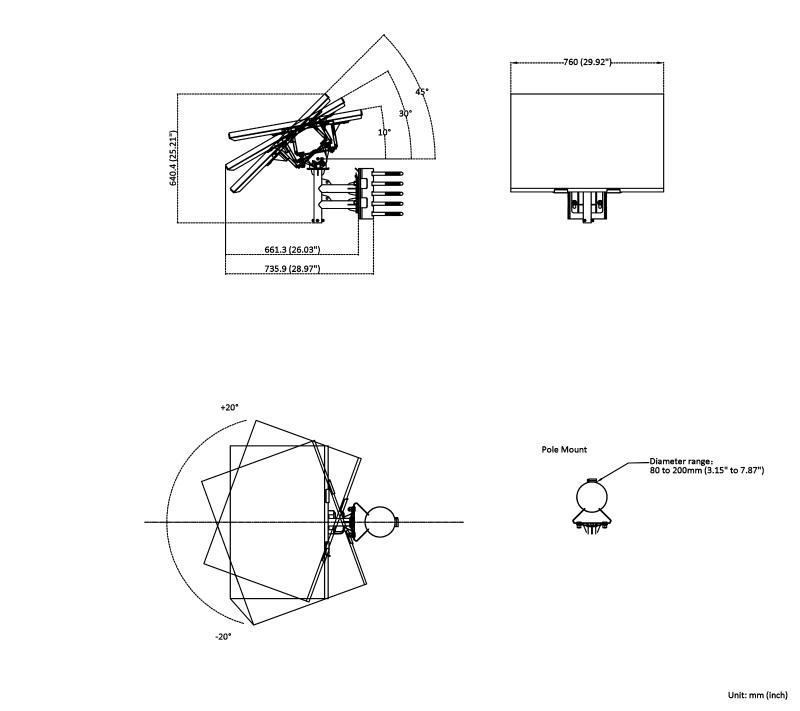

Dimensions are 640.4 mm × 735.9 mm × 760 mm after full assembly, with an approximately 24 kg kit weight (and about 30.005 kg with packaging).
Key Features
- 80 W photovoltaic panel and 360 Wh chargeable lithium battery
- Battery management: battery display, high/low temperature protection
- Charge-discharge protection, low-battery sleep protection, and remote wakeup
- RS-485 interface (half duplex) for connection to Solar Power 4G Network Camera Kit
- Power output: 9 to 12.6 VDC, max. 30 W (2 × Ø 5.5 mm coaxial power plugs)
- IP66 water and dust resistance
- Wind resistance rating up to 40 m/s (12-level up to 40 m/s)
- Battery more than 500 cycles
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search now
Frequently Asked Questions
The kit uses a 360 Wh lithium battery (90 Wh for each battery).
It includes an 80 W photovoltaic panel.
Yes. It supports battery high-low temperature protection.
It provides 1 RS-485 (half duplex) interface to connect to the Solar Power 4G Network Camera Kit.
Power output is 9 to 12.6 VDC with a maximum of 30 W.
It has IP66 protection (water and dust resistant).
