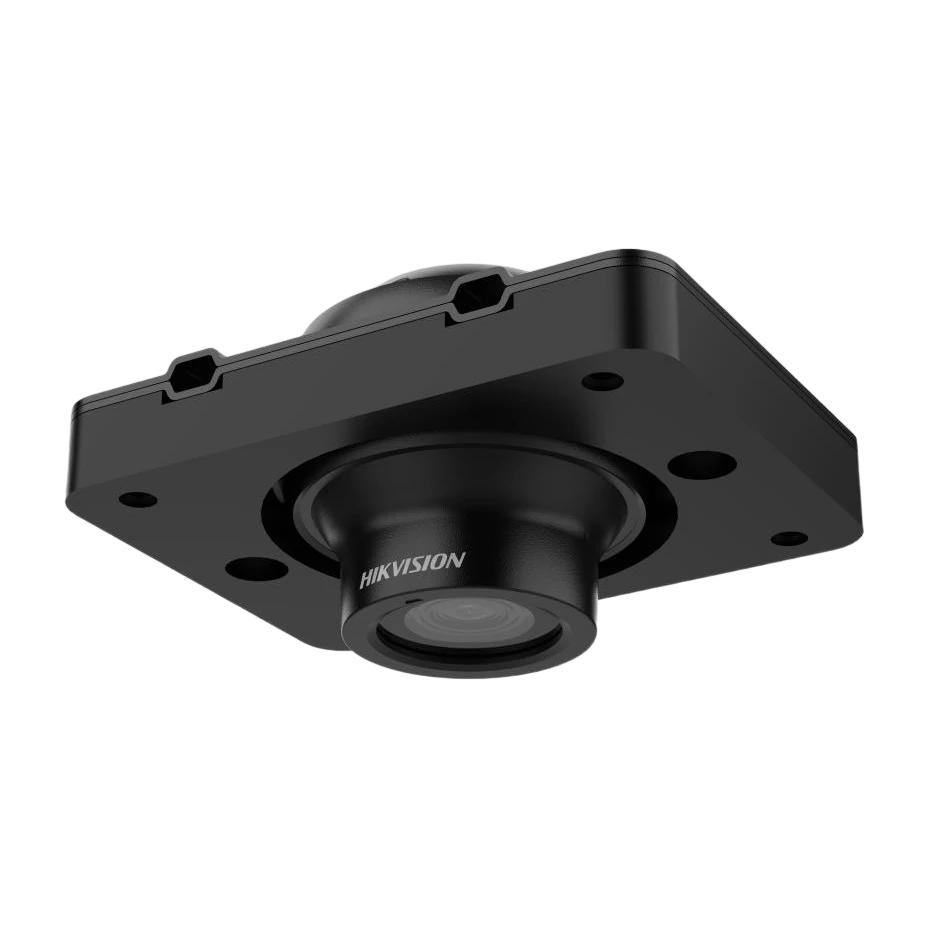

DS-2XV6445G0-Y Hikvision Box IP Camera
Product Overview
The Hikvision DS-2XV6445G0-Y is a fixed 4 MP IP network camera designed for harsh industrial environments such as gantry crane installations. It delivers maximum 2560 × 1440 resolution using a 1/2.8″ progressive scan CMOS sensor, with a measured minimum illumination of 0.005 Lux (Color, F1.2, AGC ON). The camera supports both PoE (IEEE 802.3af, Class 3) and 12 VDC power input, simplifying installation with a standard Ethernet connection.
Designed for durability and protection, the DS-2XV6445G0-Y offers IP68 water and dust resistance and includes top-level anti-corrosion protection. It is rated for NEMA 4X (NEMA 250-2018) with C5 corrosive protection, supporting use cases including coastlines, docks, and chemical plants. The camera uses a fixed lens configuration with optional 2.8 mm or 4 mm focal length variants, with defined field-of-view options for each.
For video delivery, it supports H.265/H.264 (and related efficiencies like H.265+ / H.264+) with multiple streams, region of interest (ROI), and target cropping. It also provides advanced imaging features including Wide Dynamic Range (WDR 120 dB), 3D DNR, and defog. Connectivity includes extensive network protocol support, user management, authentication and security features, and network storage options such as NAS (NFS/SMB/CIFS).
Key Features
- 4 MP max resolution: 2560 × 1440
- 1/2.8″ progressive scan CMOS sensor
- IP68 water and dust resistant
- Top-level anti-corrosion protection: NEMA 4X (NEMA 250-2018), C5
- Fixed focal lens (2.8 mm or 4 mm optional)
- Minimum illumination: 0.005 Lux (Color, F1.2, AGC ON)
- WDR 120 dB
- Supports PoE (IEEE 802.3af, Class 3) and 12 VDC ±20%
- Video compression: H.265/H.264, H.265+ / H.264+ (main stream)
- Multi-stream support (main/sub/third stream) and ROI
- Wide network protocol support and HTTPS/TLS security options
- Motion detection and smart events (e.g., scene change, defocus, unattended baggage, object removal)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 2560 × 1440 (4 MP).
It is an IP camera (network camera) and supports Ethernet/PoE.
It has IP68 protection and top-level anti-corrosion protection rated as NEMA 4X (NEMA 250-2018), C5.
Fixed focal lenses are available in 2.8 mm and 4 mm variants (field of view depends on the selected focal length).
12 VDC ±20% and PoE (IEEE 802.3af, Class 3).
Yes. It supports WDR 120 dB and image enhancement features such as BLC, HLC, 3D DNR, and defog.
