DS-2XV6646G0-LIZH(R)S Hikvision Box IP Camera
Product Overview

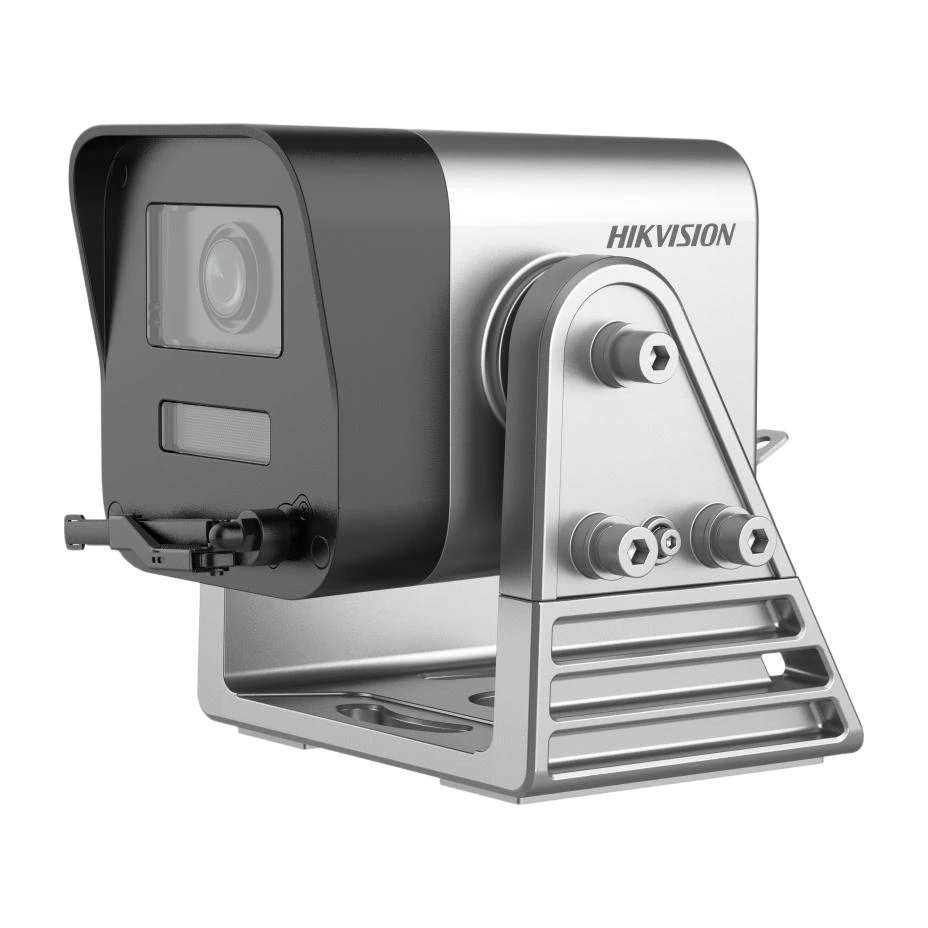

The DS-2XV6646G0-LIZH(R)S from Hikvision is a 4 MP gantry crane varifocal network camera designed for long-distance monitoring in challenging lighting and harsh environments. It uses a 1/1.8″ progressive scan CMOS sensor to deliver up to 2560 × 1440 resolution, with support for high-frame-rate streaming (up to 60 fps at 2560 × 1440 in the main stream). For demanding backlight scenes, it includes true 120 dB WDR. Night performance is powered by Hikvision DarkFighter technology, combined with IR and white light illumination for extended visibility.
The camera features a varifocal auto-iris lens (2.8 to 12 mm or 8 to 32 mm models) with wide field-of-view coverage and auto/semi-auto/manual focus options. For real-world installation, it supports Power over Ethernet (PoE) and also accepts 9 to 36 VDC, simplifying wiring on cranes and industrial structures. A built-in wiper (-R variant) helps remove water and dust from the screen to maintain image clarity in dusty or damp environments. Protection rating is IP68 for water and dust resistance.
Network and platform features include HEOP with 8 TOPS computing power and support for third-party application import. For security and integration, it supports ONVIF/ISAPI/SDK/ISUP and multiple streaming/compression options including H.265/H.264. Motion and smart events support perimeter protection and various detection and recording linkages.
Key Features
- 4 MP resolution (max. 2560 × 1440)
- DarkFighter low-light technology
- True 120 dB WDR
- Varifocal auto-iris lens (2.8–12 mm or 8–32 mm depending on model)
- Supplement lighting: IR and white light
- Night visibility up to 50 m (white light) and up to 80 m (IR) depending on lens range
- Low latency camera decoding with delay as low as 100 ms
- HEOP support with 8 TOPS computing power and third-party application import
- Built-in wiper (-R variant) to remove water and dust
- IP68 water and dust resistance
- PoE support (IEEE 802.3at) and 9 to 36 VDC power input
- Up to 20 channels simultaneous live view
- Security: HTTPS/TLS 1.2 & 1.3, 802.1X, password protection, watermark, IP filtering
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
It supports a maximum resolution of 2560 × 1440 (4 MP).
It uses Hikvision DarkFighter technology and supports IR and white light illumination.
Depending on lens range: up to 50 m with white light (2.8–12 mm) and up to 80 m with IR (8–32 mm).
Yes. It features true 120 dB WDR.
The camera is rated IP68 (IEC 60529).
Yes, the wiper is available on the -R variant (Wiper -R: Yes).
