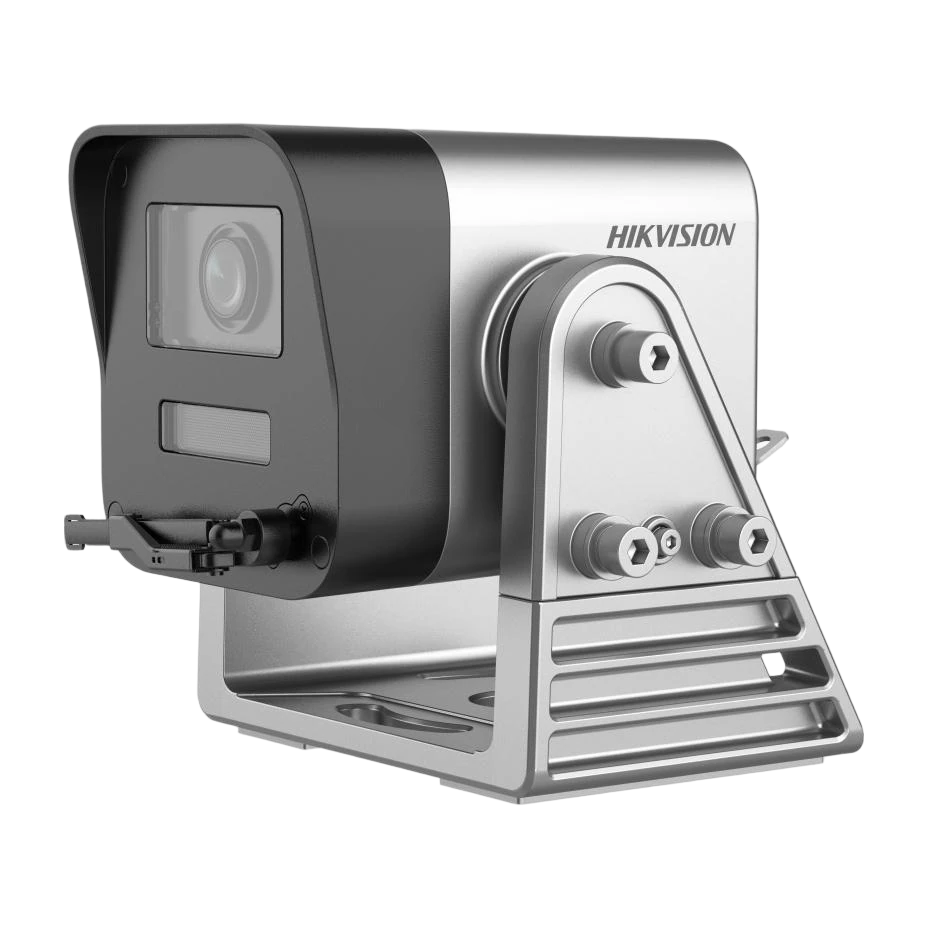

DS-2XV6686G0-LIZH(R)S Hikvision Box IP Camera

The Hikvision DS-2XV6686G0-LIZH(R)S is an 8MP varifocal gantry crane network camera designed for outdoor monitoring in harsh, dust- and water-exposed environments. It delivers high quality imaging using a 1/1.8″ progressive scan CMOS sensor with maximum resolution of 3840 × 2160, and supports ultra-low-latency camera decoding with a delay as low as 150 ms. For challenging lighting conditions, the camera features 120 dB true WDR to help maintain clarity when subjects are backlit.

For low-light performance, the camera uses DarkFighter technology and provides strong illumination options including built-in IR and white light. Depending on lens configuration, it supports IR ranges up to 80 m and white light ranges up to 50 m, enabling long-distance night identification. A built-in wiper (-R model) helps remove water and dust from the screen to sustain clear images in dusty or damp settings.

The camera is built for flexible installation and connectivity: Power over Ethernet (PoE) is supported along with 9 to 36 VDC power input. It also supports Hikvision Embedded Open Platform (HEOP) with 8 TOPS computing power for importing third-party applications. With an IP68 water and dust resistant rating, RS-485, audio I/O, and comprehensive event capabilities (including motion and deep-learning perimeter protection such as line crossing and intrusion for human/vehicle targets), this model is well suited to industrial perimeter and crane-side surveillance applications.
