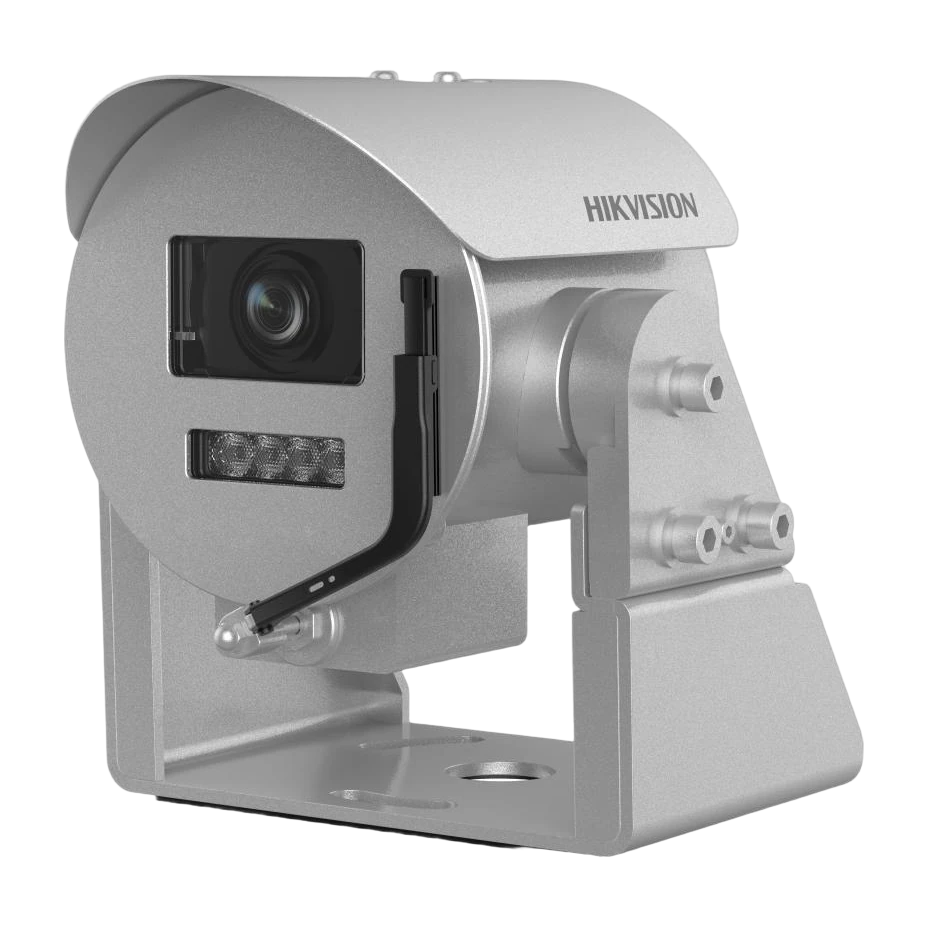

DS-2XV6A46G0-LIZH(R)SY(316L) Hikvision Box IP Camera
Product Overview
The Hikvision DS-2XV6A46G0-LIZH(R)SY(316L) is a 4 MP varifocal network (IP) camera designed for harsh, corrosive environments such as gantry cranes. It combines high-quality 4 MP progressive scan imaging with low-latency camera decoding (delay as low as 100 ms) and supports HEOP (Hikvision Embedded Open Platform) with 8 TOPS computing power for importing third-party applications.
For challenging lighting conditions, the camera features 120 dB true WDR to help maintain clear details under strong backlight. Day/night performance is enhanced by DarkFighter technology and an advanced IR/white-light illumination system for extended visibility at night. The camera offers a wide night view with IR up to 100 m (model dependent) and white light up to 50 m, while also supporting day/night modes including auto and schedule.
Built for durability, the camera includes a built-in wiper (-R variant listed in the title) to remove water and dust from the screen, improving image clarity in dusty or damp environments. The enclosure is made from 316L stainless steel with anti-corrosion coating and is rated IP68 for water and dust resistance. With PoE support and 9 to 36 VDC input options, installation is streamlined for industrial deployments where reliability and longevity are essential.
Key Features
- 4 MP high-quality imaging (2688 × 1520 max resolution)
- Varifocal lens support (2.8–12 mm / 4.8–120 mm options listed in datasheet models)
- Low-latency camera decoding with delay as low as 100 ms
- DarkFighter technology for excellent low-light performance
- 120 dB true WDR for clear imaging against strong back light
- Expansive night view: up to 50 m white light distance and up to 100 m IR distance (range depends on lens variant)
- HEOP support with 8 TOPS computing power; supports importing third-party applications
- Built-in wiper (-R) removes water and dust on the screen
- 316L stainless steel anti-corrosion enclosure
- IP68 water and dust resistant
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 2688 × 1520.
Yes. It supports DarkFighter for low-light performance, and uses IR and white light illumination.
It specifies up to 50 m for white light and up to 100 m for IR (depending on the lens variant).
Yes. It has a 316L stainless steel anti-corrosion enclosure and an IP68 water/dust rating.
Yes for the -R variant: a built-in wiper (-R) removes water and dust on the screen.
It includes 120 dB true WDR (Wide Dynamic Range).
