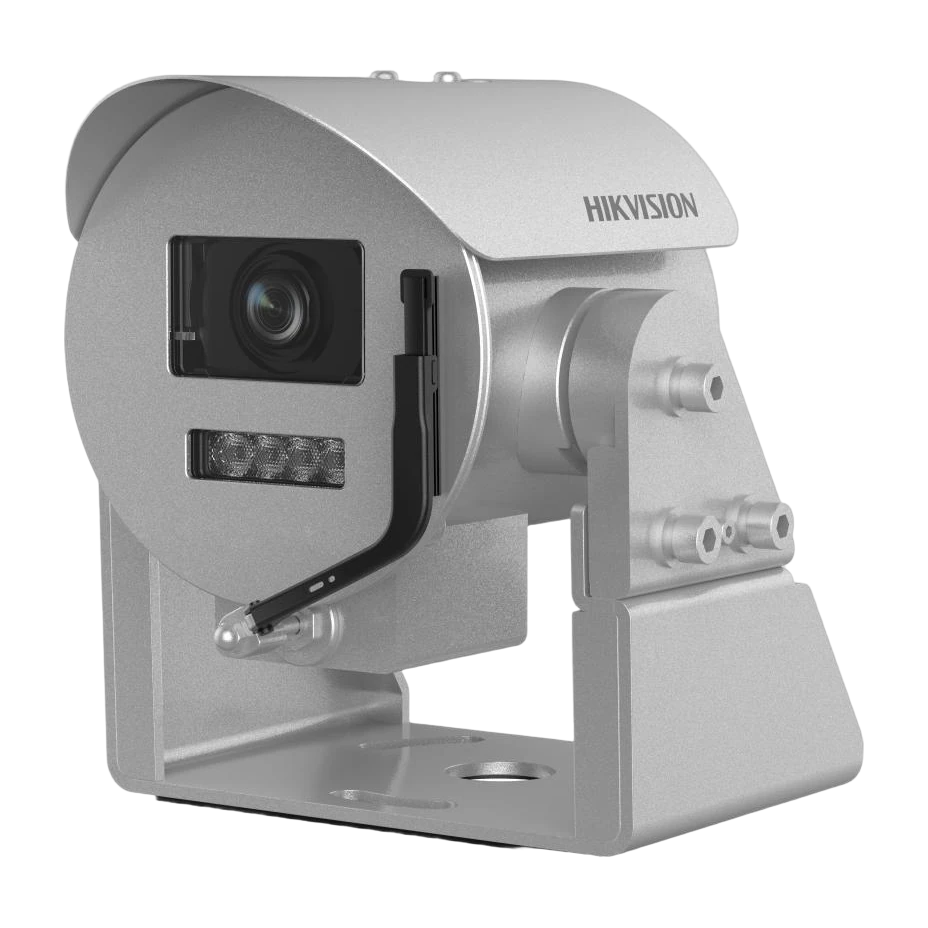

DS-2XV6A86G0-LIZH(R)SY(316L) Hikvision Box IP Camera
Product Overview
The Hikvision DS-2XV6A86G0-LIZH(R)SY(316L) is an 8MP varifocal network camera designed for harsh industrial environments. Using a 1/1.8″ progressive scan CMOS sensor, it supports up to 3840 × 2160 resolution and smooth real-time streaming at up to 50/60 fps depending on configuration. The camera is built for reliable performance in difficult lighting with DarkFighter technology for strong low-light imaging, 120 dB true WDR for clear views against backlight, and H.265/H.264 compression options to optimize bandwidth and storage.
For long-distance night viewing, it features expandable illumination with IR and white light. Depending on lens configuration, IR range can reach up to 80 m, while white light support extends up to 50 m. It also includes day/night capability with an IR cut filter and electronic image stabilization (EIS). A built-in (-R) wiper helps keep the screen clear in dusty or damp areas.
Connectivity and deployment are simplified with Power over Ethernet (PoE) and a 9 to 36 VDC power input option. The camera supports Hikvision Embedded Open Platform (HEOP) with 8 TOPS computing power, enabling local AI features and third-party application integration. The 316L stainless steel enclosure and IP68 rating provide water and dust resistance, while anti-corrosion protection is intended for demanding coastal and industrial applications.
Key Features
- 8MP max resolution (3840 × 2160) with varifocal lens support (2.8–12 mm or 8–32 mm)
- DarkFighter technology for excellent low-light performance
- 120 dB true WDR for clear imaging in strong backlight
- Low-latency video with camera decoding delay as low as 150 ms
- Night illumination: IR up to 80 m and white light up to 50 m (8–32 mm model)
- Day/night functionality with IR cut filter
- HEOP embedded platform with 8 TOPS computing power and third-party app support
- Built-in wiper (-R) removes water and dust for clearer images in dusty/damp environments
- 316L stainless steel anti-corrosion enclosure
- IP68 water and dust resistant rating
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 3840 × 2160 (8MP).
Yes. It uses DarkFighter technology and provides night imaging with IR and white light.
For the 8–32 mm lens option, IR can reach up to 80 m and white light up to 50 m.
It supports 120 dB true WDR.
Yes. It has a 316L stainless steel anti-corrosion enclosure and is IP68 water/dust resistant.
The “-R” variant includes a built-in wiper to remove water and dust on the screen.
