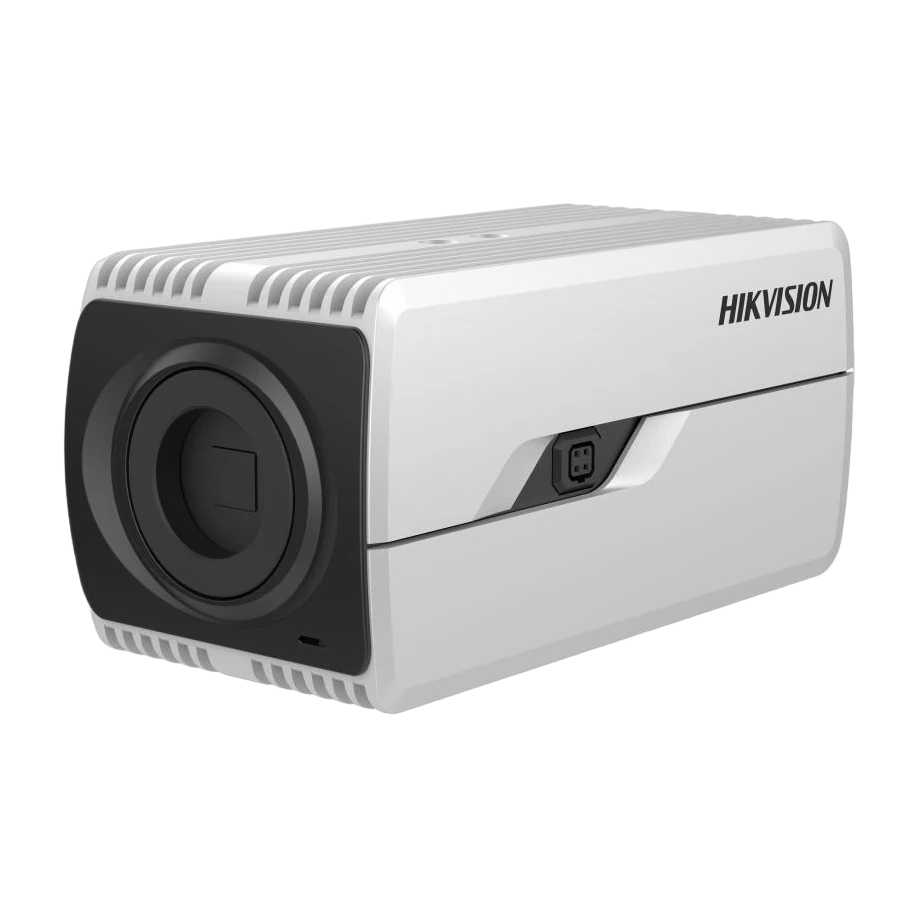

IDS-2CD7046G2-AP Hikvision Box IP Camera
Product Overview
The Hikvision iDS-2CD7046G2-AP DeepinView 4MP varifocal box IP camera delivers high-quality imaging with a 1/1.8″ progressive scan CMOS sensor and a maximum resolution of 2688 × 1520. Designed for security and long-term reliability, it supports advanced image processing including 150 dB AWDR for clear detail in challenging lighting and DarkFighter 2.0 for excellent low-light performance. For efficient recording and storage, it uses H.265+ compression (with H.265/H.264 options) and provides five configurable streams to suit different application needs.
Built-in audio support includes a built-in microphone for real-time audio security, and the camera also provides 1-line input/output and alarm I/O for integration with external devices. It includes on-board microSD storage (up to 1 TB) and supports up to 20 channels of simultaneous live view, along with ONVIF interoperability (Profiles S/G/T/M). The iDS-2CD7046G2-AP is powered via 12 VDC or PoE (802.3at).
Deep learning functions enable rich perimeter and analytics capabilities: face capture (up to 120 faces simultaneously with best/quick shot), perimeter protection (line crossing, intrusion, region entrance/exit), multi-target-type detection (face, human body, vehicle), and advanced people counting and queue management. Additional features include heat map generation, PPE detection (hard hat), activity analysis (smoking and phone calls), and Face Comparison with encrypted face libraries.
Key Features
- 4MP max resolution (2688 × 1520)
- DarkFighter 2.0 low-light performance
- 150 dB AWDR for clear imaging against strong backlight
- H.265+ compression to save bandwidth and storage
- 5 streams for flexible application support
- Built-in microphone (mono audio)
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
- Deep learning: Face Capture (up to 120 faces simultaneously; up to 40 face pictures per frame; up to 10 fps uploads)
- Deep learning: Perimeter Protection (line crossing, intrusion, region entrance, region exiting)
- Multi-target-type Detection: detects/captures face, human body, and vehicle
- Multi-Dimension People Counting with dynamic deduplication and reporting
- Queue Management and regional people queuing/waiting time detection with reports and raw data export
- Heat Map (space and time heat map line chart)
- PPE Detection (hard hat/reflective clothing detection; alarms when not worn)
- Activity Analysis for smoking and phone calls
- On/Off Duty Detection and absence detection
- PIR-style audio event detection functions listed: scream/crying, gunshot and explosion sound detection
- 5-face/human/vehicle deep feature extraction (7 face features, 13 human body features, 2 vehicle features)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
2688 × 1520 (4MP).
Yes. It uses DarkFighter 2.0 technology and specifies very low minimum illumination levels.
It supports 150 dB AWDR technology for clear imaging against strong backlight.
Main stream supports H.265+/H.265/H.264+/H.264; other streams support H.265/H.264/MJPEG combinations.
Yes. It has a built-in microphone and supports mono audio.
Face Capture with best shot/quick shot options, support for face libraries (face comparison), and encrypted face library support.
