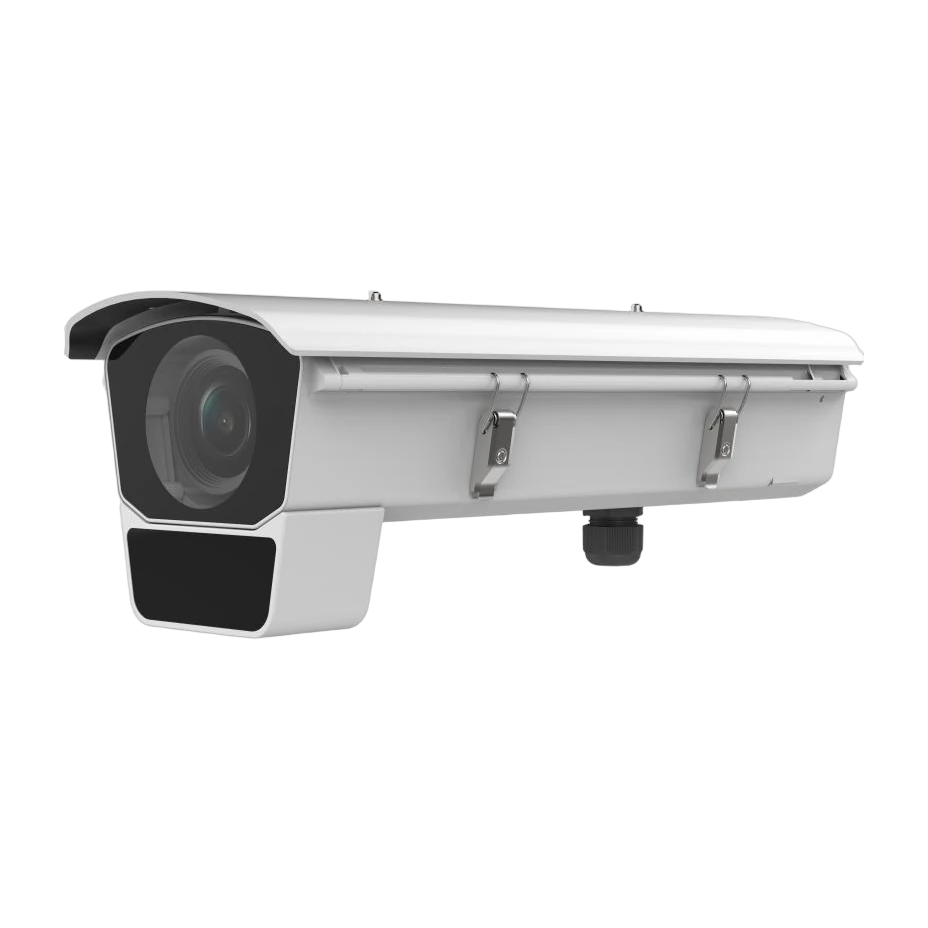

IDS-2CD7046G2/E-IHSYR Hikvision Box IP Camera
Product Overview
The Hikvision iDS-2CD7046G2/E-IHSYR is a 4MP DeepinView varifocal box IP camera designed for security monitoring in demanding indoor or outdoor environments. It uses a 1/1.8″ progressive scan CMOS sensor with a maximum resolution of 2688 × 1520 and offers varifocal motorized lens options of 3.8 to 16mm or 11 to 40mm (CS mount). For low-light performance, the camera supports DarkFighter 2.0 with IR illumination (850 nm) and smart supplemental light, providing up to 120m IR range on the 11 to 40mm lens configuration.
To handle challenging lighting conditions, it features 150 dB SWDR (Wide Dynamic Range) for clear imaging against strong backlight. Video is efficiently compressed using H.265+ to help save bandwidth and storage, while the camera supports multiple concurrent streams (up to 5) to suit different application needs.
Deep learning capabilities include face capture (best shot/quick shot, multi-face capture), perimeter protection (line crossing, intrusion, region entrance/exit), and multi-target-type detection for faces, humans, and vehicles. It also supports advanced people counting tools such as queue management, regional people counting, heat maps, and on/off duty detection, plus PPE detection for hard hat compliance.
Built for robust field installation, the camera is rated IP66 (water and dust resistant) and NEMA 4X with anti-corrosion protection, and includes features such as built-in G-sensor vibration detection and a built-in power meter for historical power statistics.
Key Features
- 4MP (2688 × 1520) imaging
- Varifocal motorized lens options: 3.8–16mm or 11–40mm
- DarkFighter 2.0 low-light performance with IR illumination (850 nm)
- 150 dB WDR/SWDR for strong backlight clarity
- H.265+ compression for bandwidth and storage efficiency
- Up to 5 streams for flexible deployment
- Multiple deep learning functions: face capture, perimeter protection, multi-target-type detection
- ShotN technology to capture vehicles and humans of different speeds clearly
- High frame rate up to 4MP@60fps and 2MP@120fps (monitoring mode)
- Queue management and regional people counting with reports, reports export, and scheduled uploading
- Heat map (space heat map and time heat map line chart)
- PPE detection (hard hat) and hard hat alarm when not worn
- On/Off duty detection (absence/on-duty status and person number changes)
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
- Water and dust resistant IP66; corrosion resistant NEMA 4X
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The camera supports a maximum resolution of 2688 × 1520 (4MP).
It uses DarkFighter 2.0 technology with IR illumination.
IR supplementary light range is 80m for 3.8 to 16mm and 120m for 11 to 40mm.
Yes. It supports varifocal motorized lenses with optional 3.8 to 16mm and 11 to 40mm options.
Main stream supports H.265+/H.265/H.264+/H.264.
It is IP66 water/dust resistant and corrosion resistant with NEMA 4X.
