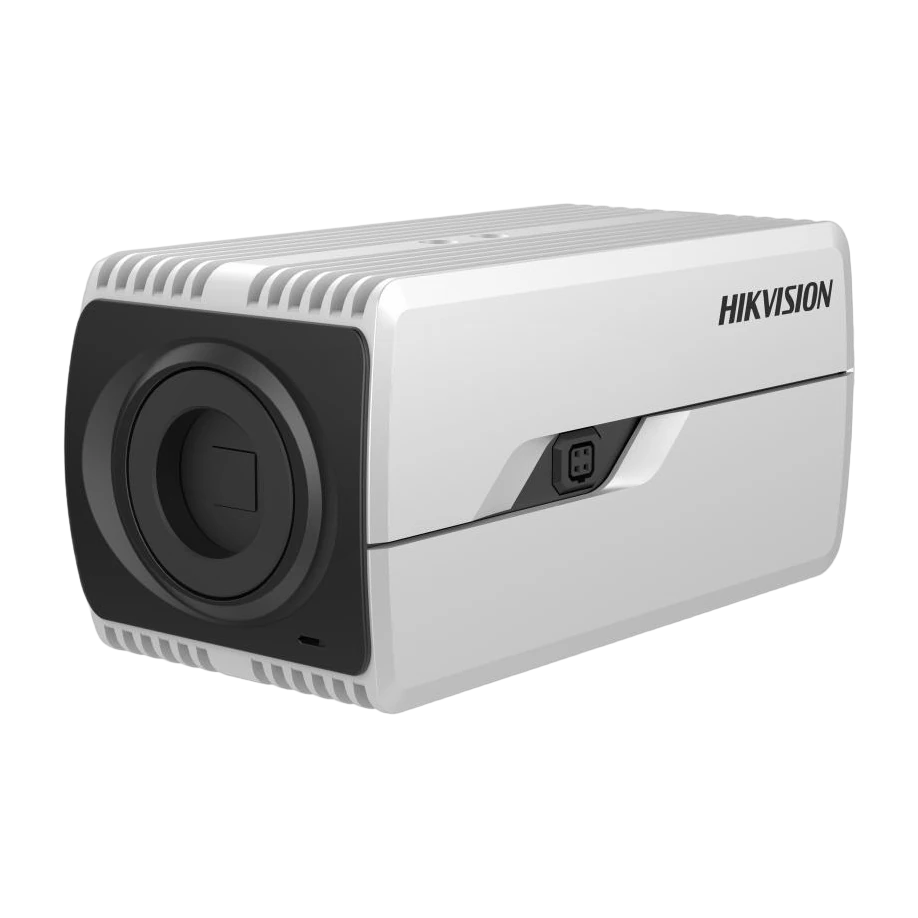

IDS-2CD7086G2-AP Hikvision Box IP Camera
Product Overview
The Hikvision iDS-2CD7086G2-AP is an 8MP DeepinView varifocal box IP camera designed for high-detail monitoring and advanced AI security. It uses a 1/1.8″ progressive scan CMOS sensor to deliver up to 3840 × 2160 (8MP) resolution. For low-light performance, the camera features DarkFighter 2.0 technology, with rated minimum illumination as low as 0.0005 Lux (color, F1.2, AGC ON) and 0.0001 Lux (B/W, F1.2, AGC ON). Visibility in challenging lighting is supported by 140 dB WDR (AWDR) to help produce clear images against strong backlight.
For efficient recording and streaming, the camera supports multiple streams (up to five) and H.265+ compression to help save bandwidth and storage. Frame rates support up to 8MP@60fps (monitoring mode) and 2MP@120fps. Video delivery supports up to 20 channels of simultaneous live view, with H.265+/H.265/H.264+ options depending on stream.
The embedded deep learning functions include face capture (best/quick shot, up to 120 faces detected and up to 40 captured per frame, and facial feature extraction), multi-target-type detection (face, human body, and vehicle), and perimeter protection (line crossing, intrusion, region entrance and exiting). People counting, queue management, heat map visualization, PPE detection (hard hat and reflective clothing), and on/off duty detection are also supported. A built-in microphone enables real-time audio security, while motion, tampering, glass break, gunshot/explosion sound, and other event alarms provide additional protection.
Key Features
- 8MP (3840 × 2160) max resolution with 1/1.8″ progressive scan CMOS
- DarkFighter 2.0 low-light performance
- 140 dB WDR (AWDR) for clear imaging in strong backlight
- H.265+ compression to save bandwidth and storage
- 5 streams for flexible applications
- Built-in microphone for real-time audio security
- DeepinView embedded AI features including face capture
- Perimeter protection: line crossing, intrusion, region entrance, and region exiting
- Multi-target-type detection: face, human body, vehicle
- Face capture: detects up to 120 faces; captures up to 40 faces per frame; uploads up to 10 face pictures per second
- Face comparison: up to 10 face libraries, up to 30,000 faces per library (150,000 total) with face library encryption
- People counting and queue management with reporting and data export
- Heat map (space heat map and time heat map line chart)
- PPE detection (hard hat and reflective clothing) with alarm when not worn
- High frame rate up to 8MP@60fps and 2MP@120fps (monitoring mode)
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
The maximum resolution is 3840 × 2160 (8MP).
It uses DarkFighter 2.0 technology.
Yes, it supports 140 dB WDR.
It supports H.265+/H.265/H.264+ for main stream and other stream-specific combinations listed in the datasheet (including H.265/H.264/MJPEG).
It supports people counting, queue management, and heat map visualization, including reports and data export.
Yes, it includes a built-in microphone for real-time audio security.
