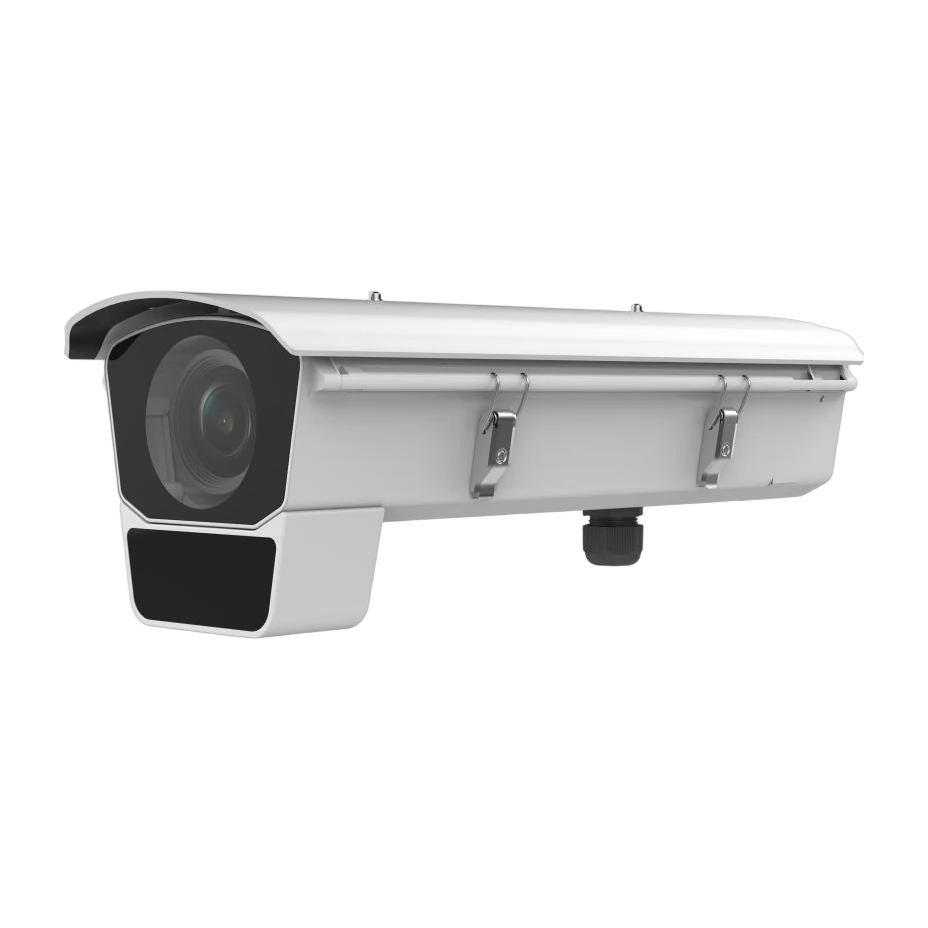

IDS-2CD7086G2/E-IHSYR Hikvision Box IP Camera
Product Overview
The Hikvision iDS-2CD7086G2/E-IHSYR is an 8MP DeepinView box IP network camera designed for secure, high-performance monitoring in demanding environments. It uses a 1/1.8″ progressive scan CMOS sensor and delivers a maximum resolution of 3840 × 2160, with fast high-frame-rate operation up to 8MP@60fps (and 2MP@120fps) under monitoring mode. For low-light scenes, it features DarkFighter 2.0 technology with IR illumination (850 nm) and a stated IR supplement light range up to 120 m (depending on lens configuration), supporting clear capture at night.
For challenging lighting conditions, the camera includes 140 dB AWDR (wide dynamic range) and supports multiple image enhancement features such as BLC/HLC, 3D DNR, defog, and distortion correction. Video compression is based on H.265+ to save bandwidth and storage, and the camera supports five streams for flexible integration.
Beyond core imaging, it includes embedded deep learning capabilities for face capture, perimeter protection, multi-target-type detection, and advanced people analytics such as queue management, regional people counting, heat maps, and on/off duty detection. Alarm and reporting can be integrated through common network protocols and APIs (including ONVIF profiles), while built-in security features help protect data and access.
With IP66 weather resistance and corrosion-resistant NEMA 4X (where specified), plus a range of industrial-grade operating conditions, this box camera is well suited to applications such as vehicle and people monitoring.
Key Features
- 8MP (3840 × 2160) max resolution with 1/1.8″ progressive scan CMOS sensor
- DarkFighter 2.0 low-light performance
- 140 dB AWDR for clear imaging in strong back light
- H.265+ efficient compression to save bandwidth and storage
- Up to 5 video streams for flexible applications
- High frame rate: up to 8MP@60fps and 2MP@120fps (monitoring mode only)
- Built-in IR supplement light (850 nm) with range up to 120 m (11 to 40 mm lens)
- Deep learning functions including Face Capture and Perimeter Protection
- People analytics: Queue Management, Regional People Counting, Heat Map, On/Off Duty Detection
- License plate recognition support
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
- Weather/dust resistant: IP66 and corrosion resistant NEMA 4X (with -Y variant referenced in datasheet)
Watch Product Videos
Watch real demos, setup guides, night-vision tests, and feature highlights for this model.
We’re doing our best to find this video and add it here. Until then, click below and see if you can find it before we do.
Search nowWhere to Find This Product
View trusted supplier listings, product references, and availability status for this model.
Frequently Asked Questions
It supports a maximum resolution of 3840 × 2160 (8MP).
It uses DarkFighter 2.0 technology.
The IR wavelength is 850 nm, with supplement light range up to 120 m for the 11 to 40 mm lens range.
Yes. It supports 140 dB AWDR.
It supports H.265+/H.265/H.264+ / H.264 (with different formats per stream).
The camera is water and dust resistant (IP66) and corrosion resistant (NEMA 4X) as described in the datasheet.
